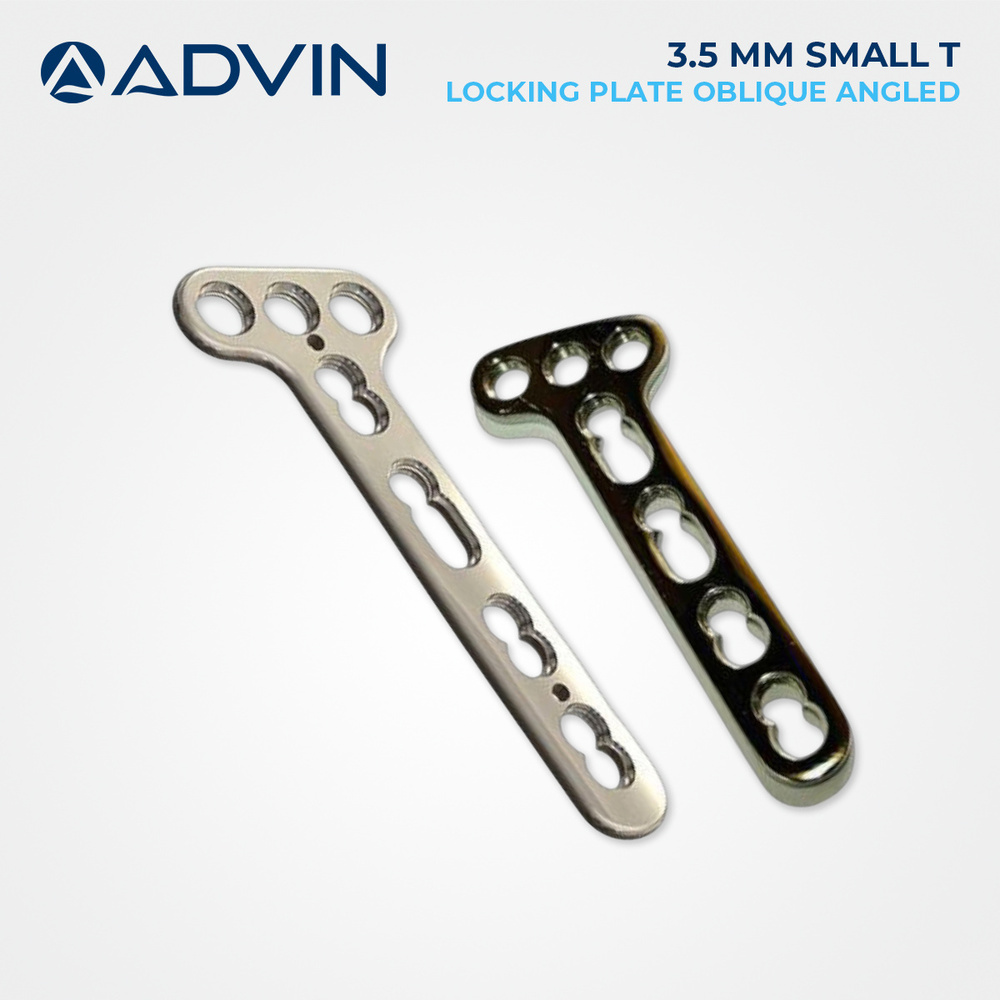

3.5mm small T locking plates oblique angled

Price 3 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

3.5mm small T locking plates oblique angled Specification

Usage Type
Single Use, Sterilizable

Features
T-shaped with oblique angled head, locking screw holes, anatomical contour, corrosion-resistant, high biocompatibility

Accuracy
Highly precise machining for anatomical fit

Storage Instructions
Store in a clean, dry, sterile environment

Measurement Range
Screw holes diameter 3.5mm

Shelf Life
5 years in sterile packaging

Function
Stabilization and fixation of small bone fragments

Instruments Type
Orthopedic Implant

Equipment Type
3.5mm Small T Locking Plates Oblique Angled

Material
Stainless Steel (usually medical grade 316L) or Titanium

Condition
New

Technology
CNC Precision Machining

Portable
Yes

Wall Mounted
No

Operating Type
Manual_assisted, Implantable

Use
Orthopedic bone fixation

Dimension (L*W*H)
Varies, typically Length: 30-70mm, Width: 17-20mm, Height/Thickness: 3.5mm

Weight
Approximately 10-30 grams depending on plate size

Color
Metallic (Silver or Grey)

Sterilization Method
Autoclave or Gamma radiation before use

Locking Screw Compatibility
3.5mm locking screws

Application
Used in distal radius, metacarpal, and small bone fractures

Profile Type
Low-profile for minimal soft tissue irritation

Edge Shape
Rounded edges for reduced tissue irritation

Packaging
Individually sterile-packed

Number of Holes
Typically 4 to 8 holes (varies by model)

Radiopacity
Radiopaque for intraoperative imaging

Surface Finish
Matte, polished or anodized (depending on material)

About 3.5mm small T locking plates oblique angled

The 3.5mm Small T Locking Plate Oblique Angled is commonly used in orthopedic trauma procedures to treat fractures in small and delicate bones. The oblique-angled T design offers better adaptability to anatomical variations, giving surgeons greater precision in fixation. Advin Health Care manufactures these plates with high-quality stainless steel or titanium to provide durability and long-lasting strength. This implant minimizes the risk of implant failure, promotes proper fracture alignment, and supports faster patient recovery. It is a reliable choice for surgeons aiming for consistent and effective clinical outcomes.

Advanced Features:

Oblique-angled T design for improved anatomical fit
Provides strong and stable fixation for small bone fractures
Made from medical-grade stainless steel or titanium
Available in different sizes to meet surgical requirements
Ensures reliable bone healing and surgical efficiency

Anatomically Contoured for Optimal Fixation

These plates feature a T-shape with an oblique angled head and anatomical contouring, promoting accurate placement over fractured regions. The low-profile and rounded-edge construction reduces the risk of soft tissue irritation, ensuring both comfort and stability during the healing process.

Advanced Materials and Precise Engineering

CNC precision machining is used to create each plate from corrosion-resistant stainless steel (316L) or titanium, resulting in a robust implant with high biocompatibility. The surface finishmatte, polished, or anodizedcontributes to durability, while the radiopaque property enhances intraoperative visualization.

Comprehensive Sterility and Packaging

Each T locking plate is individually packaged in sterile conditions using either autoclave or gamma radiation methodologies. With a shelf life of five years and clear storage instructions, users can be confident of product integrity and sterility prior to implantation.

FAQs of 3.5mm small T locking plates oblique angled:

Q: How is the 3.5mm Small T Locking Plate oblique angled used in orthopedic surgery?

A: The plate is used as an implant to stabilize small bone fractures, especially in the distal radius and metacarpals. Surgeons fix the plate over the fracture using compatible 3.5mm locking screws, ensuring anatomical alignment and stability during bone healing.

Q: What are the main benefits of using this T locking plate with an oblique angle?

A: The oblique angled T design allows for optimal bone coverage and improved fixation in anatomically challenging locations. The combination of a low-profile, rounded edges, and anatomical contour reduces soft tissue irritation, enhancing patient comfort and recovery outcomes.

Q: When should this plate be used for bone fixation?

A: This plate is indicated for cases involving fractures of the distal radius, metacarpal, or other small bones. It is suitable when secure and precise bone stabilization is required, particularly in situations where traditional plates may not provide optimal fit or stability.

Q: Where should the plates be stored before use?

A: Plates must be stored in a clean, dry, sterile environment to maintain sterility and product integrity. Always follow the provided storage instructions on the packaging to ensure product safety before use.

Q: What is the process for implanting the plate and how is sterility ensured?

A: Each plate is supplied individually sterile-packed after autoclave or gamma radiation sterilization. During surgery, the plate is placed on the bone at the fracture site and secured using 3.5mm locking screws. Sterility should be maintained throughout the procedure to prevent infection.

Q: Are these plates reusable or for single use only?

A: The 3.5mm Small T Locking Plates oblique angled are designed for single use only. Reusing the plate can compromise integrity and sterility, increasing the risk of complications.

Q: What are the features that enhance imaging and surgical accuracy during implantation?

A: The plates are radiopaque for clear intraoperative X-ray visualization, and crafted with highly precise CNC machining for anatomical compatibility. This enhances surgical accuracy and helps surgeons achieve optimal positioning and fixation.
