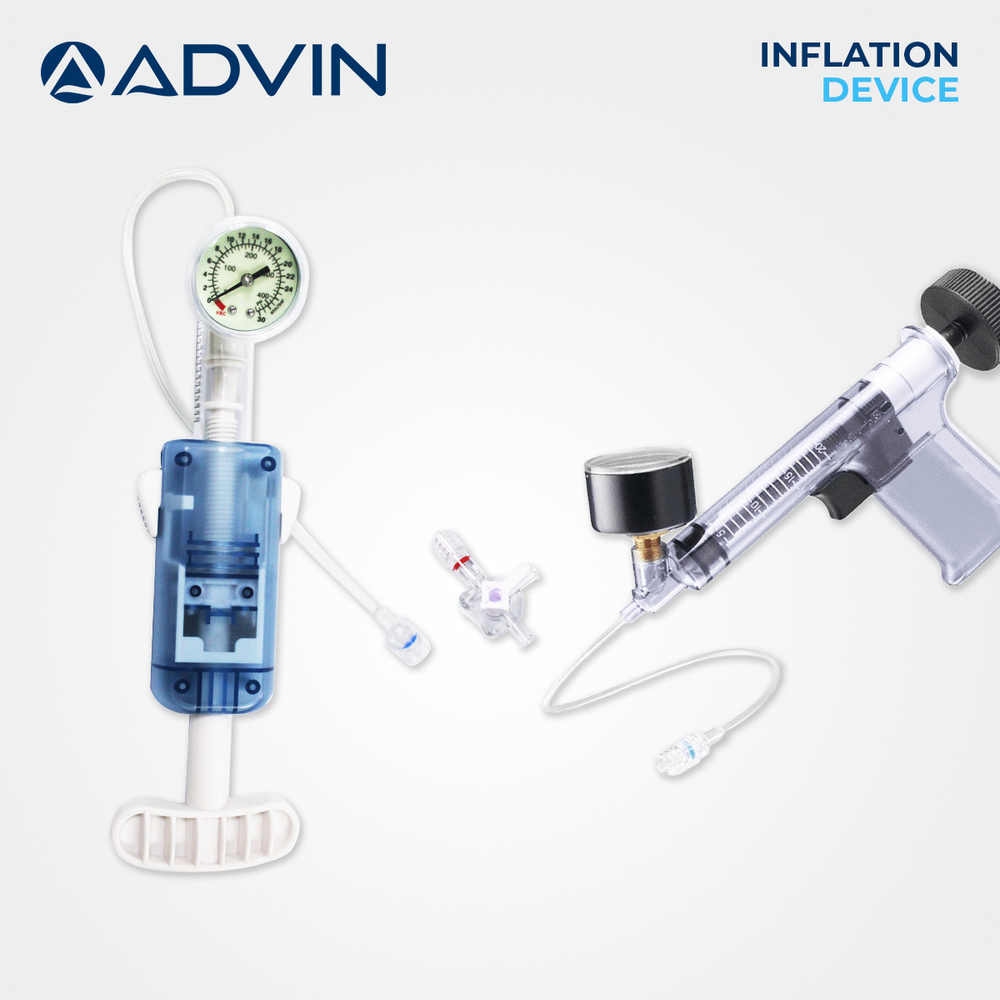

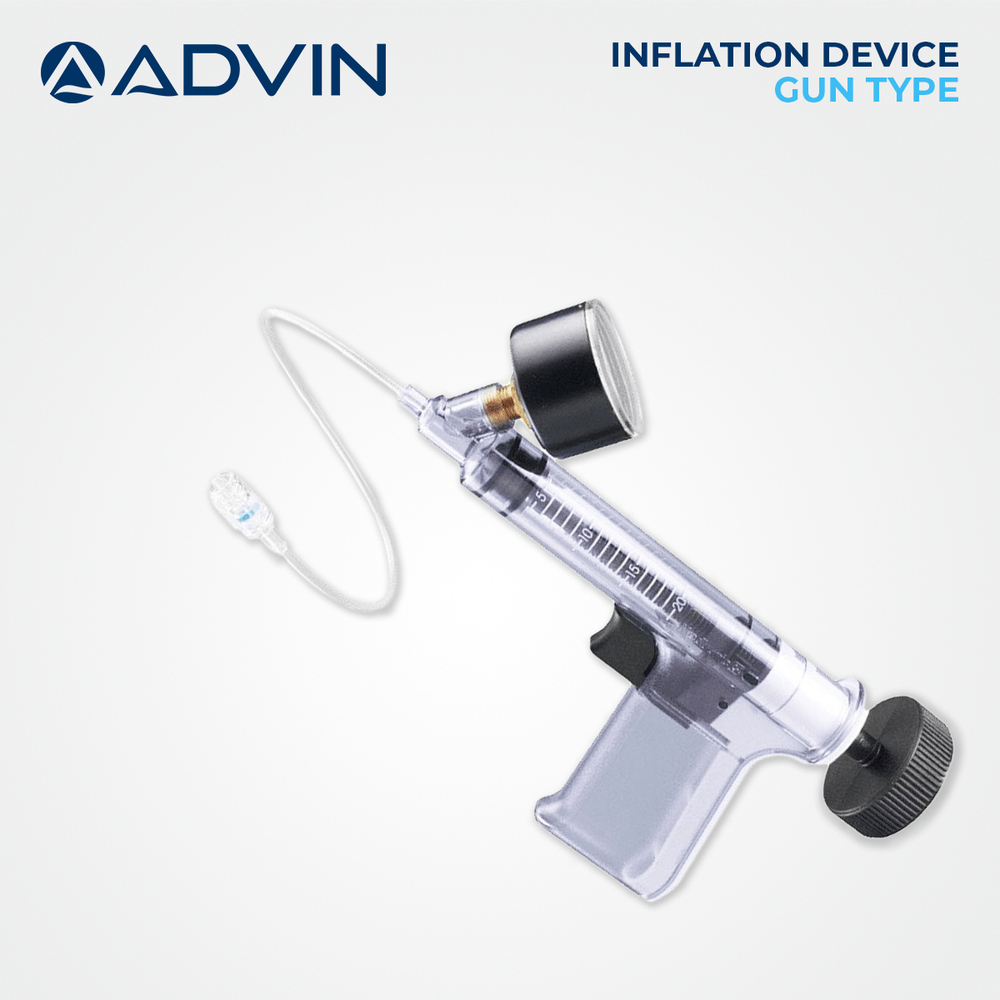

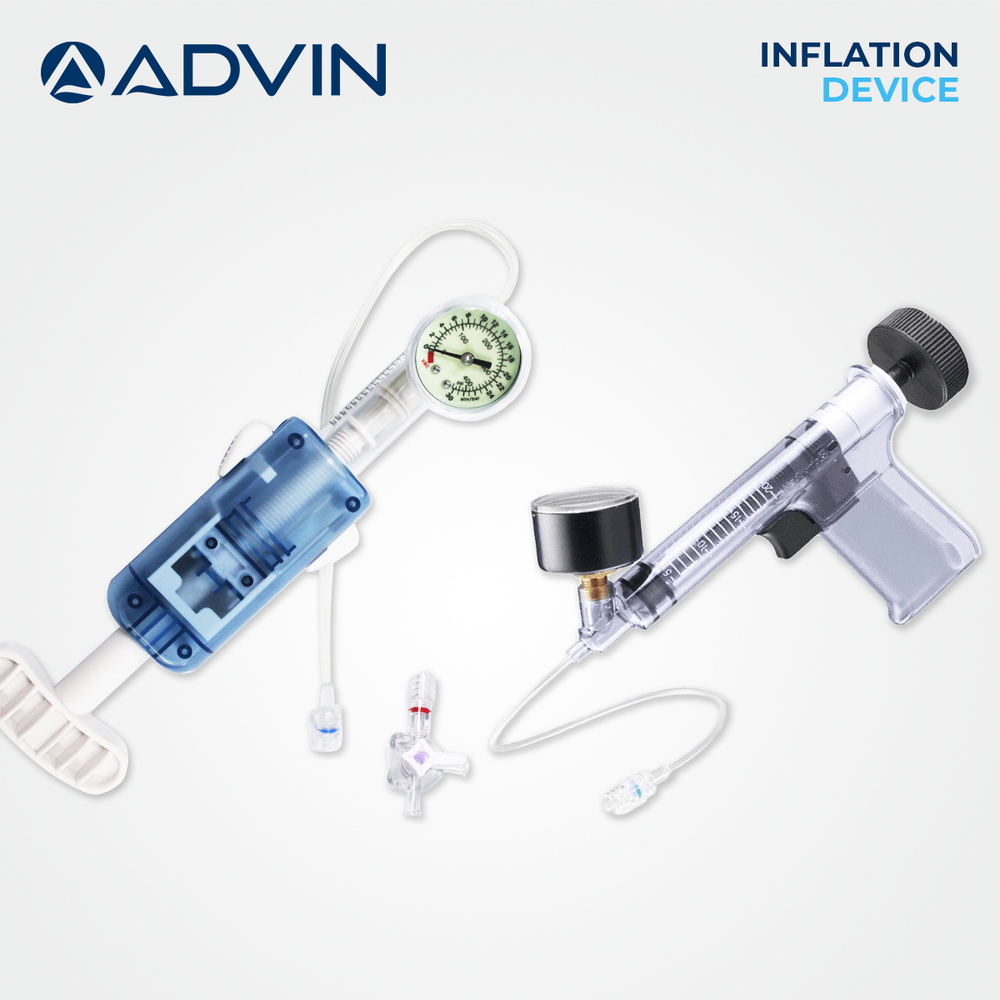

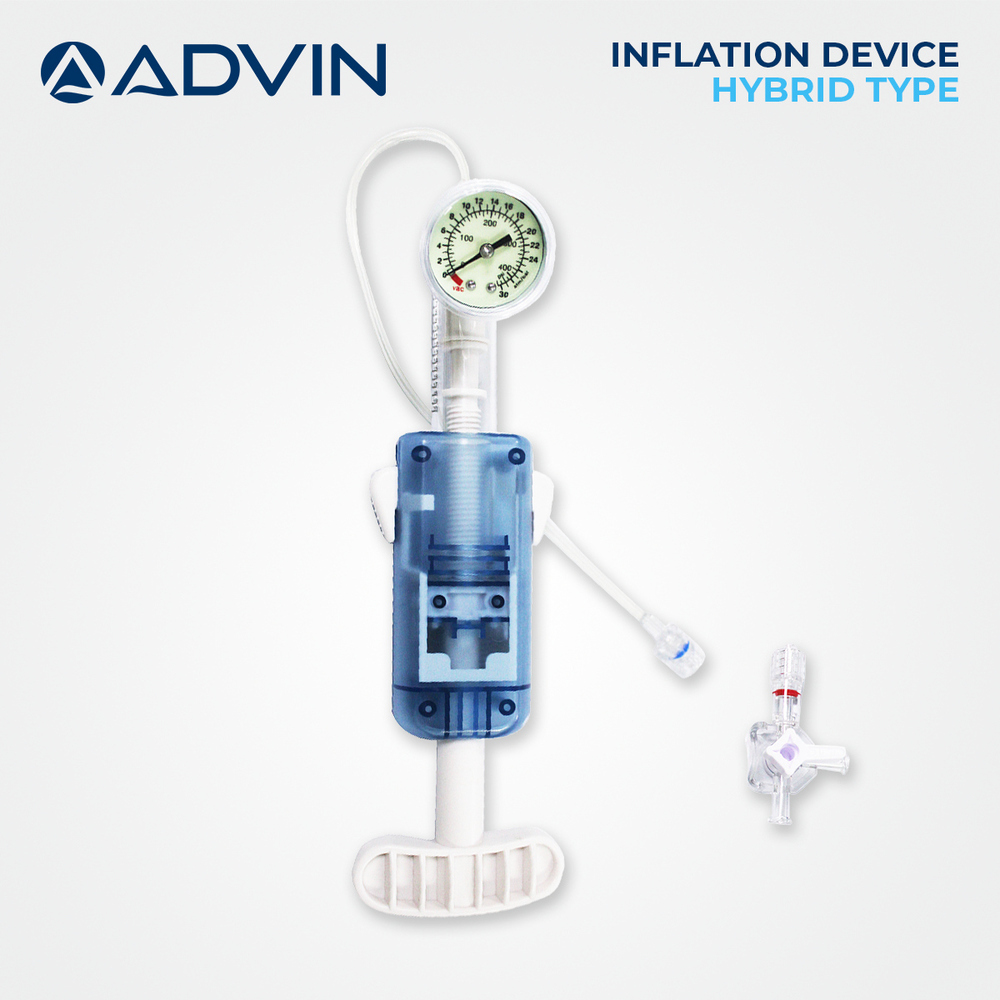

Coronary Inflation Device

Name: Coronary Inflation Device
Brand: Advin Health Care
Price: 20 USD
Availability: InStock

Price 20 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Coronary Inflation Device Specification

Usage Type
Single Use/Disposable

Storage Instructions
Store in Cool, Dry Place, Keep Away from Direct Sunlight

Function
Precise Balloon Inflation and Deflation for Coronary Procedures

Instruments Type
Interventional Cardiology Device

Features
Ergonomic Handle, Precision Pressure Control, Easy-to-read Gauge, Leak-proof System

Measurement Range
0 to 30 atm (0 to 441 psi)

Accuracy
1% Full Scale

Shelf Life
3 Years

Display Type
Analog Pressure Gauge

Equipment Type
Coronary Inflation Device

Material
Medical Grade Plastic and Metal, Medical Grade Plastic and Polycarbonate

Condition
New, New

Technology
Manual Rotary Mechanism

Portable
Yes

Wall Mounted
No, No

Real-Time Operation
Yes, Yes

Noise Level
Silent Operation

Operating Type
Manual, Manual

Use
Balloon Catheter Inflation During Angioplasty

Power Source
Manual (No Electrical Power Required), Manual Hand-operated

Dimension (L*W*H)
210mm x 60mm x 45mm (Approx.)

Weight
Approx. 200g

Color
Transparent Body with Blue/White Accents

Compliance
CE Marked, ISO 13485 Certified

Application Field
Interventional Cardiology, Vascular Procedures

Package
Individually Packed, Blister Packaging

Maximum Inflation Pressure
30 atm (441 psi)

Gauge Graduation
1 atm increments

User
Cardiologists, Interventionists, Medical Staff

Connection Type
Standard Luer Lock

Barrel Capacity
20 ml

Sterility
Sterile, EO Sterilized

Latex Content
Latex Free

About Coronary Inflation Device

Advin Health Care offers Coronary Inflation Devices designed to meet international quality standards. These devices are used in coronary angioplasty procedures to precisely inflate and deflate balloon catheters within the coronary arteries. Engineered for accuracy and control, they ensure safe dilation of stenosed vessels and support successful interventional outcomes.

Key Features

Accurate pressure control for balloon inflation and deflation
High-pressure capability suitable for coronary interventions
Smooth and controlled operation for enhanced procedural safety
Clear and easy-to-read pressure gauge
Ergonomic design for comfortable and stable handling
Compatible with standard PTCA balloon catheters

Specifications

Type: Coronary Inflation Device
Pressure Range: Up to 2030 atm (model dependent)
Volume Capacity: 2030 ml (typical)
Display: Analog pressure gauge
Material: Medical-grade polymer with precision components
Sterilization: EO Sterilized
Usage: Single-use / Disposable
Application: Balloon inflation in coronary angioplasty procedures

Certifications
CE, ISO 13485, and ISO 9001 certified
