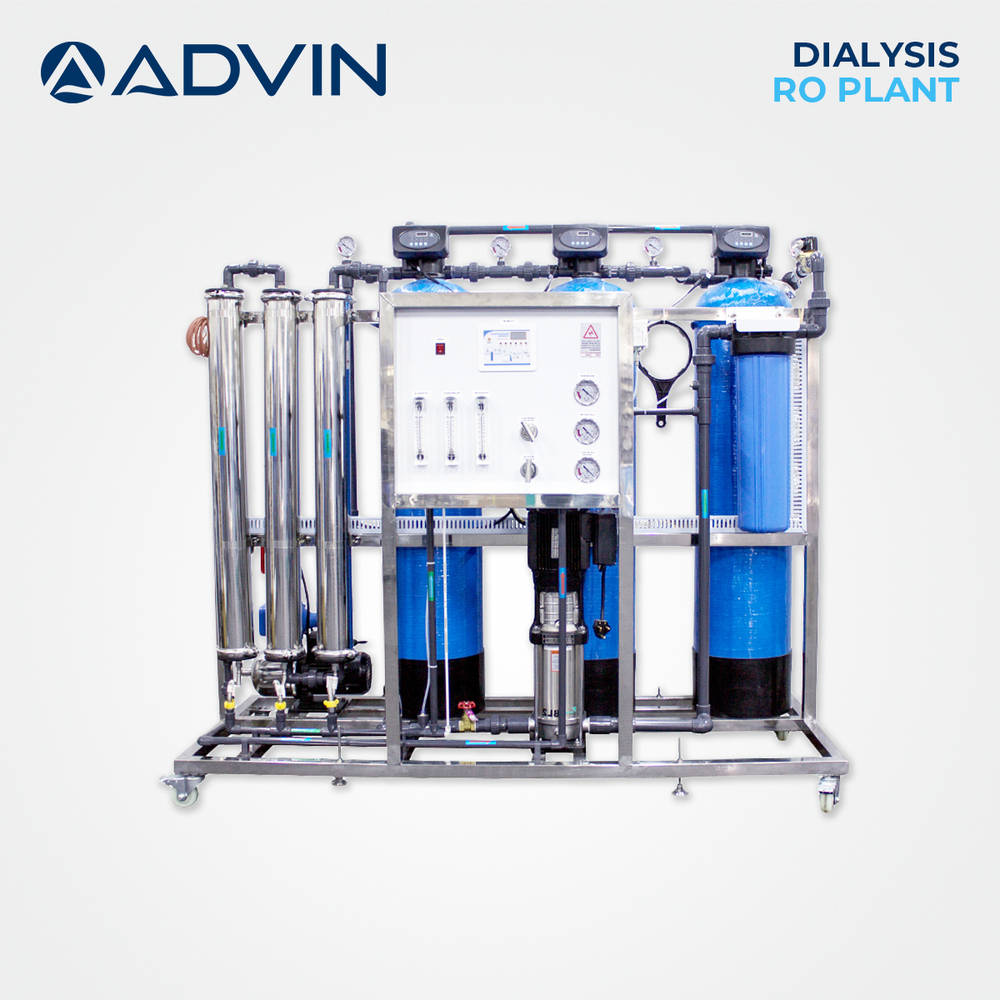

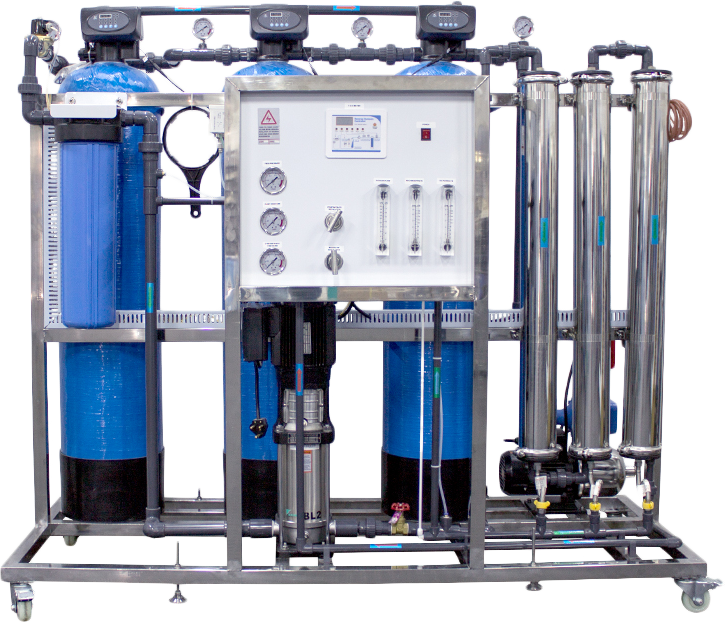

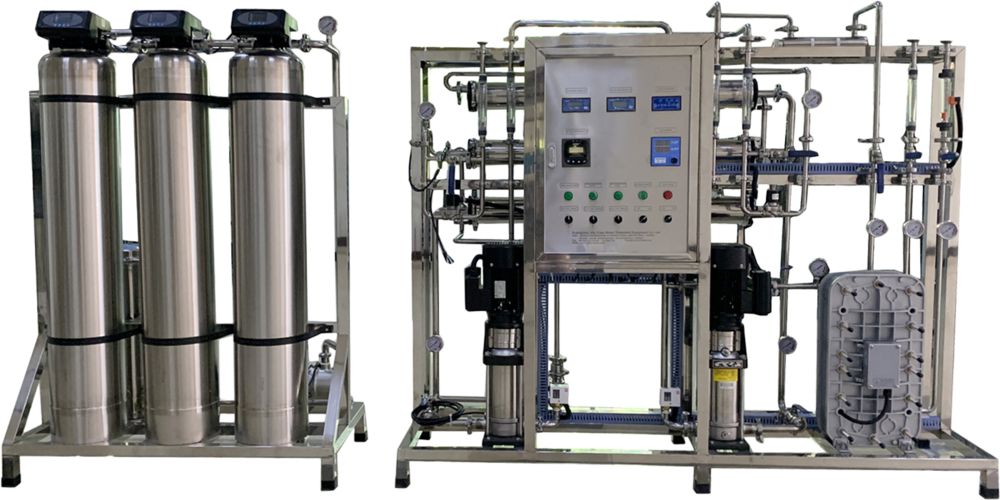

Dialysis RO Water Treatment Plant

Price 5000 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Dialysis RO Water Treatment Plant Specification

Shelf Life
Long, maintenance dependent

Features
RO, UV Sterilization, Automatic Flush, LCD Panel, Safety Alarms

Display Type
Digital (for advanced models)

Accuracy
Removes up to 99% impurities

Frequency
50/60 Hz

Usage Type
Hospital/Medical

Storage Instructions
Keep in dry place, away from direct sunlight

Instruments Type
Water Purification System

Function
Purifies water for medical dialysis use

Measurement Range
Input TDS: up to 2000 ppm, Output TDS: <10 ppm

Equipment Type
Dialysis RO Water Treatment Plant

Material
Stainless Steel, FRP (Fiber Reinforced Plastic)

Condition
New

Technology
Reverse Osmosis (RO) with Pre-Filtration and UV

Portable
No

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Low

Operating Type
Automatic

Use
Production of pure water for Dialysis Centers

Power Source
Electric

Power Consumption
2-5 kW (depending on model)

Voltage
220V/380V, 50/60 Hz

Dimension (L*W*H)
Approx. 1200 x 600 x 1500 mm (varies per capacity)

Weight
Approx. 100-250 kg (depends on model)

Color
Silver/Blue (tank and piping colors may vary)

Installation Service
Available on site

Conductivity Meter
Integrated, Digital Display

Reject Water Ratio
20-30%

Safety Alarms
Low Pressure, High Conductivity, Water Level Alarms

Operating Pressure
10-15 bar

PLC Control System
Available in advanced models

Sanitization
Automated Cleaning and Flushing

Feed Water Requirement
Municipal, Borewell, or Treated Water

Water Output Capacity
250-1000 LPH (Liters per Hour), customizable

Pump Type
High Pressure, Stainless Steel

Pre-Filtration Stages
Activated Carbon, Sediment, Micron Filter

UV Sterilizer Power
40W (approx.)

RO Membrane Type
Thin Film Composite (TFC)

Recovery Rate
70-80% (system dependent)

About Dialysis RO Water Treatment Plant

Advin Health Care provides a high-performance Dialysis RO Water Treatment Plant that ensures a continuous supply of ultrapure water for hemodialysis. The system combines multiple purification stages, including pre-filtration, softening, reverse osmosis, and post-treatment to deliver medical-grade water purity. Built with durable stainless-steel components and advanced automation, it ensures long-term reliability, low maintenance, and excellent efficiency. Advin Health Careas RO Water Treatment Plant meets AAMI and ISO standards, protecting patients from contaminants while extending dialysis machine lifespan. Ideal for hospitals, nephrology centers, and dialysis units, it provides dependable and safe water purification for uninterrupted dialysis care.

Advanced Features:

Multi-stage purification for ultrapure water
High-efficiency RO membranes and filters
Stainless-steel frame for hygiene and strength
Real-time conductivity and TDS monitoring
Automatic flushing and cleaning system
Compact design with energy-efficient operation
Long service life with minimal maintenance
Ensures consistent dialysis water quality
Complies with AAMI/ISO dialysis standards
Suitable for hospitals and dialysis centers

Advanced Water Purification Technology

Featuring state-of-the-art reverse osmosis (RO) technology combined with multi-stage pre-filtration and UV sterilization, our plant efficiently removes up to 99% of contaminants. The inclusion of Thin Film Composite RO membranes ensures maximum purity, making the water safe for sensitive dialysis processes.

Automatic Operation and Safety Monitoring

Designed for ease of use, this plant operates automatically, requiring minimal intervention. Real-time digital monitoring, PLC controls, and comprehensive safety alarms alert operators to any irregularities, maintaining optimal water quality and consistent supply critical for medical environments.

Reliable Build and Flexible Installation

Constructed using durable stainless steel and FRP, the system offers long shelf life and dependable operation. The compact design fits standard medical facilities, and on-site installation service ensures seamless integration with existing infrastructure. Customizable options cater to diverse water sources and capacity needs.

FAQ's of Dialysis RO Water Treatment Plant:

Q: How does the Dialysis RO Water Treatment Plant purify water for medical use?

A: This plant employs a combination of activated carbon, sediment, and micron filters for pre-filtration, followed by a Thin Film Composite RO membrane to remove dissolved impurities. UV sterilization ensures microbial safety, delivering water suitable for dialysis applications.

Q: What is the typical water output capacity, and can it be customized?

A: The system's output is customizable from 250 to 1000 liters per hour, allowing adaptation to various dialysis center sizes and patient loads based on specific requirements.

Q: When should automated cleaning and flushing be performed?

A: Automated cleaning and flushing cycles are programmed into the system to maintain water quality and membrane longevity. Schedule recommendations depend on water source and usage, with real-time alarms and digital display providing prompts for maintenance.

Q: Where can the Dialysis RO Water Treatment Plant be installed?

A: It is suited for hospitals, clinics, and medical centers, with on-site installation service provided. The system can utilize municipal, borewell, or treated feed water to meet facility-specific needs.

Q: What safety measures are included with the RO Water Treatment Plant?

A: Comprehensive safety alarms alert users to low pressure, high conductivity, and abnormal water levels. Advanced models include PLC control for automated diagnostics, helping staff respond quickly to potential issues.

Q: How is purified water quality monitored during operation?

A: An integrated conductivity meter and digital display track water quality in real time, ensuring output Total Dissolved Solids (TDS) remain below 10 ppm for dialysis use. Information is accessible directly from the LCD panel on advanced models.
