Digital CO2 Insufflator

Price 899 USD ($)/ Perch

Get a Price/Quote

MOQ : 1 Piece

Digital CO2 Insufflator Specification

Measurement Range
0-30 mmHg (Pressure), 1-30 L/min (Flow)

Storage Instructions
Store in dry, dust-free environment

Usage Type
Hospital, Surgery Room

Frequency
50/60 Hz

Function
Controlled CO2 gas insufflation

Features
Digital display, Over pressure cut off, Flow & pressure indicator, Audible alarm

Instruments Type
Laparoscopy Insufflator

Accuracy
1 mmHg

Display Type
Digital LED

Equipment Type
Digital CO2 Insufflator

Material
Stainless Steel, Medical Grade Plastic

Condition
New

Technology
Microprocessor Controlled

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Low

Operating Type
Automatic / Digital

Use
Laparoscopic and Endoscopic Surgical Procedures

Power Source
Electric

Power Consumption
40 VA

Voltage
230 V AC, 50 Hz

Dimension (L*W*H)
410 x 330 x 150 mm

Weight
7 kg

Color
White and Blue

Alarm Type
Visual and Audible Alarm for Malfunction or Obstruction

Display Parameters
Set Pressure, Actual Pressure, Set Flow, Actual Flow

Humidity Operating Range
10-85% RH (non-condensing)

User Interface
Digital Touch Panel

Flow Rate
1-30 L/min adjustable

Control Mode
Microprocessor Based Controller

Temperature Range
10°C to 40°C

Gas Type
Carbon Dioxide (CO2)

Application
Minimally Invasive Surgery, Endoscopy

Tubing Material Compatibility
Medical Grade Tubing

Safety Systems
Automatic Over Pressure Cutoff, Audible Alarms, Thermal Shutoff

Interface
Touch Button Controls

CO2 Input Pressure
35-55 psi

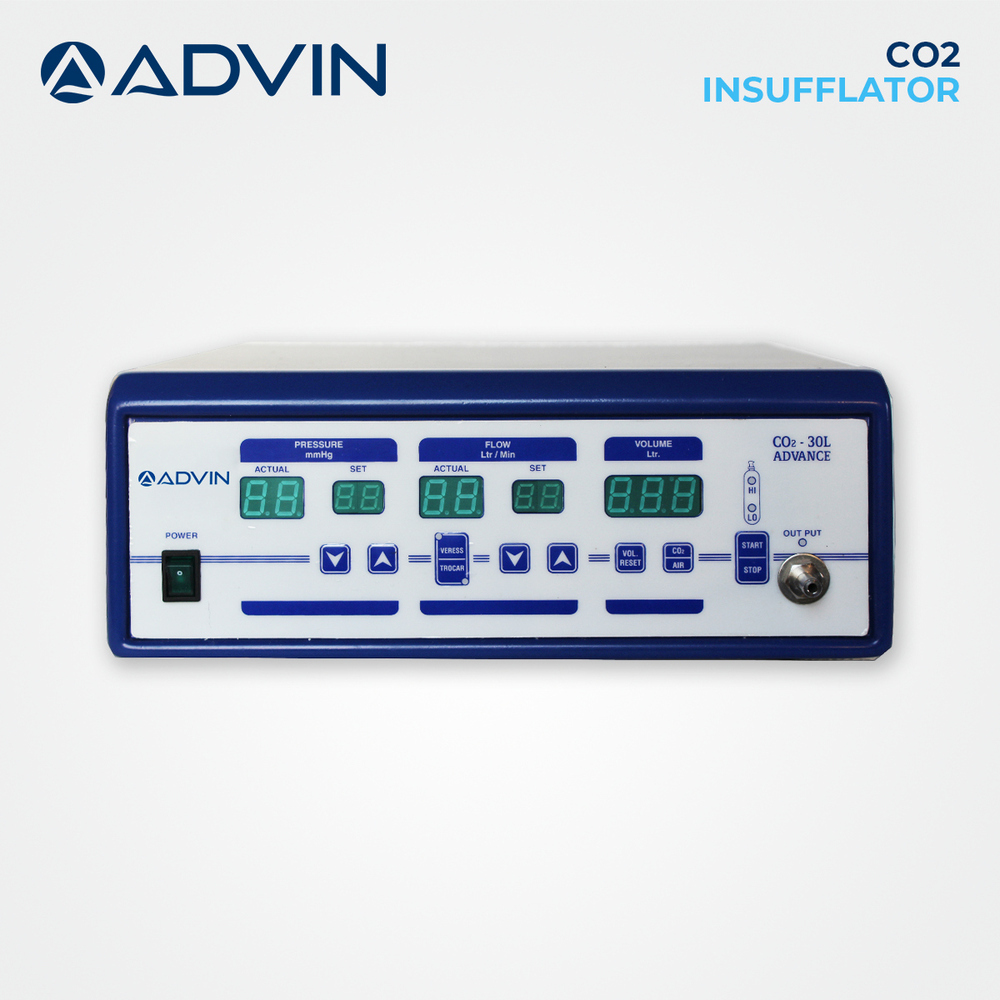

About Digital CO2 Insufflator

The Digital COa Insufflator is a modern surgical device designed to provide safe and precise insufflation of carbon dioxide during laparoscopic and endoscopic procedures. It ensures accurate control of pressure and flow, offering clear visibility and a stable surgical field. Its digital display makes monitoring easy and enhances surgical safety.

Advanced Features

Digital display of pressure, flow, and gas volume
Accurate and stable COa insufflation control
Adjustable flow rate with high-flow option
Safety alarms for over-pressure and leakage detection
Compact, lightweight, and ergonomic design
Compatible with reusable and disposable tubing sets
Ensures clear surgical visibility and patient safety

Advanced Digital Control for Precision

Microprocessor-based controls enable highly accurate adjustment of CO2 flow and pressure during minimally invasive surgeries. Surgeons benefit from real-time feedback, ensuring both safety and optimum results throughout laparoscopic or endoscopic procedures.

Comprehensive Safety Features

The insufflator incorporates automatic over-pressure cutoff, audible alarms, and thermal shutoff to safeguard both patients and equipment. Visual and audible alerts signal malfunctions or obstructions, ensuring prompt response and maintaining operation integrity.

Simple Interface and Display

Equipped with a digital touch panel and intuitive touch button controls, the device offers an easy-to-navigate interface. The clear LED display shows set and actual pressure and flow values, supporting efficient monitoring and fast adjustments during surgery.

FAQ's of Digital CO2 Insufflator:

Q: How does the microprocessor control mode improve CO2 insufflation accuracy?

A: The microprocessor-based controller precisely regulates CO2 pressure and flow, ensuring the set parameters are accurately maintained throughout the procedure. This minimizes risks and enhances surgical outcomes by providing consistent and stable gas delivery.

Q: What safety systems are included in the digital CO2 insufflator?

A: The device features automatic over-pressure cutoff, thermal shutoff, and both audible and visual alarms for any malfunction or tubing obstruction, protecting the patient and maintaining equipment reliability during surgery.

Q: When should the Digital CO2 Insufflator be used?

A: It is designed for use during laparoscopic and endoscopic surgical procedures, providing controlled insufflation of CO2 to create a clear operative field, making it suitable for hospitals and surgery rooms.

Q: Where can this CO2 insufflator be installed and operated?

A: The insufflator is portable and not wall-mounted, making it ideal for hospitals, operating rooms, and surgical settings where flexibility and mobility are required.

Q: What is the process for adjusting flow and pressure on the insufflator?

A: Users can adjust the flow and pressure with the touch button controls on the digital panel. Real-time values are displayed for set and actual flow and pressure, ensuring immediate verification and adjustment as needed.

Q: How does using medical grade tubing benefit surgical procedures?

A: Utilizing medical grade tubing ensures that the CO2 delivery is safe, minimizes contamination risk, and supports compatibility with other medical devices, thus maintaining stringent surgical standards.

Q: What are the storage instructions for the Digital CO2 Insufflator?

A: To preserve performance, store the device in a dry, dust-free environment within the recommended humidity and temperature ranges of 10-85% RH and 10C to 40C.
