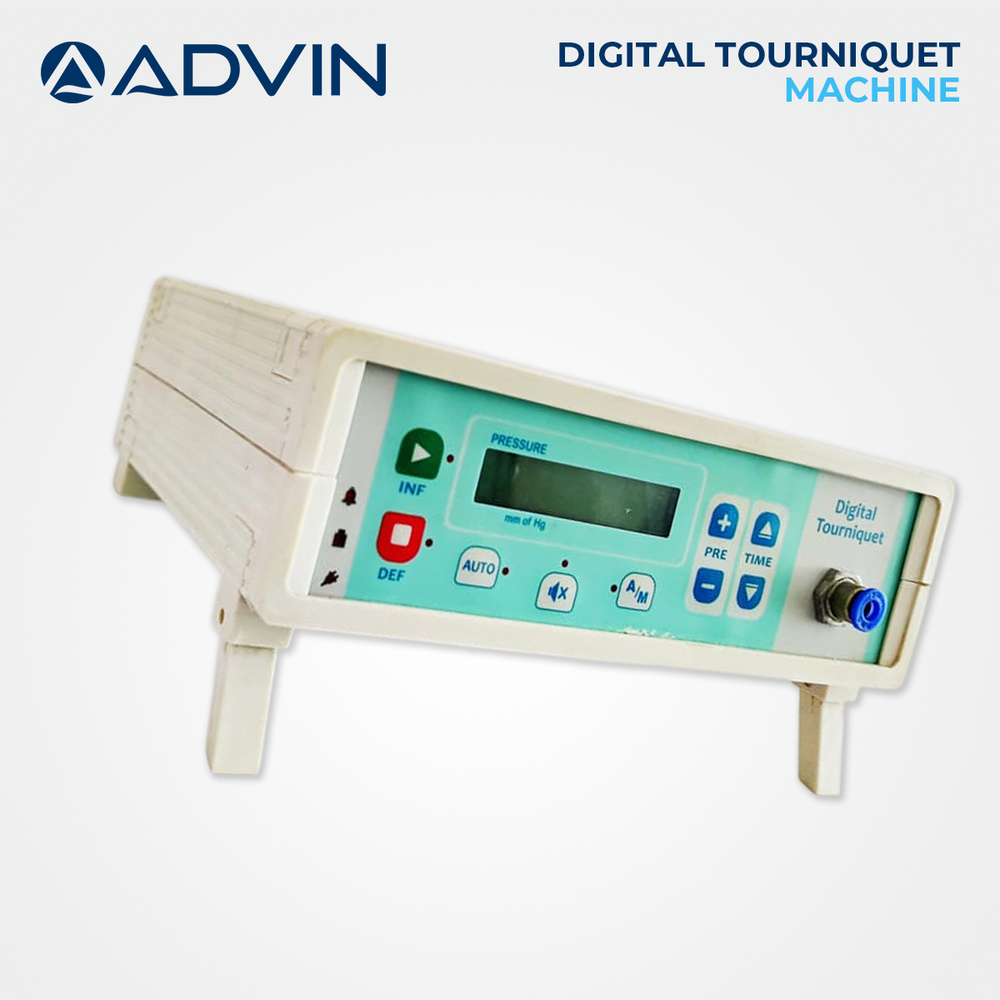

Digital Tourniquet Machine

Price 350 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Digital Tourniquet Machine Specification

Function
Limb pressure control and time monitoring

Storage Instructions
Store in dry place, away from direct sunlight

Usage Type
Hospital, Surgical

Features
Digital timer, Pressure display, Audio-visual alarms

Instruments Type
Medical Equipment

Display Type
Digital LED Display

Accuracy
2 mmHg

Measurement Range
0 - 600 mmHg

Frequency
50 Hz

Equipment Type
Digital Tourniquet Machine

Material
ABS Plastic, Stainless Steel

Condition
New

Technology
Microprocessor Controlled

Portable
Yes

Wall Mounted
Yes

Real-Time Operation
Yes

Noise Level
Low (<60 dB)

Operating Type
Automatic

Use
Blood flow occlusion during surgeries

Power Source
Electric (AC Mains)

Power Consumption
15-20 Watts

Voltage
220-240 V AC, 50Hz

Dimension (L*W*H)
Approx. 225mm x 250mm x 110mm

Weight
3.5 kg

Color
White & Blue

Number of Cuffs
Single or Dual Channel/Port

Timer Range
Up to 999 minutes

Operating Temperature
10C 40C

Cuff Material
Latex free, Medical Grade

Relative Humidity
<80% non-condensing

Controls
Membrane keypad with tactile feedback

Application
Orthopedic, plastic, and general surgery

Pressure Calibration
Yes, with inbuilt calibration marking

Display Resolution
High precision pressure indication

Alarm Type
Audio and Visual for Timeout/Excess Pressure

Safety Features
Automatic deflation on power failure

About Digital Tourniquet Machine

We, Advin, Digital Tourniquet Machine with international quality standards. Tourniquets applied to the digits control and minimise blood loss providing a clear surgical field that allows for delineation of structures.

Advanced Features:

Fully Automatic Micro-controller based Dual cuff system

Feather Touch Keypad control, Easy to set

pressure value with Rotary Nob

Large Graphical Display for better Visibility

Cuff Pressure is maintain to set value

automatically

Online cuff pressure setting can be changeable

in working mode

Elapsed Time of inflection period is always in

front of Display

Cuff having long, straight silicon Tubing and Autoclavable

Cuff Pressure and Time set Individually for both cuff

In Built battery Charging circuit to re-charge the battery immediately by just connecting

the power cable.

Advanced Control & Precision

Featuring a microprocessor-controlled system, this digital tourniquet provides highly accurate limb pressure control, with high-resolution digital pressure display and inbuilt calibration marking. The membrane keypad with tactile feedback ensures effortless operation and reliable adjustments, vital for surgical teams demanding precision and safety.

Comprehensive Safety & Monitoring

The machine incorporates both audio and visual alarms, alerting users to excessive pressure or timeouts, complemented by the crucial feature of automatic cuff deflation in the event of power failure. The digital timer and pressure display offer real-time monitoring, enhancing safety throughout surgical procedures.

Designed for Hospital Efficiency

Constructed from robust ABS plastic and stainless steel, this compact, wall-mountable device is ideal for hospital environments. Its portable design, low noise level, and easy-to-clean materials make it highly practical for repeated use across surgical wards and operating rooms.

FAQ's of Digital Tourniquet Machine:

Q: How does the Digital Tourniquet Machine ensure patient safety during use?

A: The machine provides multiple safety features such as automatic deflation if power fails, and uses both audio and visual alarms to alert for excess pressure or timeouts. The use of latex-free, medical grade cuffs adds to patient safety by minimizing allergic reactions.

Q: What are the key benefits of using a microprocessor-controlled tourniquet in surgery?

A: Microprocessor technology delivers superior accuracy and consistency in pressure control and timing, reducing the risk of human error. This precision helps improve surgical outcomes and enhances overall operational reliability.

Q: Where is this Digital Tourniquet Machine typically used?

A: This equipment is primarily used in hospitals, including operating theaters and surgical wards, for procedures in orthopedic, plastic, and general surgery requiring blood flow occlusion.

Q: What is the process for calibrating and operating the device?

A: Calibration is straightforward with inbuilt calibration markings, ensuring reliable pressure measurements. Operation is user-friendly, utilizing a tactile membrane keypad for quick settings and adjustments, while the digital LED display provides real-time feedback.

Q: Can this device be used for both single and dual limb procedures?

A: Yes, the tourniquet accommodates both single or dual channel configurations, making it versatile for a range of surgical needs involving one or two limbs simultaneously.

Q: What is the recommended method for storing the machine when not in use?

A: It should be stored in a dry area, away from direct sunlight, and within the specified operating temperature and humidity range to maintain optimal function and longevity.

Q: When should the alarm features be expected to activate?

A: Alarms will activate in the event of a prolonged timer (timeout), detection of excess pressure, or other safety concerns, allowing for immediate corrective actions by the surgical team.
