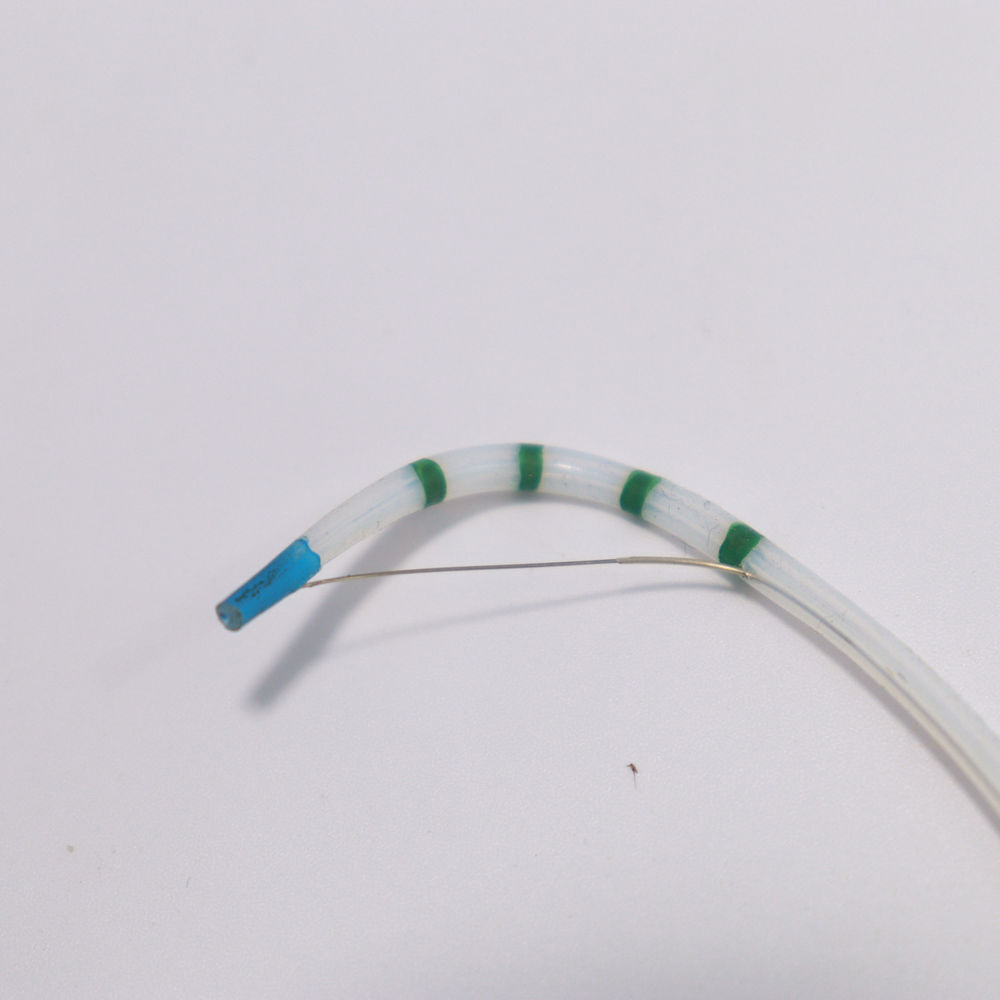

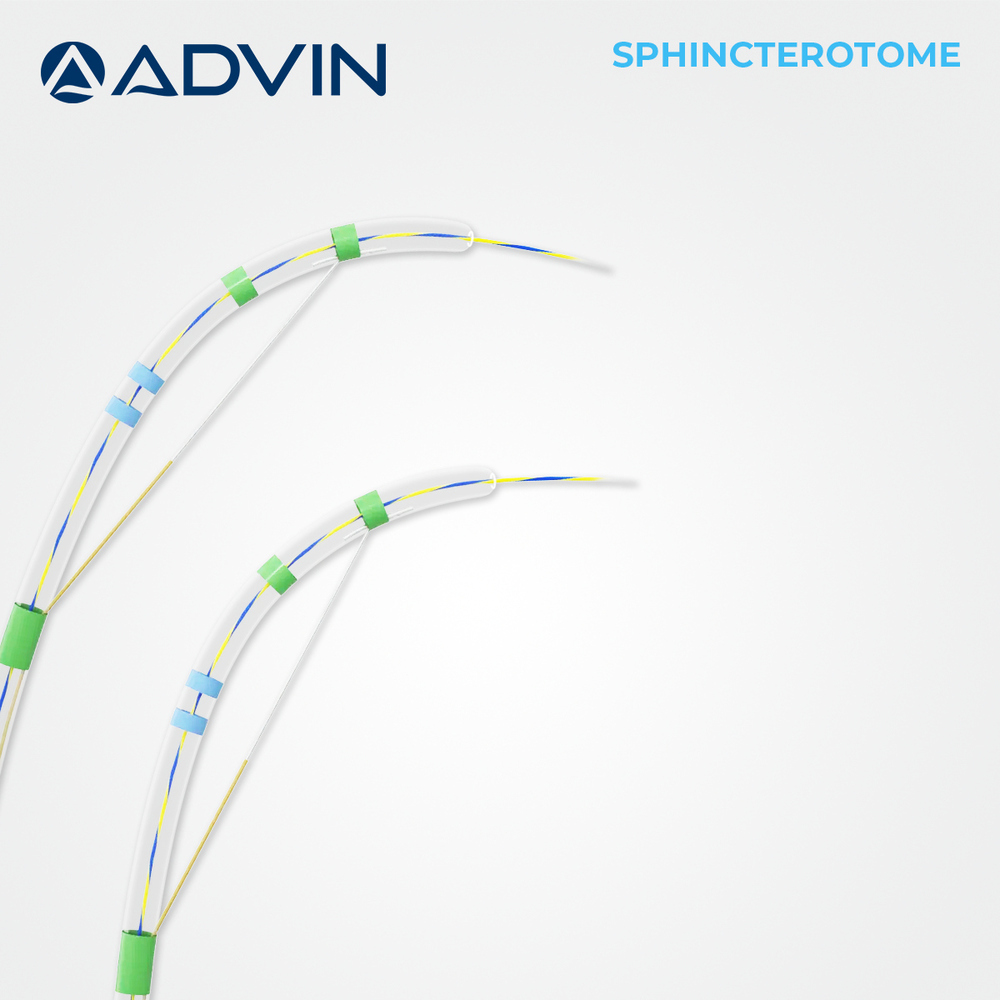

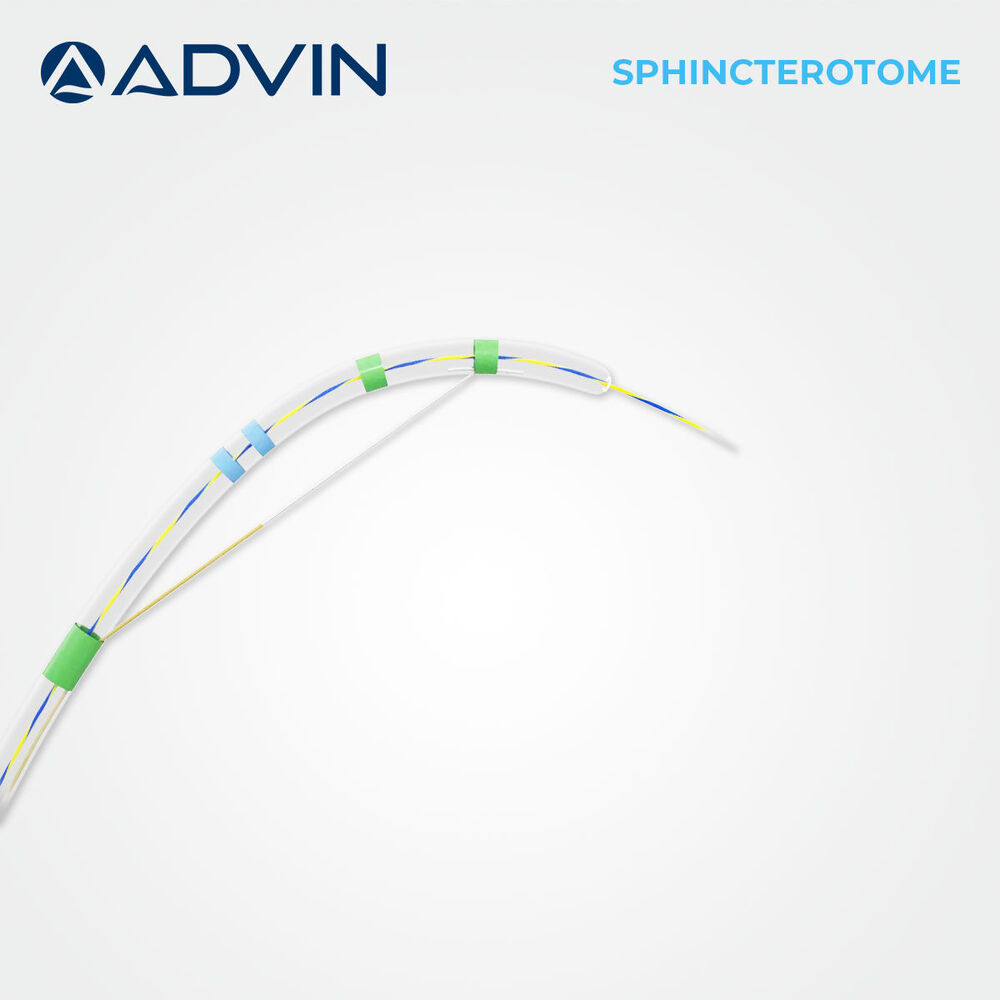

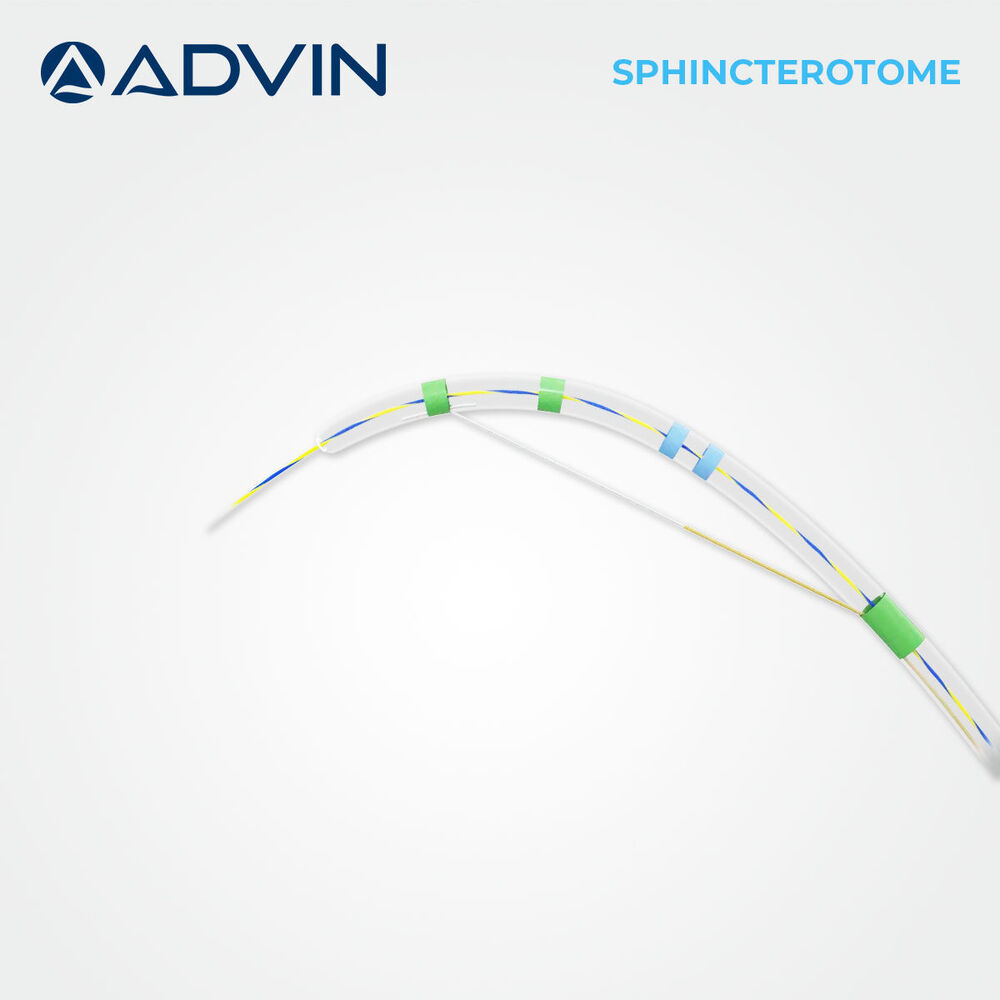

ERCP Long Nose Sphincterotome - Double Lumen - 20 mm

Send Inquiry

Request To Call Back

ERCP Long Nose Sphincterotome - Double Lumen - 20 mm

Price 6 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

ERCP Long Nose Sphincterotome - Double Lumen - 20 mm Specification

Measurement Range
20 mm cutting length

Storage Instructions
Store in a Cool, Dry Place Away from Direct Sunlight

Accuracy
High-precision Cutting

Shelf Life
3 Years

Features
Long Nose, Double Lumen, Rotatable Handle, Radiopaque Tip, Preloaded Guidewire Channel, PTFE Insulated Outer

Usage Type
Single-use (Disposable)

Function
Sphincterotomy during ERCP procedures

Instruments Type
Endoscopic Surgical Instrument

Equipment Type
ERCP Long Nose Sphincterotome

Material
Medical Grade Stainless Steel and High-Quality PTFE Insulation

Condition
New

Technology
Electrosurgical Cutting and Guidewire Technology

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Silent Operation

Operating Type
Manual with Electrosurgical Compatibility

Use
Endoscopic Biliary and Pancreatic Sphincterotomy

Power Source
External Electrosurgical Generator (not included)

Power Consumption
Depends on Connected Electrosurgical Generator

Voltage
Depends on Electrosurgical Generator

Dimension (L*W*H)
Standard Catheter Length: 220 cm

Weight
Lightweight, < 50 g

Color
Blue, White (Handle & Insulation)

Number of Lumens
Double Lumen (for separate guidewire and contrast channels)

Sterility
Sterile, EO Gas Sterilized

Catheter OD
Approximately 7 Fr

Tip Visibility
Radiopaque Tip for Fluoroscopic Guidance

Packaging
Individually Blister Packed

Tip Type
Long Nose, 20 mm Cutting Wire

Guidewire Compatibility
Up to 0.035 inch

Handle Type
Ergonomic Grip, Color Coded

Rotation
360° Rotatable Handle for Precise Positioning

Latex Free
Yes

Cutting Wire Material
Coated Stainless Steel

About ERCP Long Nose Sphincterotome - Double Lumen - 20 mm

The ERCP Long Nose Sphincterotome a Double Lumen a 20 mm is a specialized device used for precise incision during biliary and pancreatic duct access. Its long nose design improves reach and provides enhanced control, especially in anatomies where deeper insertion is required. The double lumen configuration enables simultaneous guidewire manipulation and contrast injection, making the procedure smoother for clinicians. Advin Health Care provides this device with dependable performance to support therapeutic endoscopic interventions. The flexible catheter and consistent cutting capability help achieve predictable and safe clinical outcomes.

Advanced Features

Long nose design for improved reach and controlled cannulation
Double lumen construction for guidewire and injection use
20 mm cutting length suitable for therapeutic ERCP
Smooth and flexible catheter for better navigation
Provides stable and precise cutting performance

Dual Lumen Design for Separate Guidewire and Contrast Channels

The device features a dedicated double lumen configuration, enabling clinicians to use a guidewire and inject contrast media independently. This separation enhances control, facilitates smooth navigation, and allows for more precise diagnostic and therapeutic interventions during ERCP procedures.

Superior Precision and Safety

With a 20 mm coated stainless steel cutting wire and high-quality PTFE insulation, the sphincterotome provides accurate cutting while minimizing risk to surrounding tissues. The radiopaque tip ensures clear fluoroscopic visibility, improving procedural outcomes and enhancing patient safety.

Advanced Ergonomics and Rotation

Designed with a color-coded, ergonomic handle, the instrument offers a comfortable grip and superior maneuverability. The 360-degree rotatable handle allows for fine adjustment of tip position, supporting optimal access to the targeted duct and flexibility during complex endoscopic procedures.

FAQ's of ERCP Long Nose Sphincterotome - Double Lumen - 20 mm:

Q: How is the ERCP Long Nose Sphincterotome used during a procedure?

A: The sphincterotome is inserted endoscopically to perform sphincterotomy during ERCP procedures. Its double lumen allows separate channels for guidewire advancement and contrast injection, and the 360 rotatable handle enables precise orientation for controlled cutting of the sphincter.

Q: What are the advantages of the double lumen design?

A: The double lumen allows clinicians to advance a guidewire and deliver contrast media independently, streamlining the process and helping to reduce procedural time and risk of cross-contamination.

Q: When should this sphincterotome be used?

A: This device is used during ERCP procedures when sphincterotomy of the biliary or pancreatic duct is needed, particularly in cases that require high precision and separate access for guidewire and contrast injection.

Q: Where is the radiopaque tip most beneficial?

A: The radiopaque tip is especially beneficial during fluoroscopically guided procedures, providing clear visualization of the sphincterotome's position, thereby supporting accurate placement and cutting.

Q: What are the key safety features of this sphincterotome?

A: Key safety features include PTFE insulation to minimize tissue damage, latex-free construction, EO gas sterilization, and a preloaded guidewire channel to reduce handling and risk of contamination.

Q: Can this device be reused for multiple procedures?

A: No, the sphincterotome is designed for single-use (disposable) only, ensuring optimal sterility and eliminating the risk of cross-patient contamination.
