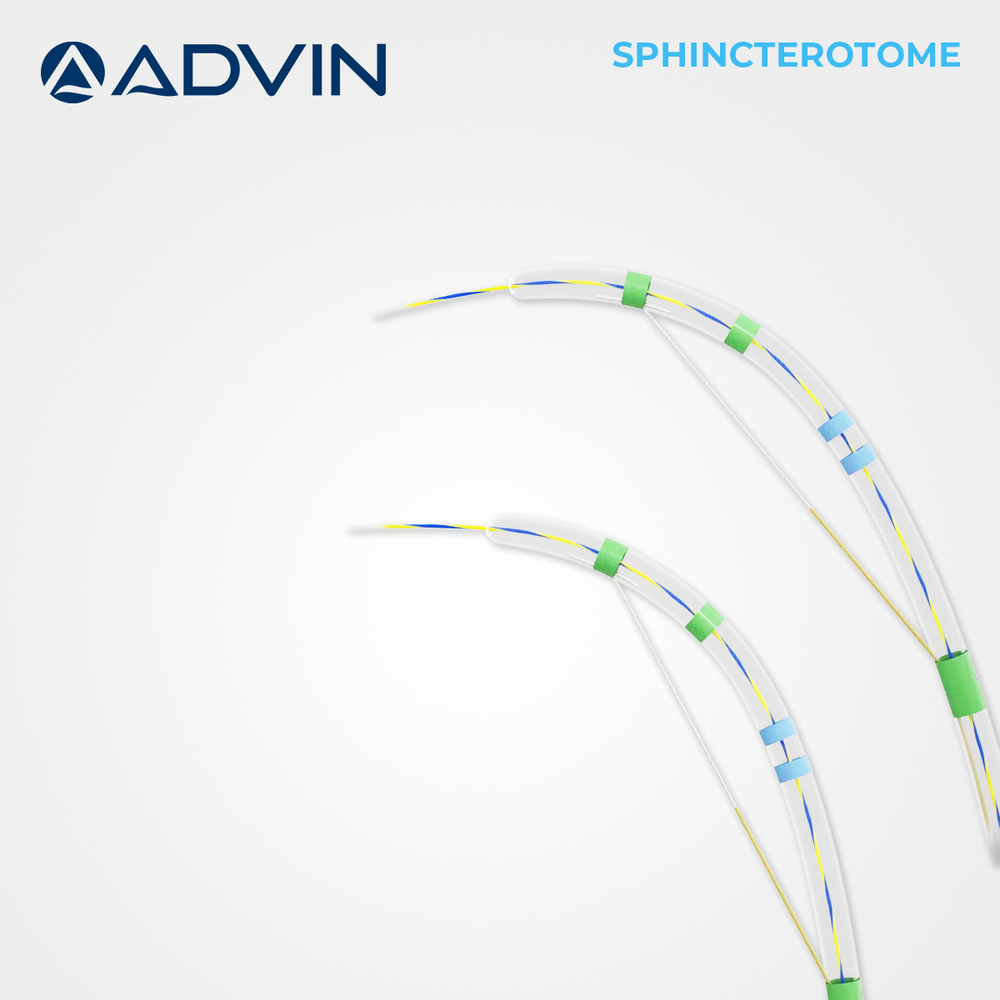

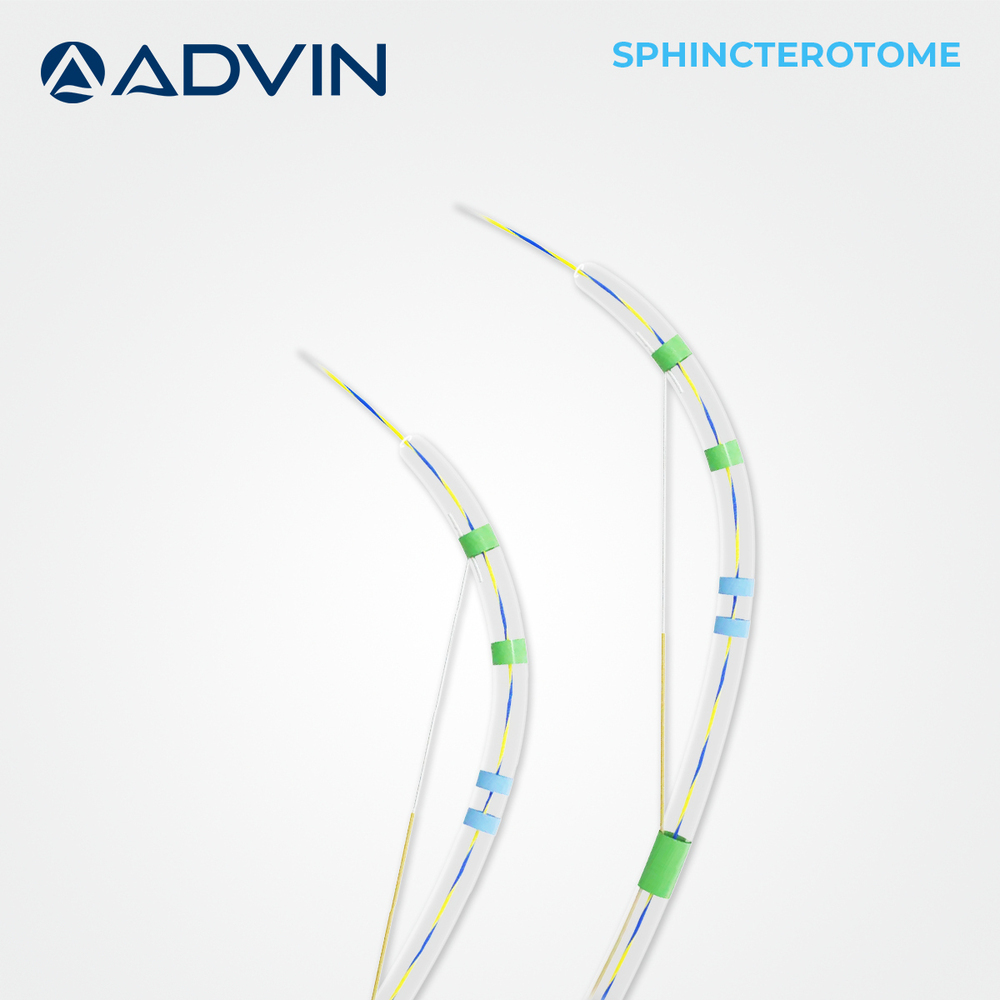

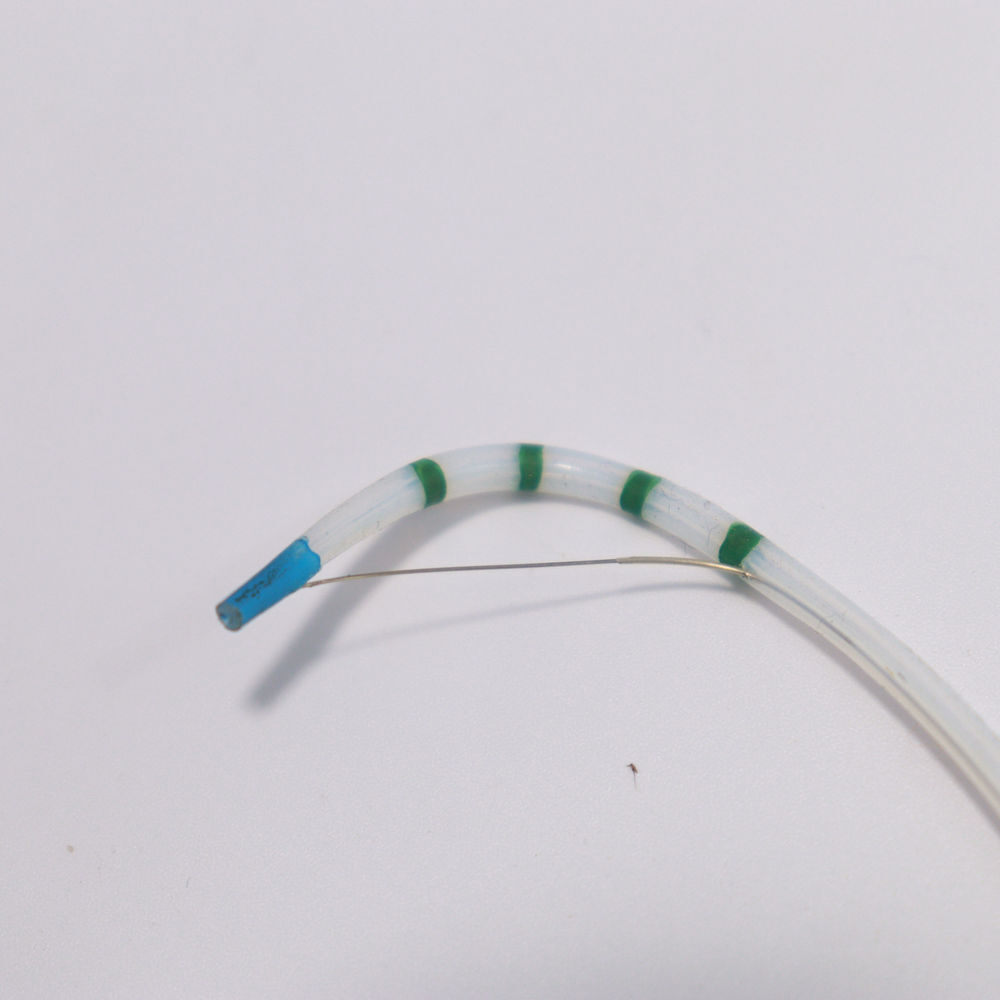

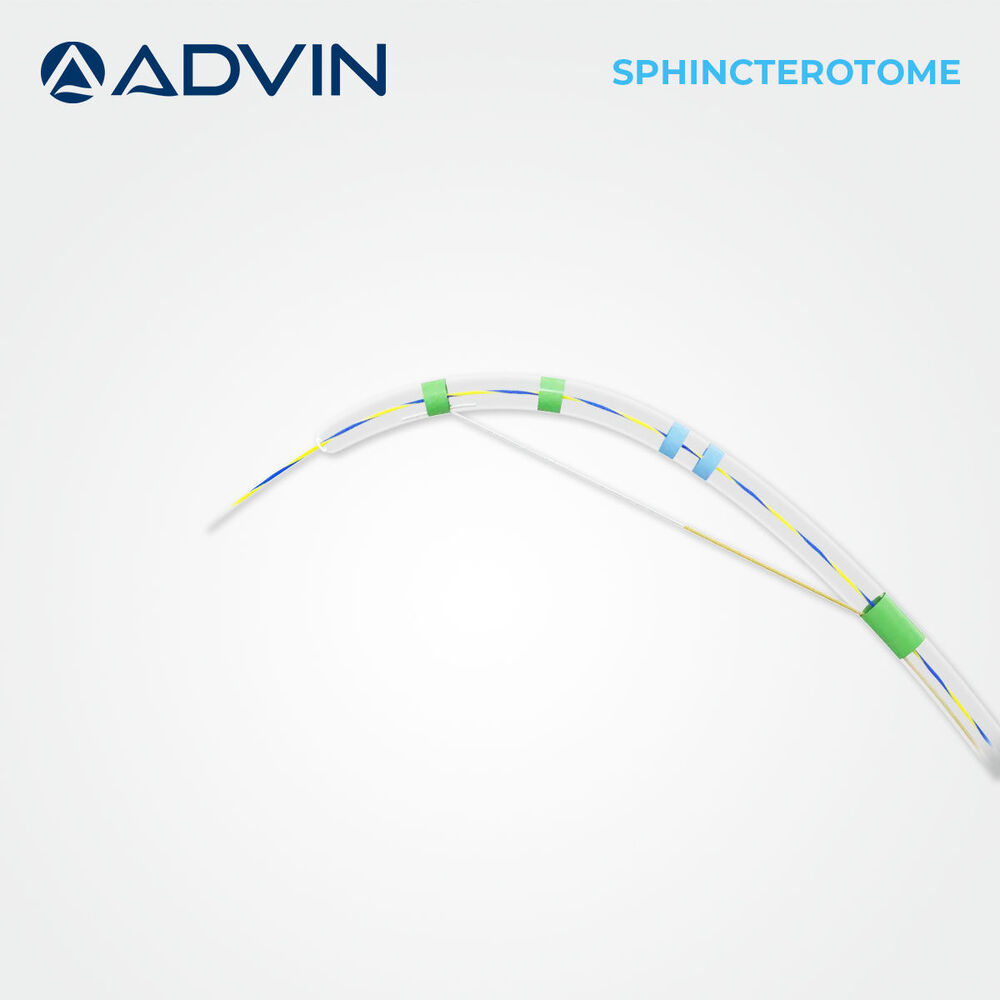

ERCP Short Nose Sphincterotome - Triple Lumen - 20 mm

Send Inquiry

Request To Call Back

ERCP Short Nose Sphincterotome - Triple Lumen - 20 mm

Price 6 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

ERCP Short Nose Sphincterotome - Triple Lumen - 20 mm Specification

Usage Type
Disposable, single-use

Shelf Life
5 years

Accuracy
High incision precision

Storage Instructions
Store in a cool, dry place away from direct sunlight

Features
Short nose design for enhanced cannulation precision, radiopaque tip, triple lumen, rotatable handle, preloaded guidewire compatibility

Function
Incision and cannulation of the sphincter of Oddi

Measurement Range
20 mm cutting wire length

Instruments Type
Endoscopic cutting and cannulation device

Equipment Type
ERCP Short Nose Sphincterotome - Triple Lumen

Material
Medical grade stainless steel and PTFE

Condition
New

Technology
Triple Lumen for guidewire, contrast, and incision

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Silent operation

Operating Type
Manual

Use
Endoscopic sphincterotomy during ERCP procedures

Power Source
Not required (manual use)

Dimension (L*W*H)
Length: 200 cm

Weight
Approx. 45 g

Color
White/Blue (handle/grip)

Compatibility
Usable with standard endoscopes and ERCP accessories

Cutting Wire Material
High-tensile medical alloy

Intended Procedure
Endoscopic Retrograde Cholangiopancreatography (ERCP)

Handle Type
Ergonomic grip

Lumen Configuration
Triple lumen (for guidewire, injection, and cutting wire)

Wire Length
20 mm exposed cutting wire

Radiopacity
Radiopaque tip and distal segment for enhanced visibility under fluoroscopy

Latex Content
Latex-free for patient safety

Tip Design
Short nose, radiopaque for fluoroscopic visualization

Sterility
Sterile, individually packed

Catheter Markings
Visible depth markings for procedural accuracy

Packaging
Individual sterile blister pack

Guidewire Compatibility
up to 0.035 inch (standard) guidewire support

Rotatability
360° rotatable handle for precise orientation

About ERCP Short Nose Sphincterotome - Triple Lumen - 20 mm

The ERCP Short Nose Sphincterotome a Triple Lumen a 20 mm is a specialized tool used to perform controlled sphincterotomy during ERCP procedures. Its short nose configuration improves maneuverability, enabling smoother cannulation and accurate cutting. The triple lumen structure supports simultaneous guidewire handling, contrast injection, and cutting functions, making the procedure more efficient. Advin Health Care provides this device with dependable performance to meet the demands of therapeutic endoscopy. Its flexible catheter and precision design contribute to safer and more predictable clinical outcomes.

Advanced Features

Short nose tip for enhanced access and precise control
Triple lumen design for guidewire, injection, and cutting use
Smooth and flexible catheter for easy navigation
20 mm cutting length ideal for standard therapeutic procedures
Stable cutting performance for safe sphincterotomy

Optimized for Precise ERCP Procedures

The short nose design of this sphincterotome enhances the accuracy of cannulation, making it ideal for challenging biliary and pancreatic duct access during ERCP. Its 20 mm cutting wire ensures controlled and effective sphincter incision, reducing patient risk and optimizing outcomes. The radiopaque tip and catheter markings offer clear visualization during fluoroscopic guidance, further supporting clinical accuracy.

Triple Lumen Innovation for Procedural Flexibility

Equipped with three distinct lumens, the device permits uninterrupted passage of a guidewire, precise injection of contrast, and controlled use of the cutting wire. This design streamlines the workflow during complex ERCP interventions, allowing clinicians to maneuver with confidence and adaptability without frequent instrument exchanges.

User-Centric, Safe, and Ready-to-Use Design

Manufactured with premium medical-grade stainless steel and PTFE, this sphincterotome is latex-free and designed for single use, minimizing infection risks. Each unit is ergonomically crafted with a 360 rotatable handle, delivering tactile comfort and superior orientation during delicate procedures. Its individual sterile packaging ensures readiness and convenience for every case.

FAQ's of ERCP Short Nose Sphincterotome - Triple Lumen - 20 mm:

Q: How is the ERCP Short Nose Sphincterotome used during ERCP procedures?

A: The device is employed to perform endoscopic sphincterotomy by advancing its short nose tip through the endoscope to the sphincter of Oddi. Its triple lumen allows for guidewire placement, injection of contrast medium, and controlled electrosurgical incision, all in a single step.

Q: What benefits does the short nose and triple lumen configuration provide?

A: The short nose enhances precise targeting and cannulation of the sphincter, particularly in anatomically challenging cases. The triple lumen design supports simultaneous guidewire, injection, and cutting functions, improving procedural efficiency and reducing instrument changes.

Q: When should this sphincterotome be used?

A: The device is intended for use during endoscopic retrograde cholangiopancreatography (ERCP) when sphincterotomy and precise duct access are required, such as in the management of biliary or pancreatic stones, strictures, or diagnostic interventions.

Q: What makes the device safe and effective for patients?

A: It is constructed from high-tensile medical alloys and medical-grade stainless steel/PTFE, ensuring durability and high performance. Being latex-free, sterile, and single-use, it minimizes infection risk and patient allergy concerns. Its radiopaque tip and catheter markings aid precise placement and incision under fluoroscopy.

Q: How do the radiopaque features and visible depth markings assist clinicians?

A: The radiopaque tip and distal segment, along with clear catheter markings, facilitate accurate placement and cutting range assessment under fluoroscopic imaging. This visibility is crucial for minimizing procedural risk and achieving optimal sphincterotomy outcomes.

Q: Where should the product be stored before use?

A: Store the sphincterotome in a cool, dry area away from direct sunlight, in its original sterile blister packaging, until the time of use. Proper storage is essential for maintaining sterility and device integrity.
