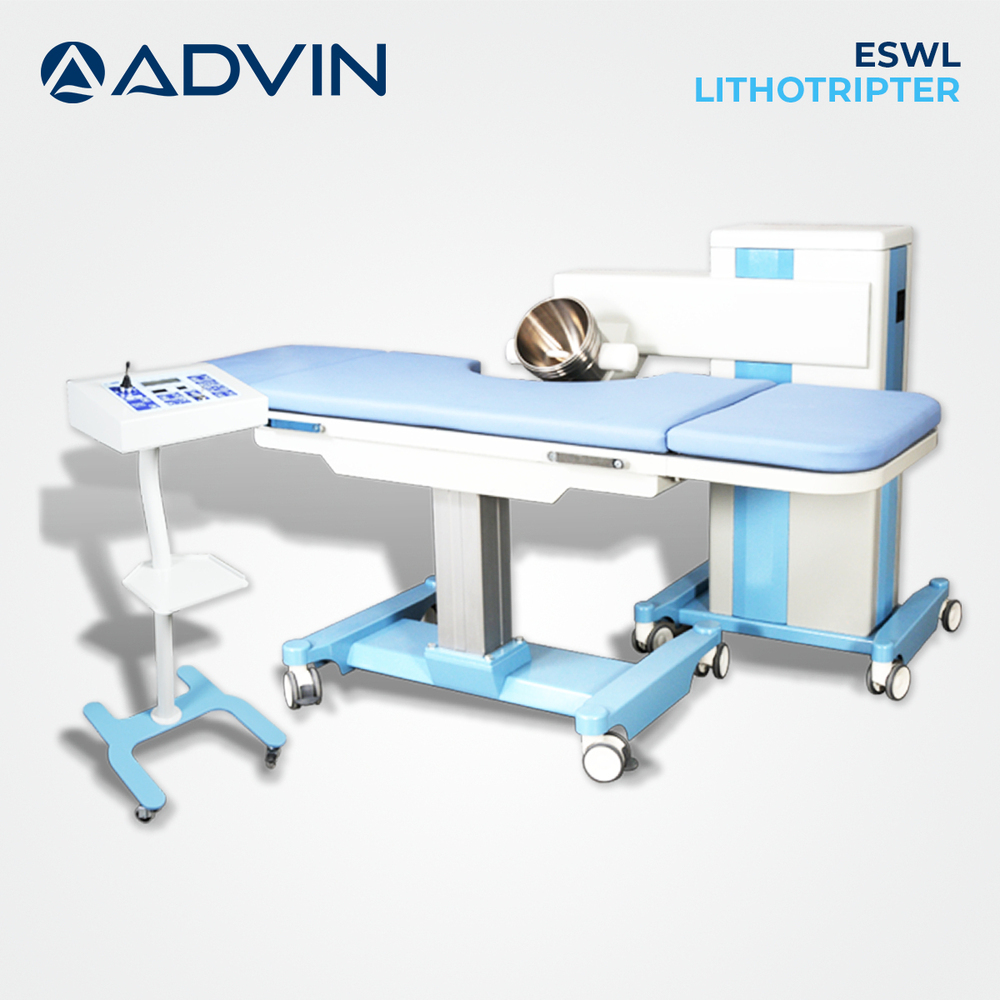

ESWL Lithotripter

Price 45000 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

ESWL Lithotripter Specification

Frequency
Shock frequency adjustable: 0.5 - 2 Hz

Usage Type
Hospital / Clinical use

Display Type
High-resolution LCD touch display

Measurement Range
Stone size from 2 mm up to 30 mm

Accuracy
Stone localization accuracy 2 mm

Storage Instructions
Store in a dry, clean, dust-free environment

Function
Fragmentation of urinary tract stones via focused shock waves

Features
Integrated fluoroscopy and ultrasound imaging, Touch screen interface, Precise targeting system, Automatic output adjustment, Patient data storage

Instruments Type
Urology therapeutic device

Equipment Type
ESWL Lithotripter

Material
High-grade medical stainless steel & high-impact polymers

Condition
New

Technology
Extracorporeal Shock Wave Lithotripsy (ESWL), electrohydraulic shock wave generation

Portable
No (movable on wheels)

Wall Mounted
No, mobile/compact table type

Magnification Power
Up to 15x (in imaging system)

Real-Time Operation
Yes

Noise Level
< 70 dB

Operating Type
Automatic / Semi-Automatic

Use
Non-invasive treatment of kidney, bladder, and ureteral stones

Power Source
Electric

Power Consumption
Approx 1.5 KW

Voltage
220-240 V, 50/60 Hz

Dimension (L*W*H)
2100mm x 880mm x 1200mm (main console)

Weight
Approx 220 kg (main unit)

Color
White/Blue

User Interface
Multi-language, programmable treatment protocols

Imaging System
Integrated fluoroscopy and ultrasound guided stone localization

Maintenance
Annual service recommended (user serviceable parts included)

Shock Wave Energy Output
Selectable 20 120 mJ (step adjustable)

Coupling Medium
Water cushion and gel-based coupling

Patient Capacity
Up to 200 kg

Pre-set Programs
Yes, multiple energy/frequency presets

Remote Control
Available for physician operation

Patient Table Movement
Motorized (multi-directional adjustments: X, Y, Z-axis)

Accessories Included
Positioning aids, gel cushions, power cable, instruction manual

System Cooling
Fully integrated water cooling system for continuous operation

Safety Features
Emergency stop, Overload protection, Dose monitoring

About ESWL Lithotripter

Advin ESWL is a highly effective, budget-friendly, robust & esthetic system designed for the best performance in ESWL operation.

Its performance is optimized to meet the expectations by carefully selected features. In Operation, it is indicated for all of the urinary system tract stones suitable for ESWL and typical stone-free rate is over 95 %.

The system can be operated with both a C-arm X-ray imaging system and a spherical ultrasound attachment for the stone localization. With a very short break-even term, ESWL is the right choice for your urology clinic to start a profitable business.

Advanced Features:

Non-invasive, so there is no risk of infection, bleeding or pain.
No special infrastructural requirement.
Safe & effective
Use Focusing Shock Waves to breakdown a stone into small pieces.
No General Anesthesia
Short Treatment Time
Convenience
Wide Movement Range
Compatible with patient & doctor
C-Arm With X-ray Imaging System

Advanced Imaging and Precision Targeting

This ESWL Lithotripter features integrated fluoroscopy and ultrasound technologies to accurately localize urinary tract stones. With up to 15x image magnification and a precise targeting system, clinicians can efficiently plan treatments and monitor progress in real-time, ensuring optimal fragmentation of stones measuring 2 mm to 30 mm. The motorized, multi-directional patient table further enhances positioning accuracy and clinical outcomes.

User-Friendly Operation and Programmable Protocols

The device offers an intuitive touch screen LCD interface, supporting multiple languages and customizable treatment settings. Physicians can select from preset energy and frequency programs, or tailor shock wave output from 20 to 120 mJ to suit individual patient needs. With a fully integrated remote control and automatic output adjustments, treatments can be delivered safely, consistently, and with maximum patient comfort.

Robust, Safe, and Continuous Performance

Constructed from high-grade stainless steel and medical polymers, the ESWL Lithotripter is designed for continuous hospital use. Its integrated water cooling system, extensive safety features-such as emergency stop, overload protection, and dose monitoring-and recommended annual service ensure dependability. Patient comfort is maximized with included gel cushions and positioning aids, supporting individuals up to 200 kg.

FAQ's of ESWL Lithotripter:

Q: How does the ESWL Lithotripter locate and target urinary tract stones?

A: The system uses integrated fluoroscopy and ultrasound imaging to provide precise, real-time localization of urinary tract stones. Users can magnify images up to 15x, and the targeting system ensures stone localization within 2 mm accuracy, improving treatment efficacy.

Q: What is the process for performing a procedure with this Lithotripter?

A: Patients are positioned on the motorized table, which offers X, Y, and Z-axis adjustments. After localizing the stone using the imaging system, the physician programs energy and frequency via the touch screen or remote control. Shock waves are delivered through a water cushion or gel coupling medium, breaking stones into fragments for natural elimination.

Q: When should this device be used for stone treatment?

A: This ESWL Lithotripter is suitable for non-invasive treatment of kidney, bladder, and ureteral stones measured between 2 mm and 30 mm. It is typically used when stones cannot be naturally passed or cause symptoms such as pain, infection, or urinary obstruction.

Q: Where can the ESWL Lithotripter be safely operated and stored?

A: The device is designed for use in hospitals and clinical settings. It should be stored in a dry, clean, dust-free environment when not in use to maintain optimal performance and hygiene standards.

Q: What are the primary benefits of using this Lithotripter system?

A: Key advantages include precise and non-invasive stone fragmentation, programmable protocols for tailored treatment, integrated safety features, rapid patient setup, and continuous operation without overheating, promoting quick recovery and minimizing patient discomfort.

Q: How does the cooling and noise management system work?

A: A fully integrated water cooling system ensures continuous operation without risk of overheating. The device's advanced engineering limits operational noise to below 70 dB, helping maintain a comfortable clinical environment.

Q: What maintenance is required, and how user serviceable is the device?

A: Annual professional service is recommended to maintain performance and safety. Certain components are user-serviceable, and a comprehensive instruction manual with all accessories is included to guide routine care and part replacements.
