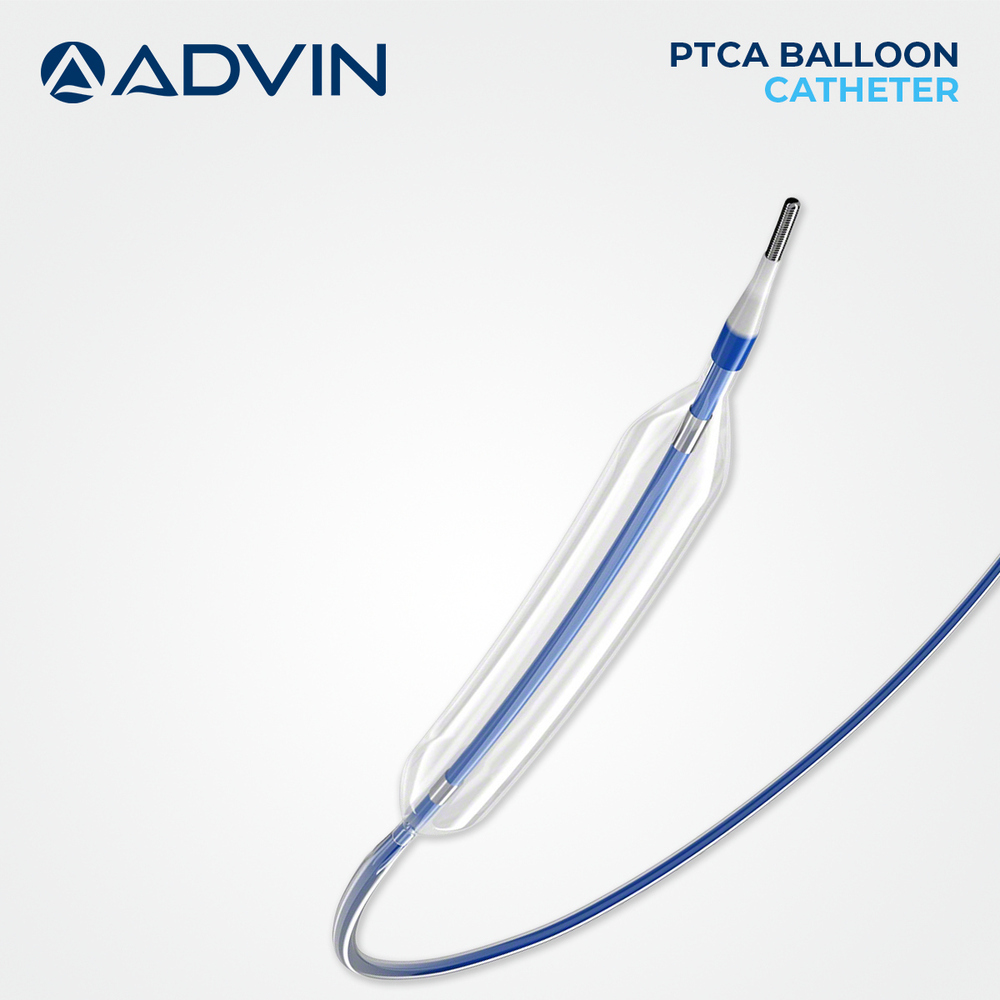

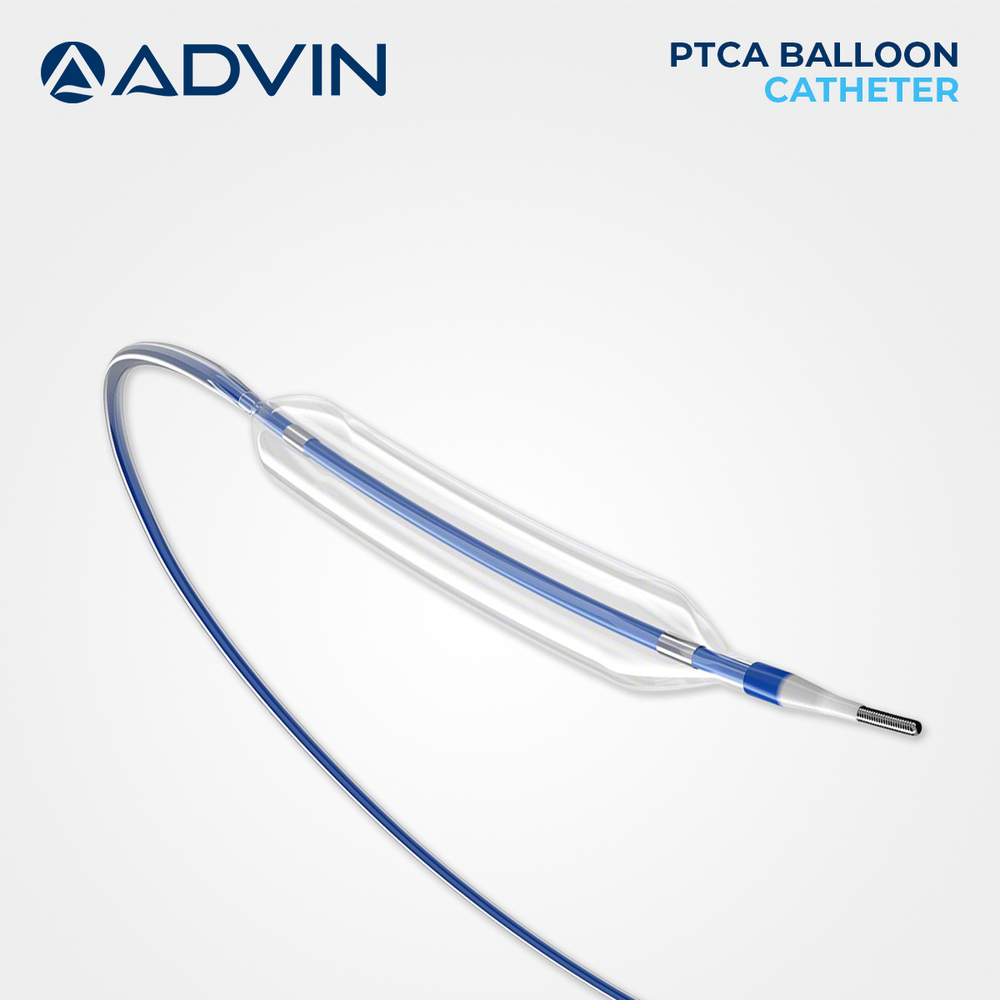

Flexible Coronary Dilation Catheters

Name: Flexible Coronary Dilation Catheters
Brand: Advin Health Care
Price: 55 USD
Availability: InStock

Price 55 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Flexible Coronary Dilation Catheters Specification

Usage Type
Disposable, Single-Use

Function
Dilation of Narrowed or Blocked Coronary Arteries

Instruments Type
Interventional Cardiology Device

Measurement Range
Balloon Diameter: 1.5 mm to 4.0 mm; Balloon Length: 6 mm to 40 mm

Features
Flexible, Kink Resistant, Radiopaque Marker for Positioning, High Trackability

Accuracy
Precise Dilation Control

Shelf Life
3-5 Years (Typical)

Storage Instructions
Store in Cool, Dry Place, Away from Direct Sunlight

Equipment Type
Flexible Coronary Dilation Catheter

Material
Medical Grade Polyurethane / Nylon

Condition
New

Technology
PTCA Balloon Catheter Technology

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Silent Operation

Operating Type
Manual

Use
Coronary Artery Dilation during Angioplasty

Power Source
Not Required (Manual)

Dimension (L*W*H)
Varies by Balloon and Shaft Size

Weight
Lightweight (Varies)

Color
Blue/Transparent

Sterility
EO Sterilized

Balloon Compliance
Low (Non-Compliant) or Moderate (Semi-Compliant)

Packaging
Sterile Blister Pack

Balloon Inflation Pressure Range
Up to 18 atm (varies by model)

Indication
PTCA (Percutaneous Transluminal Coronary Angioplasty) Procedures

Radiopacity
High, for Easy Fluoroscopic Visualization

Marker Band Material
Platinum-Iridium

Balloon Material
Non-Compliant or Semi-Compliant

Tip Type
Atraumatic, Tapered

Guidewire Compatibility
Compatible with 0.014" Guidewires

Catheter Shaft Length
Approximately 140 cm

About Flexible Coronary Dilation Catheters

Advin Health Care is a trusted manufacturer of Flexible Coronary Dilation Catheters designed to meet international quality standards. These catheters are used in interventional cardiology procedures to dilate narrowed coronary arteries, restore optimal blood flow, and support effective treatment during angioplasty interventions.

Key Features

Highly flexible design for easy navigation through tortuous coronary anatomy
Controlled and uniform balloon expansion for effective dilation
Excellent trackability for smooth vessel access
Soft tip design for atraumatic vessel interaction
Radiopaque markers for precise positioning under imaging guidance
Compatible with standard guide wires and angioplasty systems

Certifications

We are certified with CE, ISO 13485, and ISO 9001 standards.

Product Keywords

Flexible Coronary Dilation Catheter, Coronary Balloon Catheter, PTCA Balloon Catheter, Angioplasty Balloon Device, Coronary Dilatation Catheter, Interventional Cardiology Balloon

, , , , , .

Catter de dilatacin coronaria flexible, catter de baln coronario, catter de baln para PTCA, dispositivo de baln para angioplastia, catter de dilatacin coronaria, baln de cardiologa intervencionista

Cathter de dilatation coronaire flexible, cathter ballonnet coronaire, cathter ballonnet pour angioplastie coronaire transluminale percutane (ACTP), dispositif ballonnet d'angioplastie, cathter de dilatation coronaire, ballonnet de cardiologie interventionnelle

Advanced Balloon Technology for Coronary Dilation

Utilizing PTCA balloon catheter technology, this device employs non-compliant or semi-compliant balloon materials, allowing precise and controlled expansion within a balloon diameter range of 1.5 mm to 4.0 mm and lengths from 6 mm to 40 mm. The flexible design promotes kink resistance and maneuverability through intricate coronary anatomy, enhancing procedural safety.

Designed for Safety, Comfort, and Precision

Featuring an atraumatic, tapered tip and radiopaque platinum-iridium markers, this catheter ensures gentle vessel navigation and easy fluoroscopic localization. Sterilized with EO and provided in single-use blister packaging, it safeguards patient safety while delivering accurate dilation during angioplasty with minimal trauma.

Reliable Performance in Every Procedure

With a typical shelf life of 3-5 years and lightweight, portable construction, these catheters are engineered for silent, real-time manual operation without the need for external power. The device is essential for interventional cardiologists aiming for consistent results in coronary interventions.

FAQ's of Flexible Coronary Dilation Catheters:

Q: How is the Flexible Coronary Dilation Catheter used during angioplasty procedures?

A: The catheter is advanced over a 0.014" guidewire to the site of coronary artery narrowing. Its balloon is then inflated manually up to the specified pressure (up to 18 atm, depending on the model) to compress plaque and widen the vessel, restoring blood flow.

Q: What is the benefit of using non-compliant or semi-compliant balloons in this catheter?

A: Non-compliant balloons provide precise, controlled dilation with minimal expansion beyond their rated diameter, reducing the risk of vessel injury. Semi-compliant balloons offer moderate adaptability to vessel contours, balancing control and flexibility for varied lesion types.

Q: Where should these catheters be stored before use?

A: They should be stored in a cool, dry environment away from direct sunlight, as specified by the manufacturer. This preserves sterility and maintains material integrity throughout the device's 3-5 year shelf life.

Q: What are the key safety features of this coronary dilation catheter?

A: Safety features include an atraumatic, tapered tip to prevent vessel injury, platinum-iridium radiopaque marker bands for accurate positioning under fluoroscopy, and single-use, EO sterilized packaging to minimize infection risk.

Q: What makes this catheter suitable for a variety of coronary interventions?

A: Its compatibility with 0.014" guidewires, range of balloon sizes (diameter and length), kink resistance, high radiopacity, and flexible yet durable shaft make it appropriate for a broad spectrum of coronary lesions and anatomy during PTCA.

Q: When should the Flexible Coronary Dilation Catheter be disposed of?

A: This catheter is intended for single use only and should be properly discarded after each procedure to ensure patient safety and maintain compliance with infection control protocols.

Q: How does the radiopaque marker enhance the positioning process during procedures?

A: The platinum-iridium marker bands provide clear visibility under fluoroscopic imaging, allowing for real-time, precise localization of the balloon during inflation, which is crucial for optimal dilation and stent placement.
