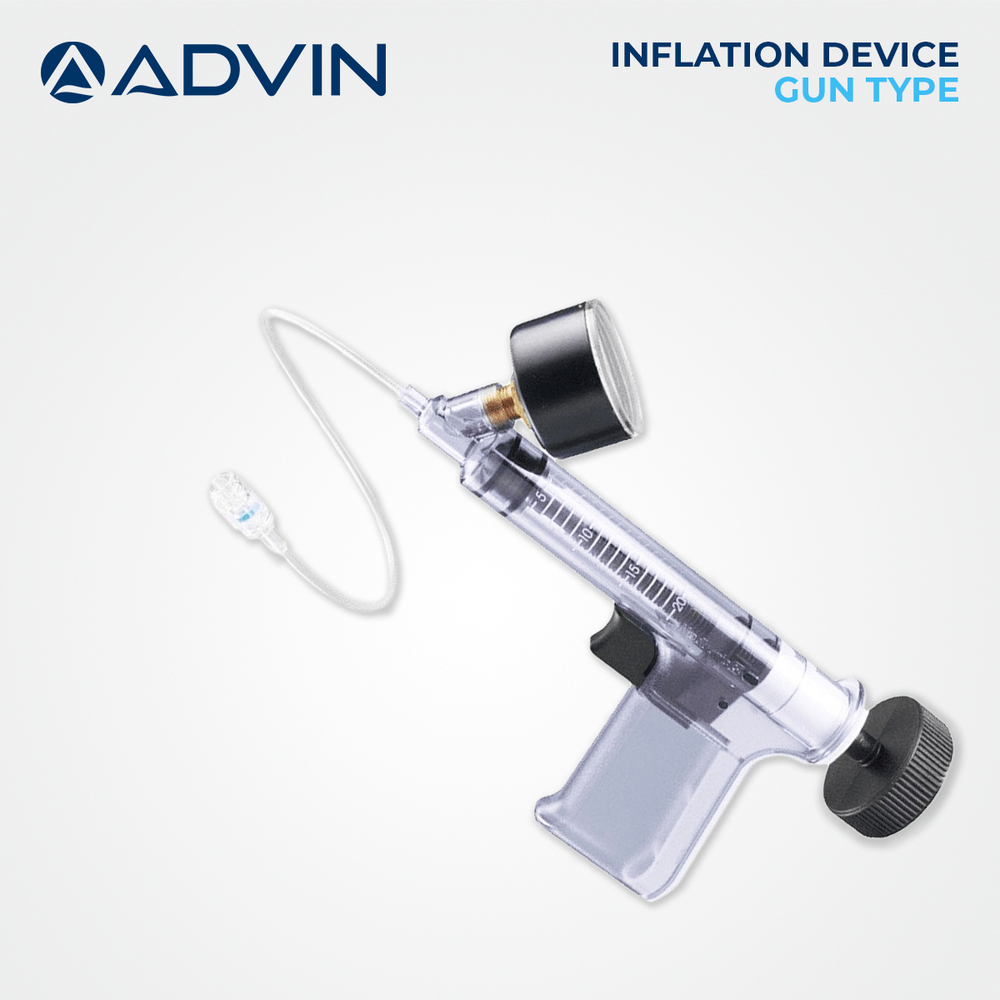

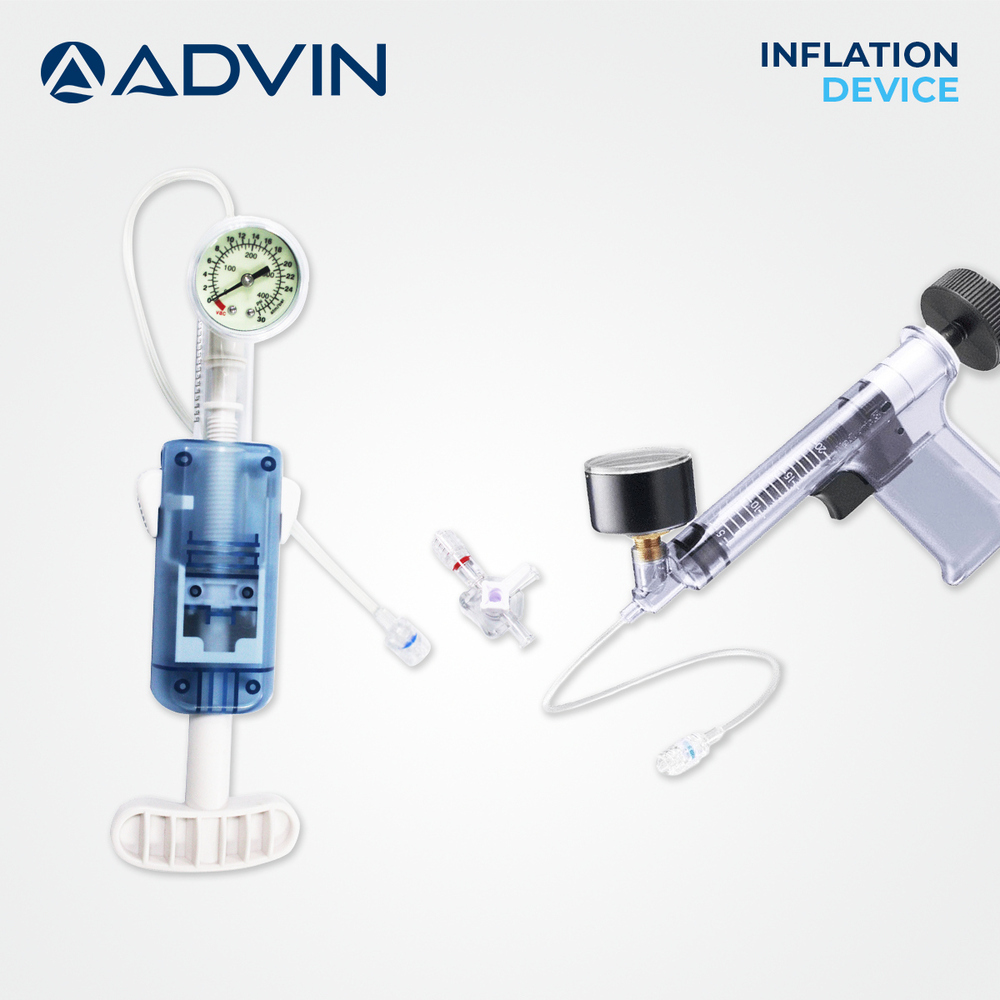

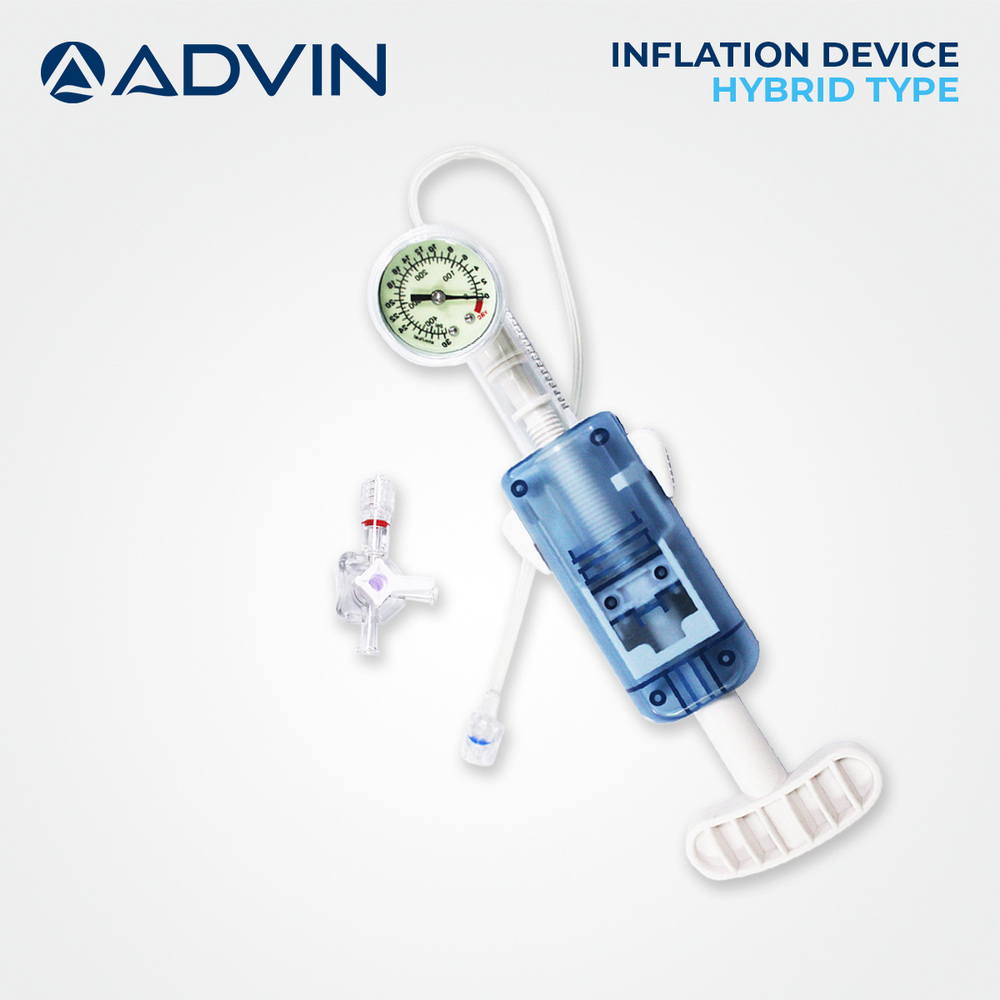

Inflation Device Cardiology

Name: Inflation Device Cardiology
Brand: Advin Health Care
Price: 20 USD
Availability: InStock

Price 20 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Inflation Device Cardiology Specification

Shelf Life
Up to 5 years (if unopened and properly stored)

Instruments Type
Medical device for interventional cardiology

Measurement Range
0-30 atm (0-441 psi) depending on model

Display Type
Analog gauge

Usage Type
Single patient use, disposable

Function
Controlled inflation and deflation of balloon catheters

Accuracy
High, 2% full scale

Storage Instructions
Store in a cool, dry place, away from sunlight

Features
Ergonomic grip, easy gauge reading, one-handed operation, leak-proof connector

Equipment Type
Inflation Device for Cardiology

Material
Medical grade polycarbonate and polymer

Condition
New

Technology
Manual inflation technology with precision control

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Silent / Negligible

Operating Type
Handheld, manual operation

Use
Angioplasty, balloon catheter inflation, cardiovascular procedures

Power Source
Manual

Dimension (L*W*H)
Standard size (customizable as per model)

Weight
Lightweight, generally under 200g

Color
Transparent with blue or clear components

Latex Free
Yes

Connector Type
Luer lock

Gauge Type
Rotatable, easy-to-read analog dial

Handle Design
Pistol grip or syringe style options

Packaging
Individually packed in sterile pouch

Leakage Test
100% individually tested for air and fluid leakage

Sterility
Sterile, ready to use

Pressure Gauge Range
0-30 atm (detailed range as per specific model)

About Inflation Device Cardiology

Advin Health Care is a trusted manufacturer of Cardiology Inflation Devices designed to meet international quality standards. These devices are used in interventional cardiology procedures to precisely control the inflation and deflation of balloon catheters during angioplasty, ensuring accurate pressure management and optimal procedural outcomes.

Key Features

High-precision pressure control for accurate balloon inflation
Ergonomic design for easy handling and operation
Clear pressure gauge for real-time monitoring
Leak-proof construction for enhanced safety
Compatible with standard angioplasty balloon catheters

Certifications

We are certified with CE, ISO 13485, and ISO 9001 standards.

Product Keywords

Inflation Device Cardiology, Balloon Inflation Device, Angioplasty Inflation Syringe, PTCA Inflation Device, Pressure Inflation Device, Cath Lab Inflation Tool

, , , , , .

Dispositivo de inflado para cardiologa, dispositivo de inflado de baln, jeringa de inflado para angioplastia, dispositivo de inflado para PTCA, dispositivo de inflado a presin, herramienta de inflado para laboratorio de cateterismo

Dispositif de gonflage en cardiologie, dispositif de gonflage de ballonnet, seringue de gonflage pour angioplastie, dispositif de gonflage pour angioplastie coronaire transluminale percutane (ACTP), dispositif de gonflage sous pression, outil de gonflage pour salle de cathtrisme cardiaque

Precision and Reliability for Cardiology Procedures

Our inflation device empowers interventional cardiology professionals with precise manual inflation and deflation of balloon catheters. The analog pressure gauge, with a range of up to 30 atm, delivers high accuracy in real-time, essential for successful angioplasty and cardiovascular interventions. The design ensures secure handling and stability during critical procedures.

Ergonomic Design and User-Focused Features

Choose between pistol grip or syringe style handles for comfort and control. The device is lightweight, portable, and equipped with a leak-proof Luer lock connector for secure operation. The transparent materials and clear gauge markings support safety and simplicity, facilitating easy and intuitive use for healthcare providers.

Sterile, Safe, and Ready to Use

Each inflation device is individually packed in a sterile pouch, latex-free, and 100% leakage tested to maximize patient safety. Designed for single-use and backed by a shelf life of up to five years (unopened), our devices maintain quality when stored in cool, dry environments away from sunlight.

FAQ's of Inflation Device Cardiology:

Q: How does the inflation device ensure accurate pressure control during procedures?

A: The device uses a rotatable, easy-to-read analog gauge with a detailed 0-30 atm measurement range, providing high accuracy (within 2% of full scale). It allows real-time adjustment and monitoring to achieve precise balloon catheter inflation and deflation.

Q: What are the main benefits of the Luer lock connector and leak-proof design?

A: The Luer lock connector ensures a secure, leak-proof connection between the device and balloon catheter, reducing the risk of air or fluid leaks. This feature helps maintain sterility and reliable pressure during critical cardiology procedures.

Q: Where and when should the inflation device be used?

A: This inflation device is designed for use in hospitals, catheterization labs, or cardiovascular clinics during interventional cardiology procedures like angioplasty and balloon catheter inflation. It is intended for single patient use to uphold infection control standards.

Q: What steps are involved in the process of using the inflation device?

A: First, remove the sterile device from its pouch and connect it to the balloon catheter via the Luer lock. Use the ergonomic handle to manually operate the device, while monitoring the pressure on the analog gauge. After the procedure, dispose of the device according to medical protocols.

Q: What makes this inflation device safe for all patients?

A: The device is made from medical grade polycarbonate and polymer, is latex-free (preventing allergies), and is sterilized and individually tested for air and fluid leakage. Its disposable, single-use design further minimizes infection risks.

Q: How and where should the inflation device be stored?

A: Keep the device in its original pouch, stored in a cool, dry place away from direct sunlight. Proper storage ensures up to five years of shelf life and maintains the product's sterility and integrity.

Q: What distinguishes this device technologically from powered alternatives?

A: Featuring manual inflation technology, this device offers precision control and silent operation without the need for electricity or batteries. Its simple, hand-operated mechanism allows reliable function, portability, and ease of use in both standard and challenging clinical settings.
