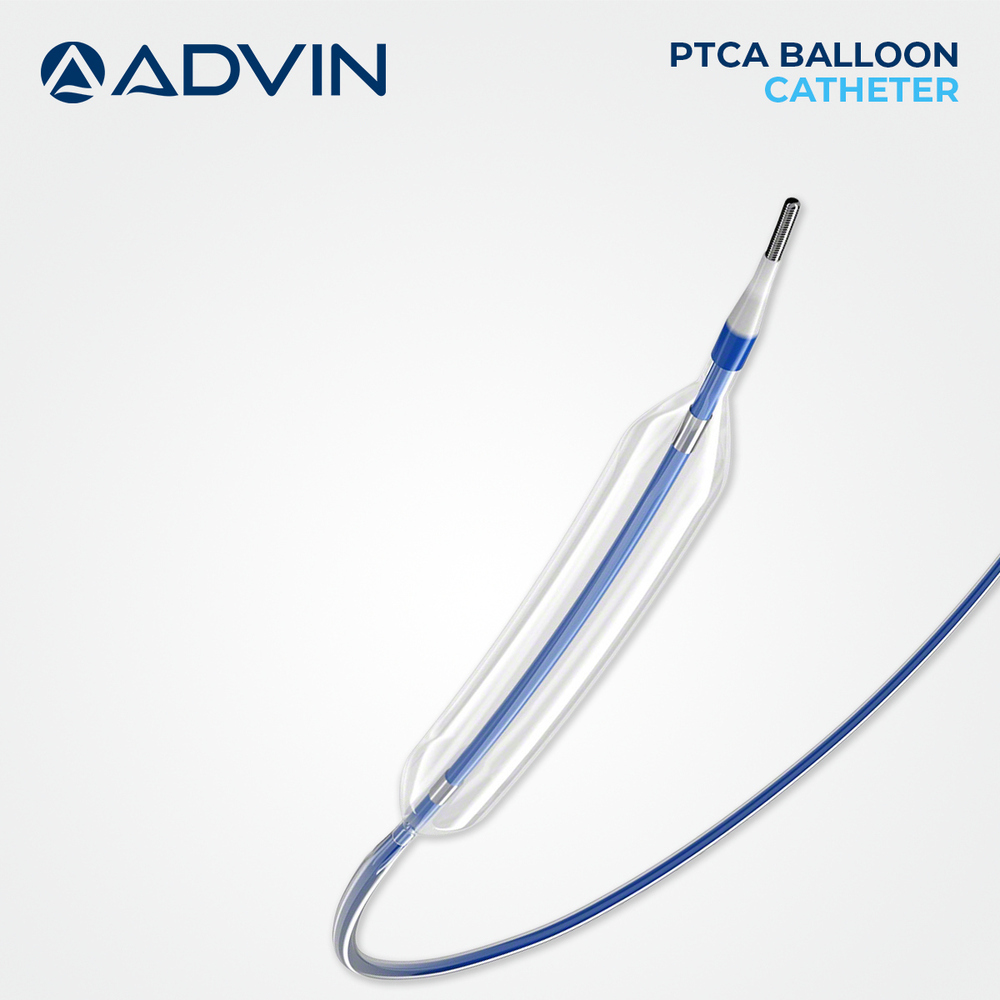

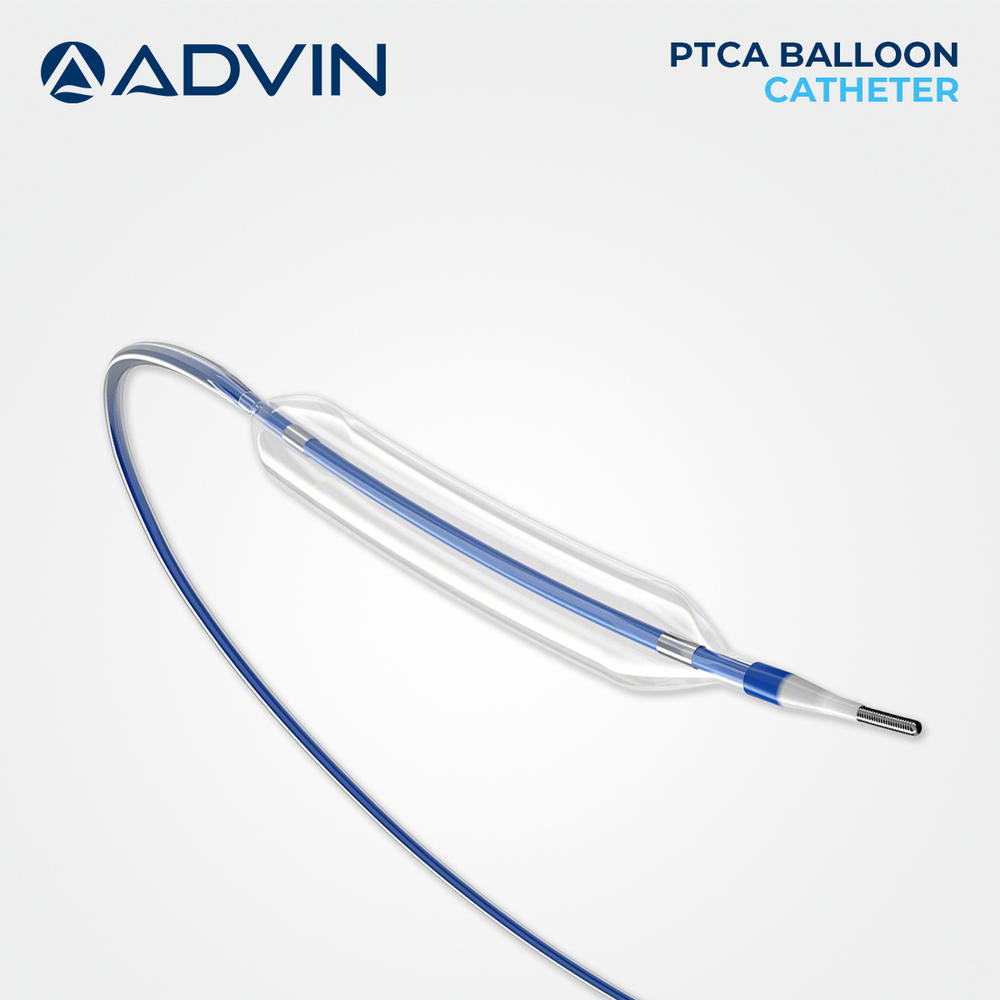

Interventional Balloon Catheter Systems

Name: Interventional Balloon Catheter Systems
Brand: Advin Health Care
Price: 55 USD
Availability: InStock

Price 55 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Interventional Balloon Catheter Systems Specification

Measurement Range
Balloon diameter: 1.5-4.0 mm, Length: 8-40 mm

Function
Vessel dilation during angioplasty

Features
Flexible, Radiopaque markers, High Trackability, Soft tip

Usage Type
Single Use

Accuracy
High position accuracy (due to radiopaque markers)

Instruments Type
Interventional Cardiology Device

Shelf Life
3-5 Years (sealed)

Storage Instructions
Store in a cool, dry place; away from sunlight

Equipment Type
Interventional Balloon Catheter System

Material
Polyurethane / Medical Grade Polymer

Condition
Sterile, Disposable

Technology
PTCA (Percutaneous Transluminal Coronary Angioplasty)

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Silent

Operating Type
Manual

Use
Cardiovascular procedures, Angioplasty

Dimension (L*W*H)
Varies (Usually 140 cm length, 1.5-4.0 mm balloon diameter)

Weight
Lightweight (few grams)

Color
Blue / Transparent

Sterilization Method
Ethylene Oxide sterilized

Balloon Compliance
Non-compliant/ Semi-compliant

Tip Type
Soft, tapered tip for vessel entry

Burst Pressure
Up to 14 atm (varies by model)

Catheter Shaft
High kink resistance

Packaging
Sterile blister pouch in protective carton

Rated Pressure
12 atm (nominal)

Coating
Hydrophilic for enhanced navigation

Marker Bands
2 or 3 platinum-iridium markers

Guide Wire Compatibility
0.014 inch

About Interventional Balloon Catheter Systems

Advin Health Care is a trusted manufacturer of Interventional Balloon Catheter Systems designed to meet international quality standards. These systems are used in interventional cardiology and vascular procedures to dilate narrowed or obstructed vessels, restore optimal blood flow, and support effective treatment during angioplasty interventions.

Key Features

High-performance balloon for controlled and uniform vessel dilation
Excellent trackability for smooth navigation through vascular pathways
Flexible design for accessing complex and tortuous anatomy
Uniform pressure distribution for safe and effective expansion
Radiopaque markers for precise positioning under imaging guidance
Compatible with standard guide wires and angioplasty systems

Certifications

We are certified with CE, ISO 13485, and ISO 9001 standards.

Product Keywords

Interventional Balloon Catheter System, Angioplasty Balloon Catheter, PTCA Balloon System, Vascular Balloon Dilatation Device, Interventional Balloon Device, Coronary Balloon Catheter

, , , , ,

Sistema de catter baln intervencionista, catter baln para angioplastia, sistema baln PTCA, dispositivo de dilatacin vascular con baln, dispositivo baln intervencionista, catter baln coronario

Systme de cathter ballonnet interventionnel, cathter ballonnet d'angioplastie, systme de ballonnet pour angioplastie coronaire transluminale percutane (ACTP), dispositif de dilatation vasculaire par ballonnet, dispositif ballonnet interventionnel, cathter ballonnet coronaire

Enhanced Vessel Navigation and Safety

With its hydrophilic-coated, soft, tapered tip, the balloon catheter system is engineered for smooth and easy vessel entry. This design minimizes vascular trauma while ensuring excellent trackability and pushability through complex anatomies. Platinum-iridium markers provide precise balloon positioning for optimal procedure outcomes.

Reliable Performance and Safety Standards

This system is rated up to a nominal pressure of 12 atm and can withstand burst pressures up to 14 atm (model-dependent). High kink resistance of the catheter shaft ensures dependable navigation, while its medical-grade polymer construction guarantees durability. Sterilized by ethylene oxide and safely packaged, each unit is provided sterile for single-use only.

Versatility and Compatibility for Clinical Needs

Compatible with 0.014-inch guide wires, the system's dimensions (typically 140 cm shaft length, 1.5-4.0 mm balloon diameter) suit various angioplasty scenarios. Its non-compliant and semi-compliant balloon options address different vessel needs, providing clinicians versatility during percutaneous transluminal coronary angioplasty (PTCA) procedures.

FAQ's of Interventional Balloon Catheter Systems:

Q: How does the soft, tapered tip enhance vessel entry during angioplasty procedures?

A: The catheter's soft, tapered tip minimizes entry trauma and allows gentle and precise navigation through delicate or narrowed vessels, reducing the risk of vessel injury during insertion and positioning.

Q: What benefits does the hydrophilic coating provide during clinical use?

A: The hydrophilic coating significantly improves the catheter's lubricity, facilitating smoother advancement through tortuous or narrow vessels, thus enhancing trackability and overall procedural efficiency.

Q: When should a non-compliant versus a semi-compliant balloon be selected?

A: Non-compliant balloons are ideal for post-dilatation to maintain precise vessel diameter, while semi-compliant balloons allow slight expansion and can adapt better to vessel contours, making them suitable for initial lesion dilatation.

Q: Where is the Interventional Balloon Catheter System commonly utilized?

A: This device is predominantly used in cardiovascular centers and catheterization labs, particularly for percutaneous transluminal coronary angioplasty (PTCA) and other vessel dilation procedures.

Q: What is the recommended storage process for maintaining product integrity?

A: Store the system in its sealed blister pouch within a cool, dry environment, away from direct sunlight, to preserve sterility and maximize the 3-5 year shelf life.

Q: How do the radiopaque marker bands improve procedural accuracy?

A: Platinum-iridium marker bands provide clear visibility under fluoroscopy, ensuring precise balloon placement and high positioning accuracy during coronary interventions.
