Medical Inflation Device

Name: Medical Inflation Device
Brand: Advin Health Care
Price: 20 USD
Availability: InStock

Price 20 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Medical Inflation Device Specification

Measurement Range
0-30 ATM / 0-450 PSI

Features
Ergonomic Grip, Precise Gauge, Leak-proof, Clear Syringe Barrel

Function
Balloon Inflation and Deflation

Accuracy
2% Full Scale

Display Type
Analog Pressure Gauge

Storage Instructions
Store in cool, dry place, away from direct sunlight

Shelf Life
5 Years

Usage Type
Single Use/Disposable

Instruments Type
Interventional Cardiology/Angioplasty Accessory

Material
Medical Grade Polycarbonate and Metal

Condition
New

Technology
Manual Mechanical

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Silent/Negligible

Operating Type
Handheld

Use
Balloon dilation, angioplasty procedures

Power Source
Manual

Dimension (L*W*H)
Approx. 19 cm x 6 cm x 14 cm

Weight
Approx. 180 grams

Color
Transparent with Black Accents

Sterility
Sterile, EO Gas Sterilized

Packaging
Individually Packed in Blister Pack

Gauge Material
Stainless Steel

Pressure Release Mechanism
Built-in Quick Release Valve

Barrel Capacity
20 ml

Equipment Type
Medical Inflation Device (Gun Type)

Instruction for Use
Refer to IFU leaflet inside pack

Compliance Standard
CE, ISO 13485

Connector Type
Luer Lock

Operating Temperature Range
15C to 40C

Latex Content
Latex Free

About Medical Inflation Device

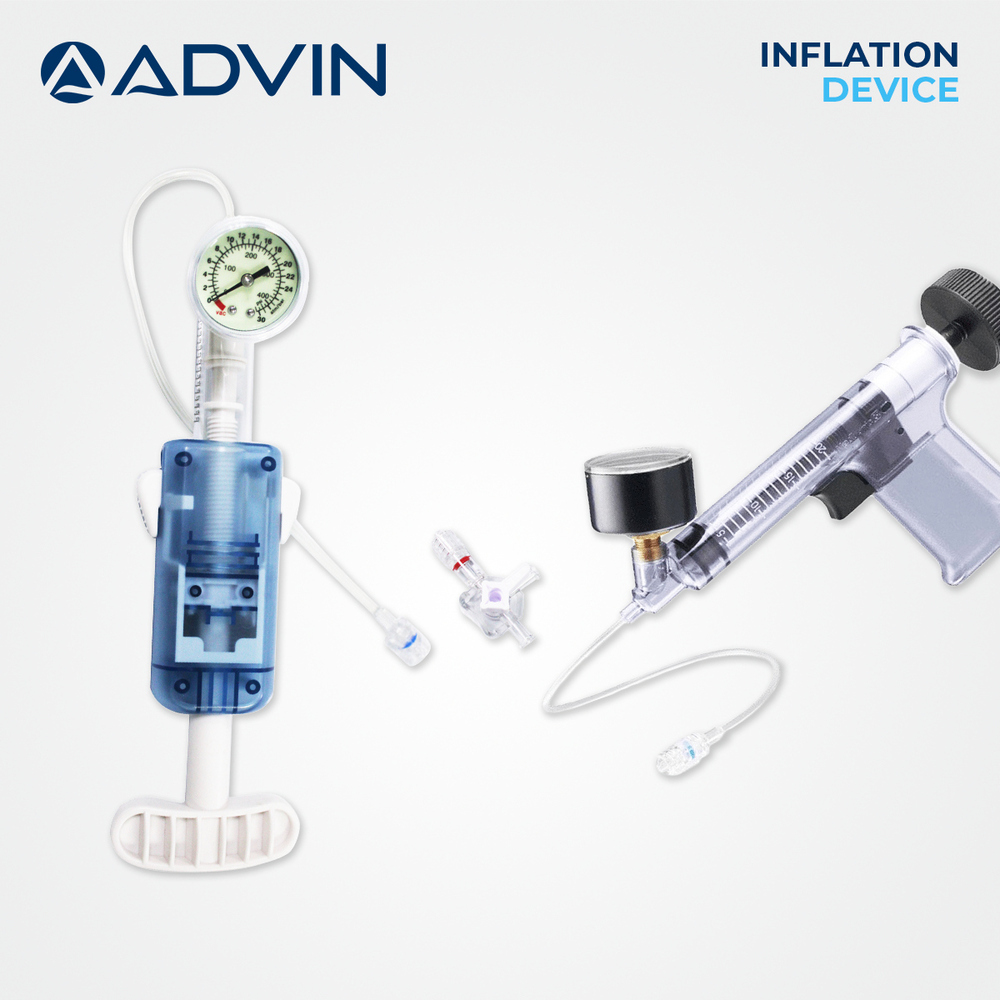

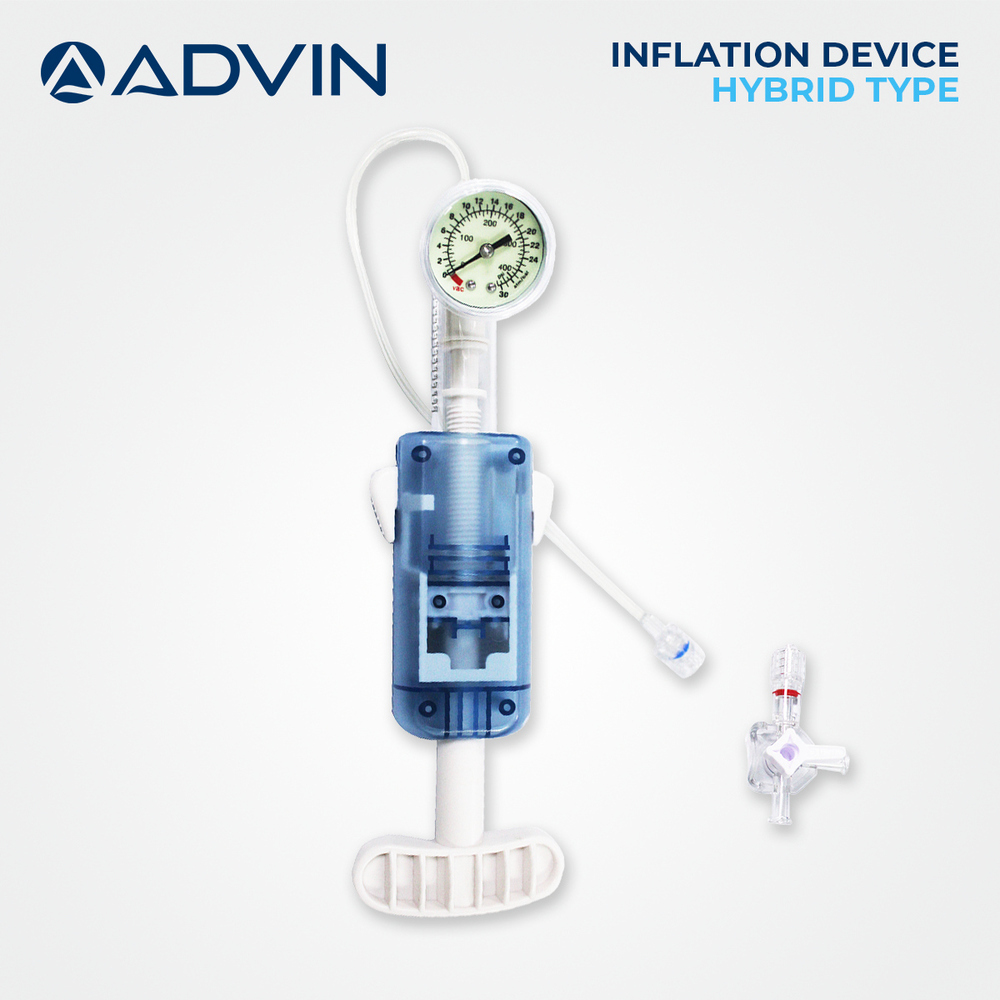

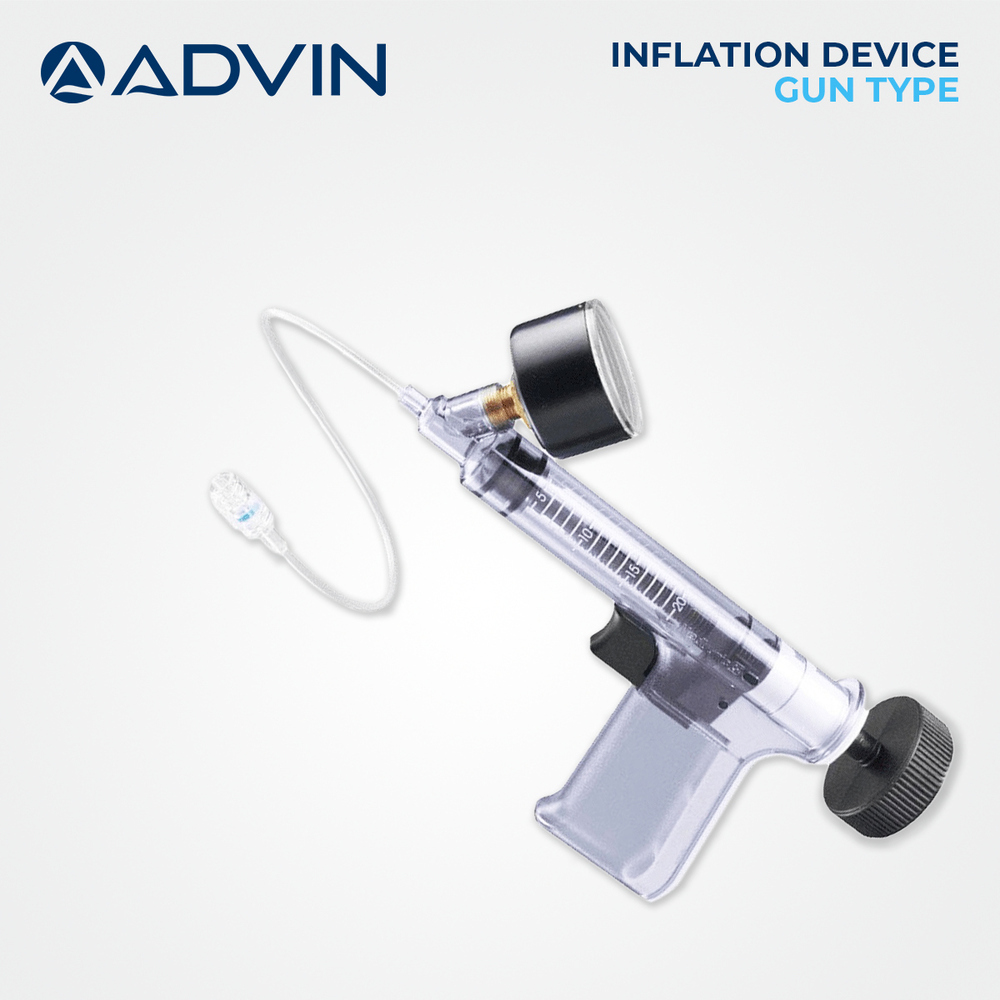

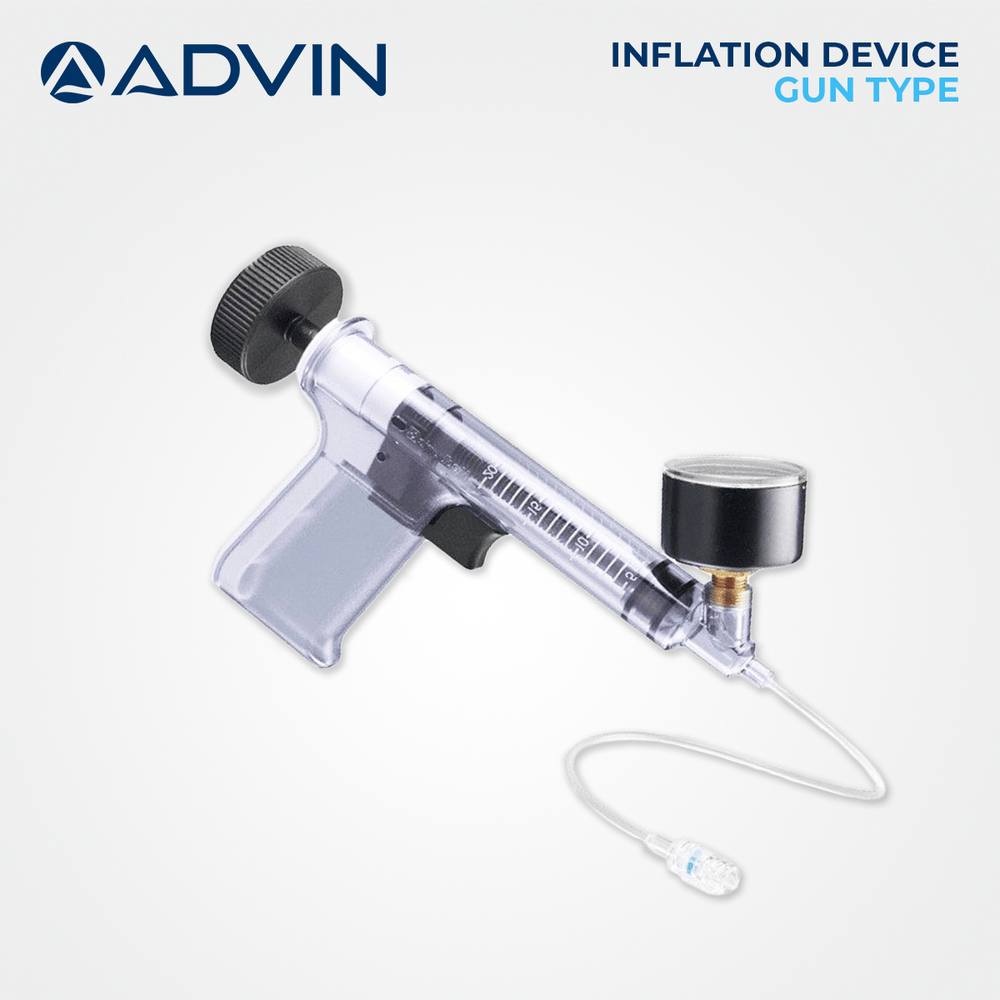

Inflation Device is used for the inflation of angioplasty devices requiring dilation. It features braided high pressure tubing with a rotating male luer fitting, a luminescent analog pressure gauge, and an extremely comfortable handle.

Advanced Features

Accurate Pressure Control
Precise manometer
No Leakage Up to 30bar Pressure
Unique ergonomically design
Simple Operation, stable Performance
Consistent pressure output

Certifications

We are certified with CE, ISO 13485, and ISO 9001 standards.

Product Keywords

Medical Inflation Device, Balloon Inflation Device, PTCA Inflation Device, Angioplasty Inflation Device, Interventional Cardiology Inflation Device, High-Pressure Inflation Device

, , , , , .

Dispositivo de inflado mdico, dispositivo de inflado de baln, dispositivo de inflado para PTCA, dispositivo de inflado para angioplastia, dispositivo de inflado para cardiologa intervencionista, dispositivo de inflado de alta presin

Dispositif de gonflage mdical, dispositif de gonflage de ballonnet, dispositif de gonflage pour angioplastie coronaire transluminale percutane (ACTP), dispositif de gonflage pour cardiologie interventionnelle, dispositif de gonflage haute pression

High Precision and Safety

This medical inflation device offers highly accurate pressure control (2% full scale) and a built-in quick release valve, ensuring patient safety during balloon angioplasty procedures. Its leak-proof design and stainless steel gauge guarantee reliability, while strict adherence to CE and ISO 13485 standards affirms quality.

Patient-Friendly Design

Constructed from medical-grade polycarbonate and metal, the device is latex free and ergonomically designed for a comfortable grip. Its transparent syringe barrel allows easy monitoring of fluids, and the silent, portable design supports a stress-free clinical environment during use.

Convenient and Sterile Use

Each inflation device is EO gas-sterilized and individually packed in a blister pack for assured sterility. With a 5-year shelf life and clear storage instructions (keep in a cool, dry place), the device is ready for immediate use in a range of clinical settings.

FAQ's of Medical Inflation Device:

Q: How is the Medical Inflation Device (Gun Type) used during angioplasty procedures?

A: This device is designed to manually inflate and deflate balloons used during angioplasty. It operates via a handheld gun mechanism, allowing clinicians to deliver and control precise volumes and pressures through its ergonomic grip and analog pressure gauge. Instructions are provided in the IFU leaflet inside every pack.

Q: What are the benefits of using this inflation device with a clear syringe barrel and quick release valve?

A: The transparent syringe barrel enables clinicians to clearly monitor fluid levels and air bubbles during operation, enhancing safety. The built-in quick release valve allows for rapid pressure discharge, minimizing procedural time and ensuring greater control in critical moments.

Q: Where should the device be stored before use to maintain sterility and product integrity?

A: For optimal safety and longevity, store the device in a cool, dry place away from direct sunlight. This preserves the sterile barrier provided by individual blister packaging, maintaining the device's condition up to its 5-year shelf life.

Q: What is the process for connecting the device to other interventional cardiology equipment?

A: The device features a standard luer lock connector, ensuring secure and leak-proof attachment to compatible balloon catheters or tubing, commonly used in angioplasty and balloon dilation procedures.

Q: When is this inflation device best used in clinical settings?

A: This device is ideal for use during interventional cardiology procedures requiring balloon inflation or deflation, particularly in angioplasty. As a single-use and sterile product, it is suitable for immediate and safe application in hospitals and clinics.
