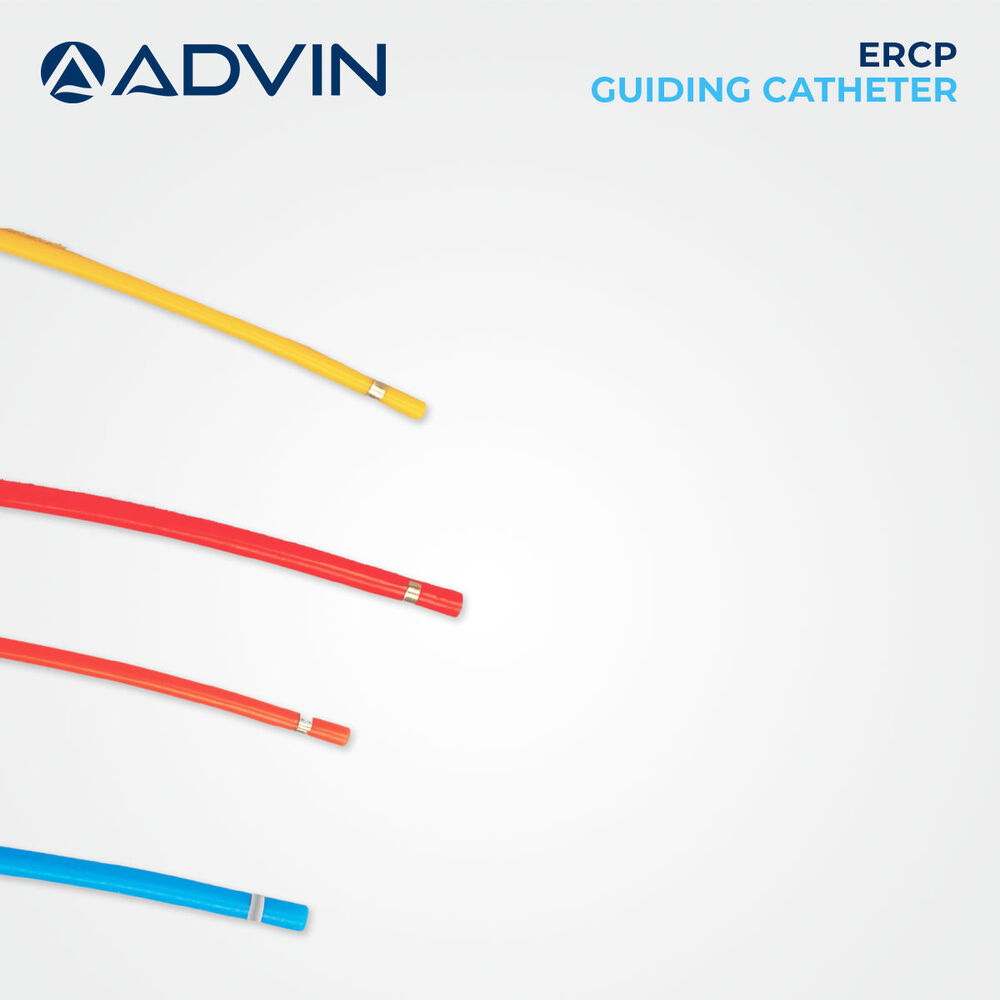

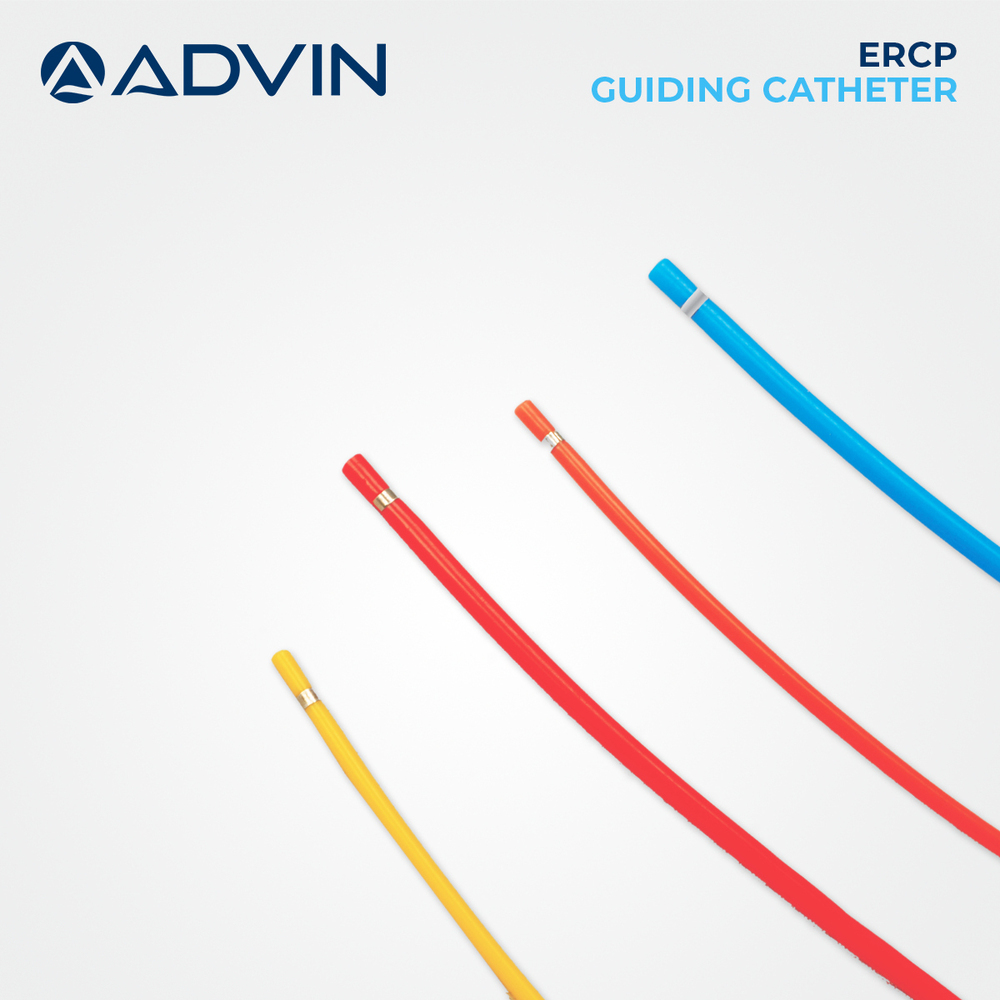

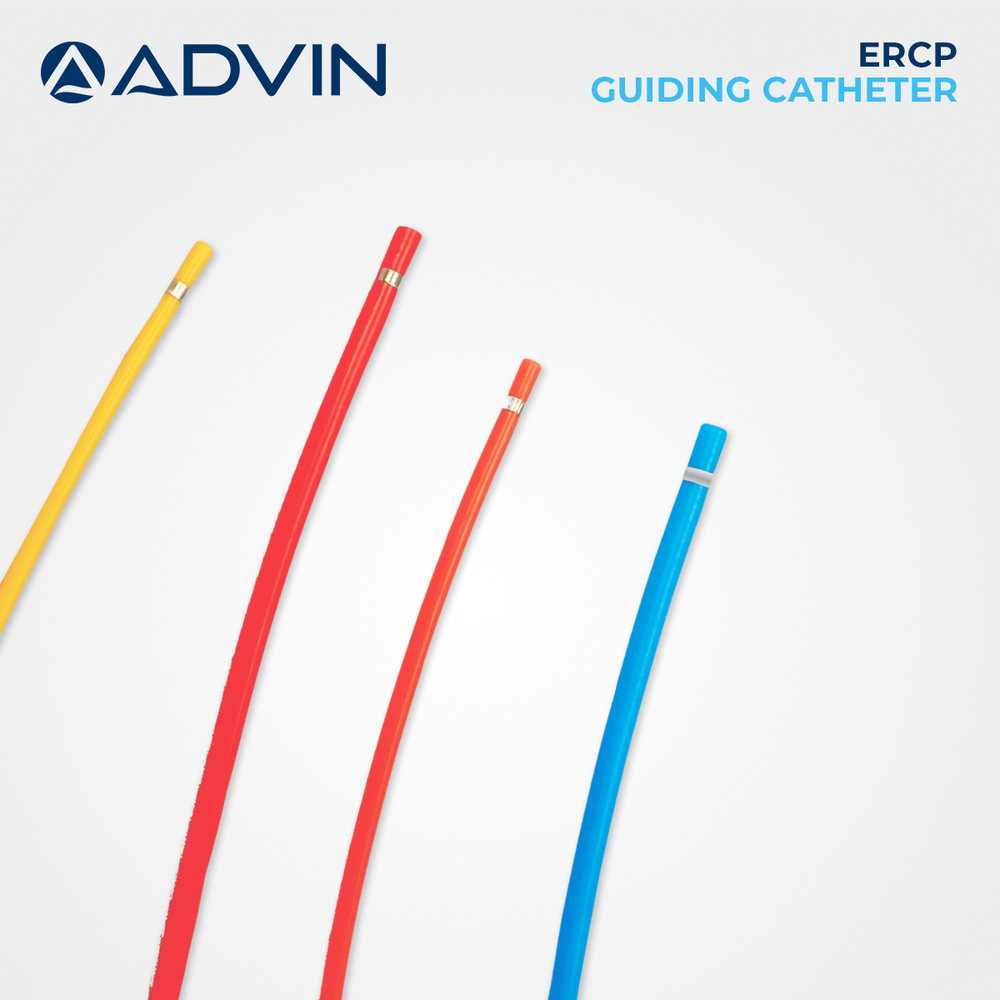

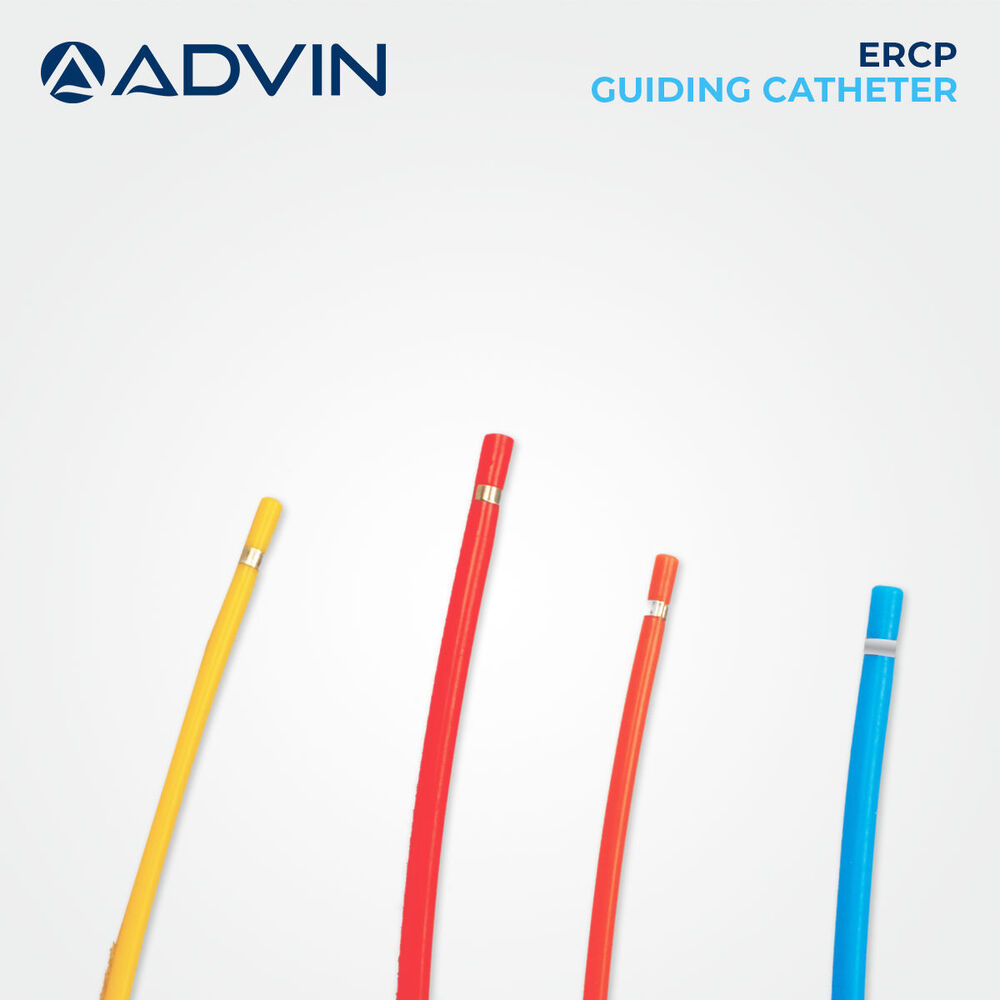

Pancreatic Duct Guiding Catheter 7 Fr

Price 6 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pancreatic Duct Guiding Catheter 7 Fr Specification

Features
Smooth Surface, Tapered Tip, Radiopaque Markings, Flexible Construction

Instruments Type
Interventional Medical Catheter

Function
Guides Instruments Through Pancreatic Duct

Accuracy
High Guidance Accuracy

Shelf Life
5 Years

Storage Instructions
Store in Cool, Dry Place; Avoid Direct Sunlight

Usage Type
Single Use (Disposable)

Equipment Type
Pancreatic Duct Guiding Catheter

Material
Medical Grade Polyurethane

Condition
New

Technology
Flexible, Radiopaque Design

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Silent

Operating Type
Manual

Use
Pancreatic Duct Guidance and Cannulation

Dimension (L*W*H)
Length: 120 cm; Diameter: 7 Fr

Weight
Approx. 15 grams

Color
Translucent with Markings

Expiration Date
Indicated on Packaging

Recommended Patient Group
Adult

Catheter Size
7 French

Manufacturer Certification
CE Marked

Connector Type
Universal Luer Fitting

Tip Type
Soft Tapered Distal Tip

Minimum Bend Radius
2 cm

Outer Diameter
7 Fr (2.33 mm)

Packaging Type
Sterile Blister Pack

Inner Diameter
Approximately 2.3 mm

Latex Content
Latex Free

Sterilization Method
Gamma Sterilization

Intended Application
Endoscopic Retrograde Cholangiopancreatography (ERCP)

Radiopacity
Full Length Radiopaque Stripe

About Pancreatic Duct Guiding Catheter 7 Fr

The Pancreatic Duct Guiding Catheter 7 Fr is a specialized access device used to facilitate accurate entry into the pancreatic duct during ERCP and related procedures. Its smooth lumen allows guidewires and accessories to pass through with minimal friction, ensuring better control throughout the intervention. The catheter is designed to enhance navigation in narrow or sensitive ductal regions while maintaining procedural safety. Advin Health Care manufactures this device using high-quality materials to support consistent performance and clinical reliability.

Advanced Features

Flexible design for smooth pancreatic duct entry
Supports reliable guidance of wires and accessories
Smooth internal lumen for reduced resistance
Constructed with durable, medical-grade materials

Exceptional Guidance and Safety

Engineered with high accuracy and a smooth, tapered tip, the catheter ensures reliable instrument navigation within the pancreatic duct. The latex-free, medical grade polyurethane design reduces risk of allergic reactions. Its radiopaque stripe enables clear imaging throughout the procedure, promoting safety and procedural efficacy.

Sterile, Single-Use Convenience

Each catheter is gamma sterilized and packaged in a sterile blister pack to prevent contamination. The single-use design significantly minimizes infection risk and simplifies workflow for healthcare professionals. Expiry date and shelf life are clearly indicated on the packaging to support safe inventory management.

FAQ's of Pancreatic Duct Guiding Catheter 7 Fr:

Q: How does the soft tapered distal tip benefit the pancreatic duct cannulation process?

A: The soft tapered distal tip allows for gentle and atraumatic navigation through the pancreatic duct, reducing the risk of tissue injury during cannulation procedures.

Q: What is the sterilization method used for this catheter and why is it important?

A: Gamma sterilization is used, ensuring a high level of sterility for each catheter. This method minimizes microbial contamination, making the device safe for single-use in clinical settings.

Q: When should the pancreatic duct guiding catheter be used?

A: This catheter is intended for use during Endoscopic Retrograde Cholangiopancreatography (ERCP) procedures in adult patients who require pancreatic duct guidance and cannulation.

Q: Where should the catheter be stored to maintain its integrity?

A: Store the catheter in a cool, dry environment, away from direct sunlight, to preserve its material quality and sterility throughout its shelf life.

Q: What advantages does the full-length radiopaque stripe offer during procedures?

A: The full-length radiopaque stripe provides optimal visibility under imaging, aiding real-time guidance and accurate placement of the catheter within the duct.
