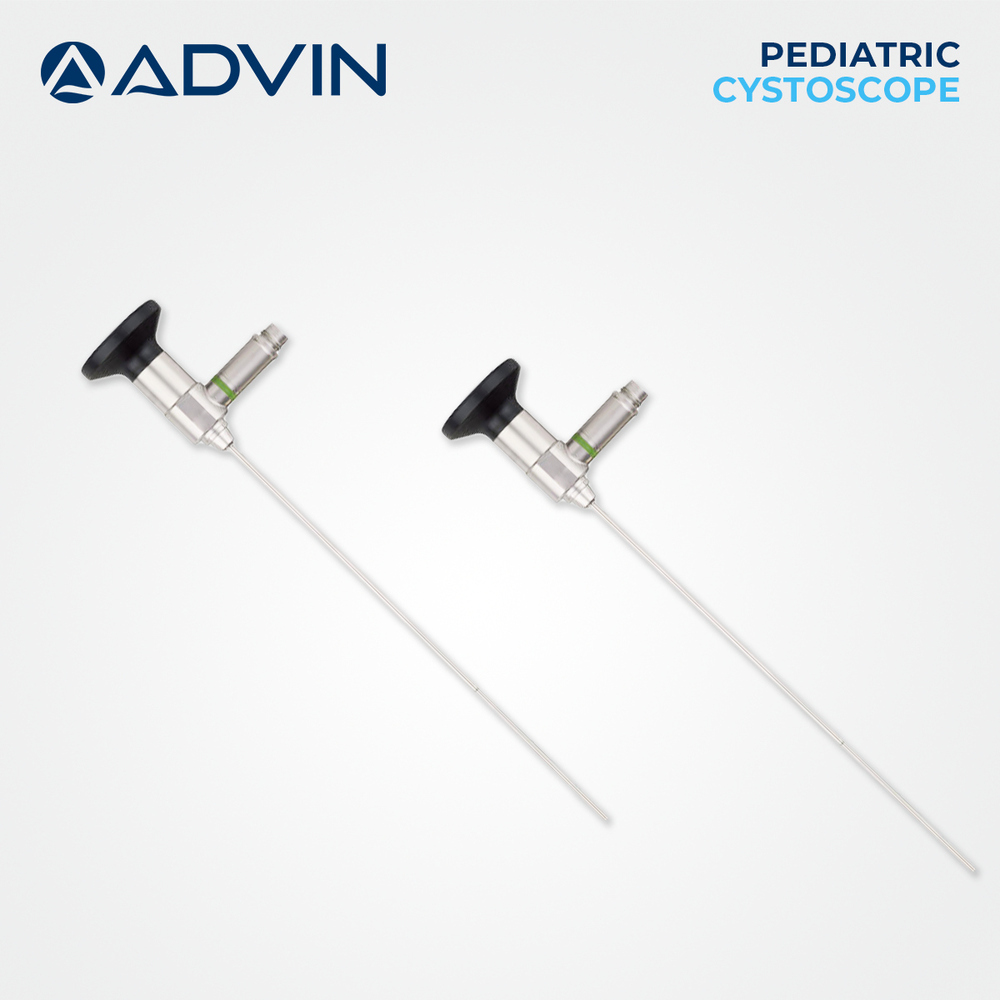

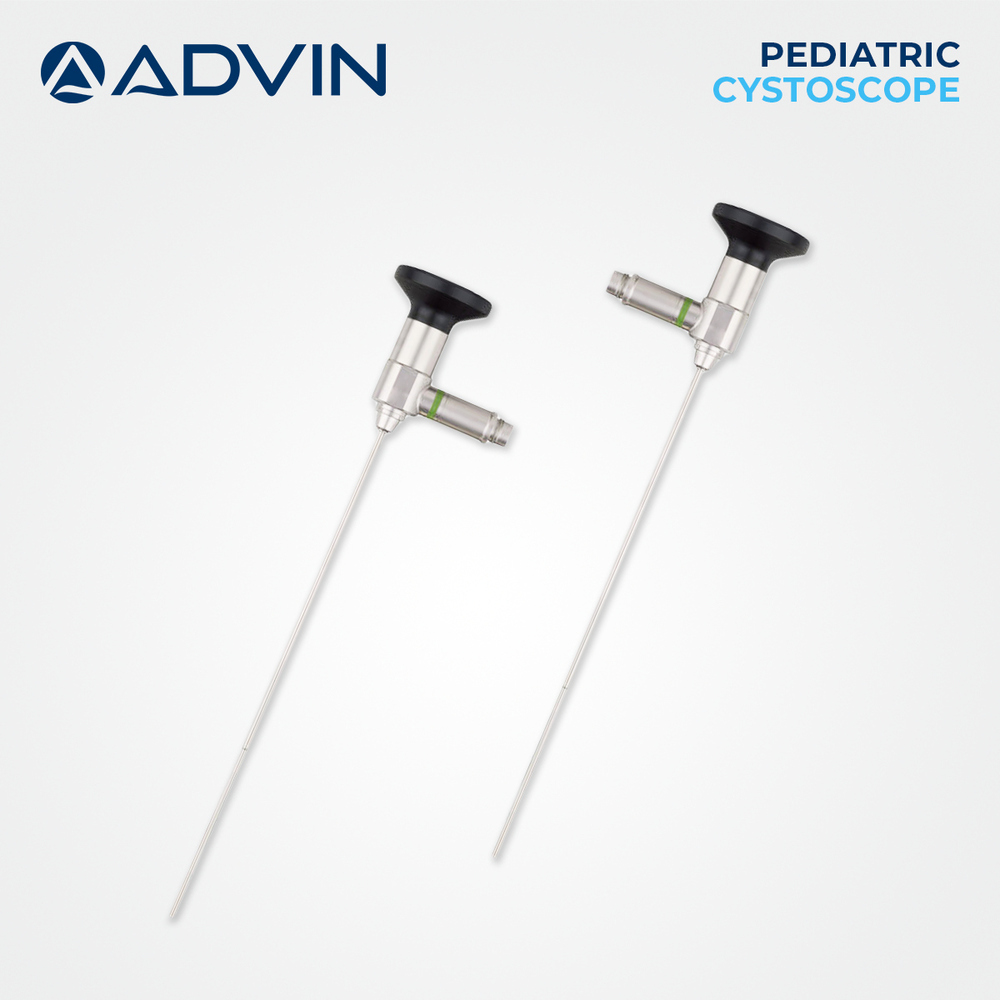

Pediatric Cystoscope Advin

Price 1900 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pediatric Cystoscope Advin Specification

Shelf Life
5 Years

Usage Type
Hospital, Clinic

Accuracy
High fidelity visualization

Features
Autoclavable, Leak-proof, Fiber-optic illumination, Compact, High-resolution visual output, Smooth insertion, Ergonomic handle

Function
Visual inspection and intervention of pediatric urinary bladder and urethra

Storage Instructions
Store in a clean, dry, and dust-free environment

Display Type
Direct vision via eyepiece; Optional video compatibility

Instruments Type
Diagnostic & Surgical

Equipment Type
Pediatric Cystoscope

Material
Medical Grade Stainless Steel & Optical Fiber

Condition
New

Technology
Rigid Endoscopy

Portable
Yes

Wall Mounted
No

Magnification Power
1.2x to 2.0x (via eyepiece and camera)

Real-Time Operation
Yes

Noise Level
Silent Operation

Operating Type
Manual

Use
For pediatric urological diagnostic and therapeutic procedures

Power Source
Not Required (For scope only); Light Source: Electrical

Power Consumption
Depends on Light Source (typically 50W-100W)

Voltage
110-240V AC (Applicable to light source unit)

Dimension (L*W*H)
Scope length: 180-280 mm; Diameter: 2.7 mm to 3.5 mm

Weight
Approx. 100-300 grams (scope only)

Color
Silver with Black and Blue Accents

Light Transmission
Integrated fiber optic channel

Working Length
180 mm to 280 mm

Angle of View
0°, 30°, or 70° options available

Compatibility
Compatible with standard camera head adapters and light cables

Field of Application
Pediatric Urology

Optical System
Multi-coated rod lens system

Sterilization Method
Autoclavable up to 134°C

Eyepiece Type
Standard wide-angle

Distal Tip Diameter
2.7 mm, 3.0 mm, 3.5 mm

About Pediatric Cystoscope Advin

Advin Health Care manufactures Pediatric Cystoscopes with precision and international quality standards to support safe and effective urological procedures in children. This device is engineered with an anti-reflective optical system and a fiber-light guide to offer direct, clear visualization. Its high-definition design ensures uniform brightness for accurate diagnostic and surgical interventions. Autoclavable construction ensures hygienic reuse, making it ideal for routine hospital use.

Advanced Features

High Definition Optical Clarity
Anti-reflective optical system for clear visualization
Fiber-light guide for direct and uniform brightness
Autoclavable and reusable for multiple procedures
Safe for use in pediatric urology

Advanced Visualization for Pediatric Urology

The Advin Pediatric Cystoscope's multi-coated rod lens system provides high-fidelity imaging crucial for pediatric urological diagnostics and interventions. Its standard wide-angle eyepiece allows for direct observation, and an integrated fiber optic channel ensures bright, clear visualization, making accurate assessment and treatment more accessible.

Versatile and Ergonomic Design

With options for 0, 30, or 70 angles of view, the cystoscope adapts to a variety of clinical needs. Compact dimensions, smooth insertion features, ergonomic handle, and a leak-proof construction help facilitate efficient and comfortable procedures for both clinicians and young patients.

Safe, Durable, and Easy Maintenance

Crafted from medical grade stainless steel and optical fiber, the scope is autoclavable up to 134C, offering excellent durability and infection control. Its silent, manual operation requires no direct power source, and it can be conveniently stored in clean, dry spaces with a shelf life of up to five years.

FAQ's of Pediatric Cystoscope Advin:

Q: How is the Advin Pediatric Cystoscope sterilized for repeated use?

A: This cystoscope is designed to be fully autoclavable up to 134C, allowing for thorough sterilization between procedures. Ensure it is properly cleaned before autoclaving to maintain optimal performance and hygiene.

Q: What are the benefits of having multiple angle of view options (0, 30, 70)?

A: The availability of different angles (0, 30, and 70) provides clinicians with enhanced flexibility to inspect various areas of the pediatric urinary bladder and urethra, aiding both diagnostic and interventional accuracy.

Q: When should I use each distal tip diameter option?

A: The choice between 2.7 mm, 3.0 mm, and 3.5 mm tips depends on patient age, anatomy, and procedural requirements. Smaller diameters are typically preferred for younger or smaller patients to minimize discomfort and ensure safe insertion.

Q: Where can the Pediatric Cystoscope be used?

A: It is suitable for hospital and clinic settings specializing in pediatric care, urology departments, and surgical units. Its portable and compact design allows for efficient use across different medical facilities.

Q: What is the process for connecting the cystoscope to a visualization system?

A: The cystoscope is compatible with standard camera head adapters and light cables. Simply attach the appropriate adapter to the eyepiece or the integrated fiber optic channel to enable direct vision or connect to a video monitoring system.

Q: How does the integrated fiber-optic system improve procedures?

A: The integrated fiber optic channel ensures bright, consistent illumination throughout procedures, significantly improving visualization and allowing clinicians to perform accurate diagnostics and treatments.

Q: What is the main usage and benefit of the Advin Pediatric Cystoscope?

A: This cystoscope is primarily used for the visual inspection and therapeutic intervention of the urinary bladder and urethra in pediatric patients, offering high-resolution imaging, ergonomic handling, and reliable performance to enhance clinical outcomes.
