USB Laparoscopy Camera

Get a Price/Quote

MOQ : 1 Piece

USB Laparoscopy Camera Specification

Storage Instructions
Keep Dry, Store at Room Temperature

Function
Laparoscopic Examination, Real-Time Video and Still Capture

Measurement Range
Micro to Macro View (Estimated 5mm 50mm Field)

Shelf Life
5 Years

Instruments Type
Surgical Camera

Features
High Definition, Plug & Play, LED Light Source, Auto White Balance, Compact Design

Frequency
50/60 Hz Compatible

Display Type
Connects to PC/Laptop (External Monitor)

Usage Type
Medical Imaging

Accuracy
High Precision Digital Output

Equipment Type
USB Laparoscopy Camera

Material
Other

Condition
New

Technology
Digital Imaging

Portable
Yes

Wall Mounted
No

Magnification Power
10x 60x (Digital Zoom)

Real-Time Operation
Yes

Noise Level
<40 dB

Operating Type
Automatic

Use
Hospital

Power Source
USB Powered

Power Consumption
< 5W

Voltage
5V DC

Dimension (L*W*H)
16 cm x 6 cm x 5 cm

Weight
Approx. 200g

Color
White/Blue

Video Resolution
1920 x 1080 (Full HD)

Image Sensor
CMOS, 1/2.7 inch

Light Source
Built-in LED (Adjustable Brightness)

Compatible Devices
Desktop, Laptop, Medical Display Units

Connectivity
USB 2.0/3.0 Interface

Frame Rate
30 fps (Max)

Waterproof Level
IPX7 (Camera Head)

Lens
F2.0 Fixed

Software Compatibility
Windows, Mac OS

Focus Type
Manual/Auto

Operating Temperature
0C 50C

USB Laparoscopy Camera Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Ahmedabad

Delivery Time
1 Week

Packaging Details
Box

Main Domestic Market
All India

Certifications
ISO / WHO GMP / CE

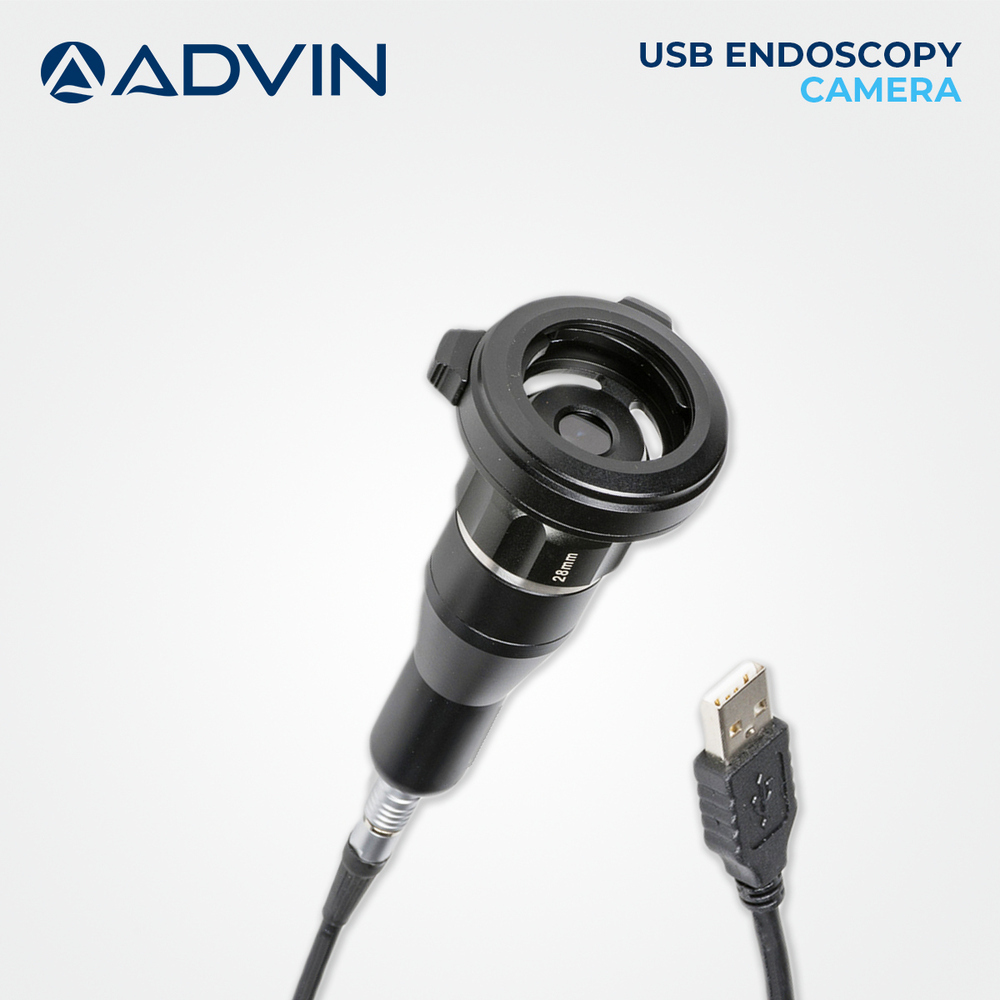

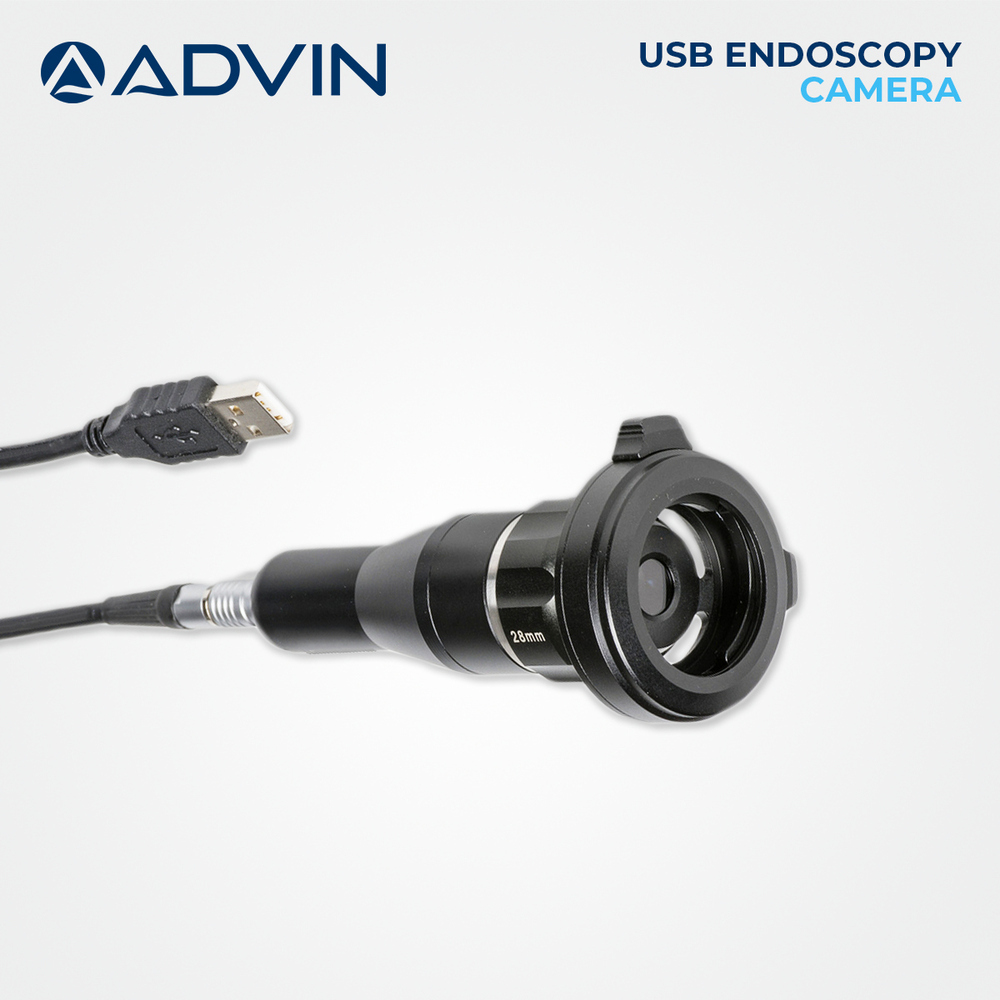

About USB Laparoscopy Camera

ADVIN USB Endoscope Camera System gives a best clear vision during all endoscopic procedures.

Advanced Features:

The original import CCD chip
Multi-output: USB, BNC, AV.
Portable and convenient
Good quality image
Attachable with all endoscope
Don't need driver.

High-Definition Digital Imaging

Equipped with a 1/2.7-inch CMOS sensor and F2.0 lens, this USB Laparoscopy Camera provides crisp, full HD visuals for accurate medical diagnostics. The digital zoom capability (10x - 60x) ensures micro to macro views for versatile surgical applications, while the adjustable LED offers superior illumination in challenging environments.

Effortless Plug & Play Connectivity

Designed for seamless integration, the camera supports both USB 2.0 and 3.0 interfaces, ensuring fast image and video transfer with minimal setup. Its plug & play feature guarantees immediate use across Windows and Mac OS operating systems, making it suitable for various clinical environments and medical display units.

Reliable Performance and Portability

Weighing approximately 200g and measuring just 16 cm x 6 cm x 5 cm, this camera is highly portable and easy to use in different hospital settings. Its IPX7 waterproof camera head, durable construction, and efficient USB-powered operation (<5W) make it reliable for everyday medical imaging. The camera offers automatic operation, high-precision digital output, and low noise levels for enhanced user experience.

FAQ's of USB Laparoscopy Camera:

Q: How do I set up the USB Laparoscopy Camera for use during medical procedures?

A: Simply connect the camera to a compatible device, such as a desktop, laptop, or medical display unit, via the USB 2.0/3.0 interface. The camera is plug & play, so it does not require additional software installation on Windows or Mac OS. Adjust the focus manually or automatically as needed, and ensure the built-in LED light is set to appropriate brightness.

Q: What are the key benefits of using this USB Laparoscopy Camera in the hospital?

A: This camera provides high-precision full HD imaging and real-time video capture, aiding accurate medical diagnostics and laparoscopic examinations. Its compact, lightweight, and portable design allows easy movement between operating rooms. The device offers adjustable brightness, high digital zoom, low power consumption, and simple setup for enhanced clinical efficiency.

Q: When should the camera head be cleaned, and how should it be stored?

A: The camera head should be cleaned and dried after every use to maintain its waterproof integrity (IPX7 level). Store the device in a dry location at room temperature to uphold its condition and ensure a shelf life of up to five years.

Q: Where can this USB Laparoscopy Camera be used within a medical facility?

A: It is designed for use in hospital environments, including operating rooms, examination rooms, or anywhere real-time laparoscopic imaging and monitoring are required. Its compatibility with various display units and computers makes it adaptable for different setups.

Q: What is the process for adjusting the camera's focus and lighting during an operation?

A: Users can select manual or automatic focus mode depending on requirements. The built-in LED light source brightness can be easily adjusted on the camera to enhance visibility and ensure clear images in varying conditions without interrupting the procedure.

Q: Why is digital zoom (10x - 60x) important for laparoscopic examinations?

A: Digital zoom enables clinicians to switch seamlessly between macro and micro views, providing detailed visualization from a field size of about 5mm up to 50mm. This flexibility enhances precision during intricate surgical tasks and improves diagnostic capabilities.
