High Pressure Inflation Device

Name: High Pressure Inflation Device
Brand: Advin Health Care
Price: 20 USD
Availability: InStock

Price 20 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

High Pressure Inflation Device Specification

Function
Controlled inflation and deflation of medical balloons

Accuracy
2% of full scale

Shelf Life
5 Years

Features
High accuracy inflation, precise pressure control, ergonomic handle, easy-to-read analog gauge

Display Type
Analog pressure gauge

Storage Instructions
Store in a cool, dry place, away from direct sunlight

Measurement Range
0 to 30 atm (0 to 441 psi)

Instruments Type
Interventional cardiology and radiology device

Usage Type
Single-use or reusable (as per model)

Equipment Type
High Pressure Inflation Device

Material
Medical grade polycarbonate, stainless steel, Polycarbonate, Stainless Steel, ABS Plastic

Condition
New, New

Technology
Manual inflation with pressure gauge

Portable
Yes

Wall Mounted
No, No

Real-Time Operation
Yes, Yes

Noise Level
Silent/non-electric

Operating Type
Manual, Manual

Use
Inflation of balloon catheters and other interventional devices

Power Source
Manual, no external power required, Manual (No Power Source Required)

Dimension (L*W*H)
Approximately 20 x 6 x 3.5 cm

Weight
Approx. 250 grams

Color
Transparent body with blue accents

Application
Cardiology, Radiology, Interventional Procedures

Operating Temperature
10C - 40C

Piston Stroke
Short, Rapid Action

Sterility
EO Sterilized

Handle Type
Ergonomic Textured Grip

Calibration
Factory Calibrated

Gauge Type
Rotatable Analog Gauge

Maximum Inflation Pressure
30 atm

Connection Type
Luer Lock

Tubing Length
120 cm (customizable)

About High Pressure Inflation Device

Advin Health Care offers High Pressure Inflation Devices designed to meet international quality standards. These devices are specifically engineered for interventional procedures requiring precise delivery of high pressure to inflate balloon catheters. They ensure accurate control, smooth operation, and reliable performance during complex angioplasty and vascular interventions.

Key Features

High-pressure capability for demanding interventional procedures
Precise pressure control for safe and effective balloon inflation
Smooth inflation and rapid deflation mechanism
Clear and accurate pressure monitoring (analog/digital options)
Ergonomic design for enhanced handling and control
Leak-proof and secure connection with catheter systems

Specifications

Type: High Pressure Inflation Device
Pressure Range: Up to 30 atm or higher (model dependent)
Volume Capacity: 2030 ml
Display: Analog gauge / Digital display
Material: Medical-grade polymer with precision-engineered components
Sterilization: EO Sterilized
Usage: Single-use / Disposable
Application: High-pressure balloon inflation in angioplasty and interventional procedures

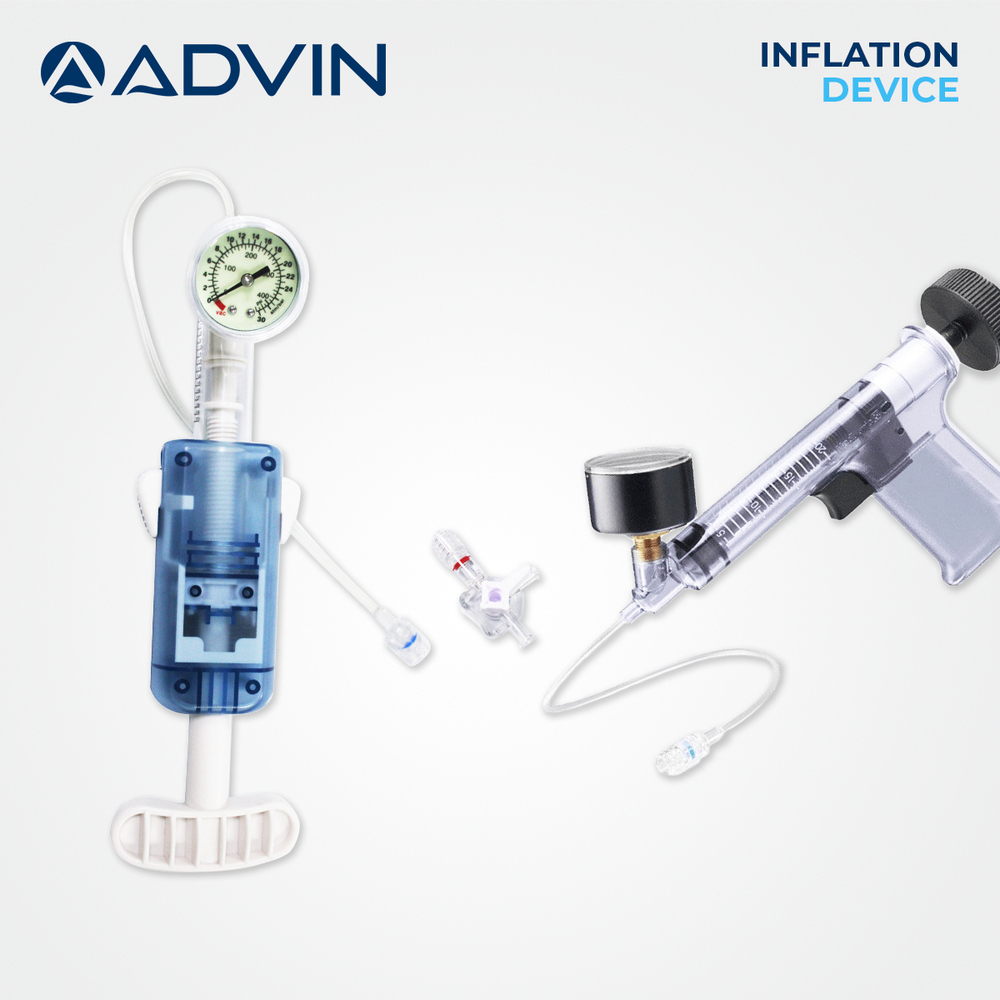

Variants Available

Standard High Pressure Device

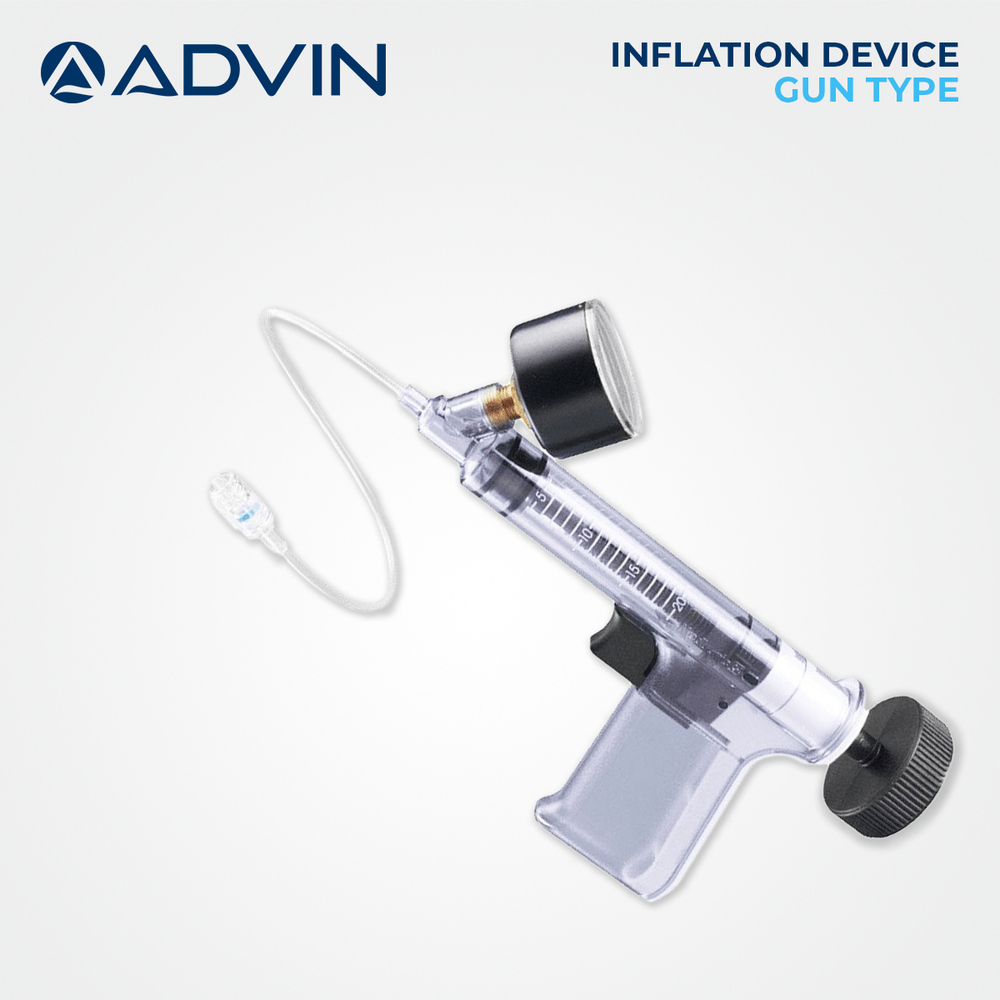

Gun Type High Pressure Device

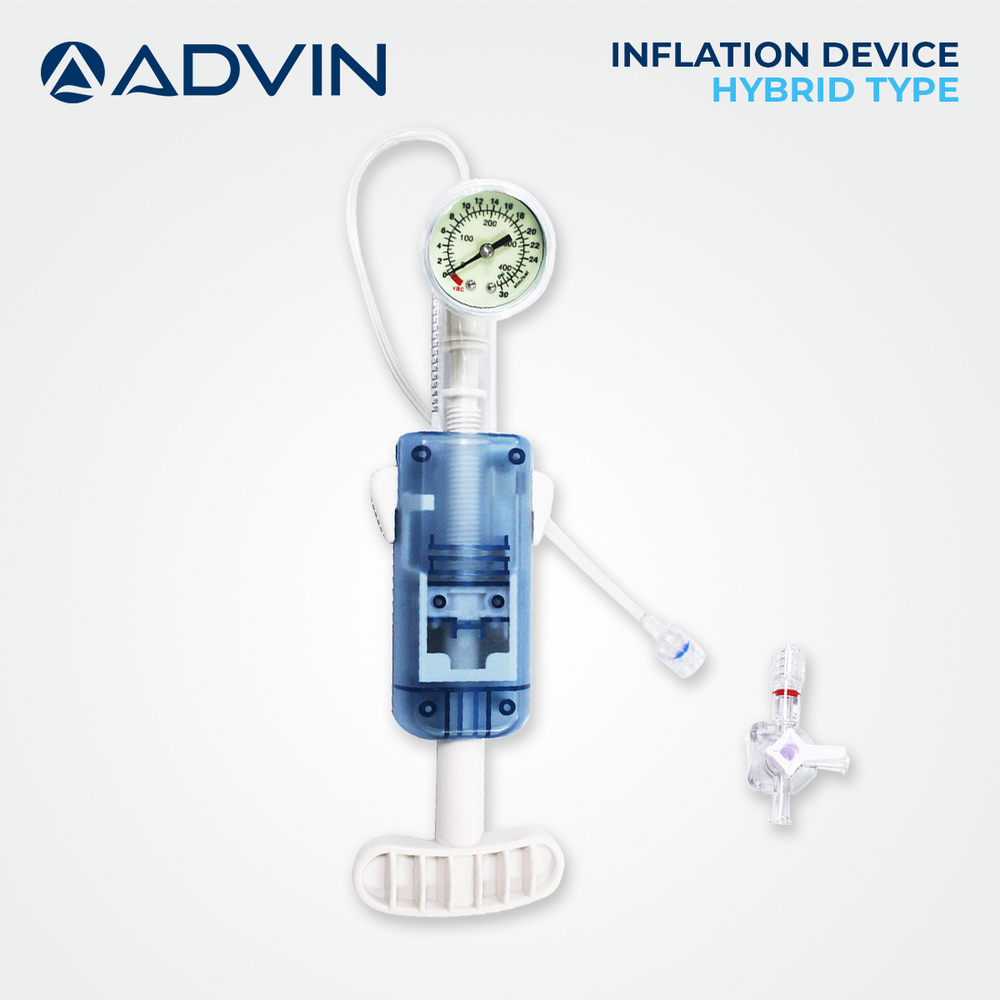

Hybrid Type High Pressure Device

Certifications
CE, ISO 13485, and ISO 9001 certified
