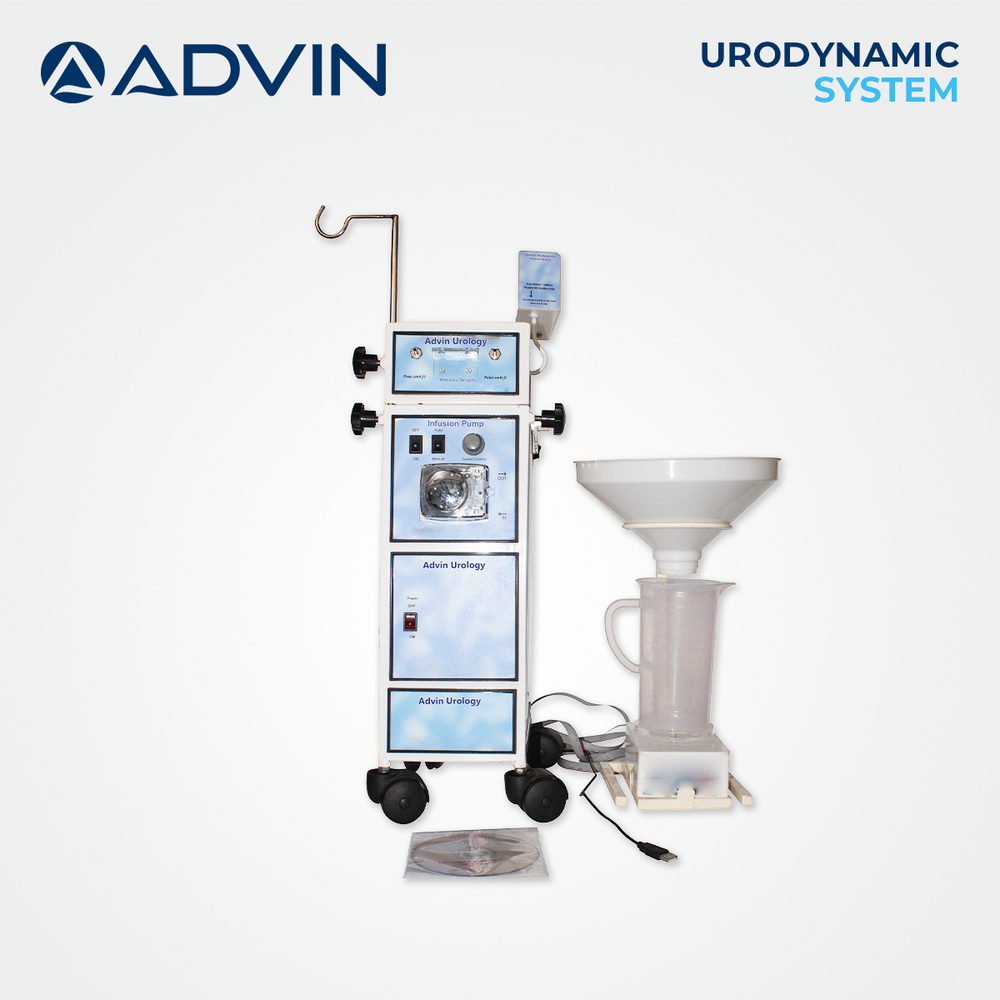

Urodynamic System Advin

Price 7900 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Urodynamic System Advin Specification

Display Type
Touch Screen LCD

Function
Measurement of bladder, urethral, and abdominal pressures

Accuracy
2% full scale

Storage Instructions
Store in cool, dry environment

Features
Multi-channel analysis, graphic display, touch screen interface

Measurement Range
0-300 cmH2O (pressure)

Instruments Type
Urodynamic Diagnostic Instrument

Frequency
50/60 Hz

Usage Type
Hospital, Clinic

Shelf Life
5 years

Equipment Type
Urodynamic System

Material
High-grade medical stainless steel and durable polymer

Condition
New

Technology
Digital Urodynamics with advanced pressure sensing

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Low (< 50 dB)

Operating Type
Automatic/Manual

Use
Urological diagnostic procedures

Power Source
Electric

Power Consumption
150 W

Voltage
220 V AC, 50/60 Hz

Dimension (L*W*H)
430 mm x 320 mm x 220 mm

Weight
8.5 kg

Color
White with Blue accents

Software
Integrated Urodynamics analysis software

Graphical Analysis
Real-time pressure/flow graphs

Maintenance
Easy replaceable parts and service access

Calibration
Automatic and manual calibration options

Patient Database Capacity
Up to 1000 patient records

Number of Channels
2-8 channels

External Device Interface
RS232/USB

Rechargeable Battery
No (mains operated)

Catheter Compatibility
Supports various size urodynamic catheters

Data Output
USB, LAN, and Printer connectivity

Safety Standard
IEC 60601 medical electrical equipment

Printer Type
Thermal Printer (optional)

Language Support
Multi-language user interface

Report Format
PDF/Print

Recording Modes
Flow, Filling, Emptying, Pressure recording

About Urodynamic System Advin

ADVIN URODYNAMIC System was highly advanced compact System Its provide complete solution for Testing. That assesses how the bladder and urethra are performing their job of storing and releasing urine.

Accurate investigation of the function of the lower urinary tract bladder & urethra using physical measurements such as bladder pressure and flow rate as well as clinical assessment.

The ultimate goal of urodynamics is to aid in the correct diagnosis of lower urinary tract dysfunction based upon its pathophysiology.

Urinary incontinence is one of the most common urinary conditions affecting people of all ages and gender with symptoms being more common in individuals over age 60.

It is known as Urodynamic System, Urodynamic Machine, Urodynamic Study Machine, Urodynamic Unit, Urodynamic Study Machine

Advanced Features:

Compact & Attractive Body.
Optional EMG module Available
user friendly software interface
wide range of testing protocols
User friendly Software.
Easy to move anywhere.
Height Adjustable Stand.
Integral isolated power distribution
User configurable studies, settings & reports
Decrease wait time for diagnostic testing & Improve patient comfort
User editable Software & Report Formats.

Advanced Urodynamic Measurement and Analysis

The Advin Urodynamic System offers precision measurement of pressures and flows in the bladder, urethra, and abdomen using advanced digital pressure sensing. Featuring automated or manual calibration, real-time graphical displays, and recording across flow, filling, emptying, and pressure modes, this system provides comprehensive analysis for specialists. Whether in large hospitals or smaller clinics, its multi-channel functionality and accurate measurements (2% full scale) ensure reliable diagnostics every time.

Designed for Versatility and Ease of Use

With its portable design, touch screen LCD, and multi-language user interface, the Advin Urodynamic System fits seamlessly into varied clinical environments. Catheter compatibility across sizes, easy-to-replace components, and efficient service access help maintain workflow continuity. Whether connecting via USB, LAN, or thermal printer (optional), medical staff experience streamlined data handling. Sturdy construction and low operating noise further guarantee dependable performance and patient comfort.

FAQs of Urodynamic System Advin:

Q: How does the Advin Urodynamic System enhance diagnostic procedures in urology?

A: The system provides real-time graphical analysis of bladder, urethral, and abdominal pressures using advanced pressure sensing technology. Its integrated software and multi-channel recording enable accurate, efficient evaluation, supporting comprehensive urological diagnostic procedures.

Q: What are the main connectivity options for data output and patient record management?

A: Data can be securely exported via USB, LAN, or printed directly using printer connectivity (including a thermal printer option). The system supports storage of up to 1000 patient records in its database and generates comprehensive PDF and printed reports for clinical documentation.

Q: When should calibration of the system be performed, and what are the available methods?

A: Calibration should be performed prior to each diagnostic session or as recommended by the manufacturer. The Advin Urodynamic System offers both automatic and manual calibration options to ensure measurement accuracy for each patient examination.

Q: Where can the Advin Urodynamic System be used, given its specifications?

A: Designed for hospitals and clinics, the systems portable build and quiet operation (<50 dB) make it suitable for a range of medical settings where urological diagnostics are conducted. Its robust construction ensures safe operation in diverse clinical environments.

Q: What is the process for using the integrated software for urodynamic analysis?

A: Users operate the touch screen LCD to select the desired recording mode (flow, filling, emptying, or pressure) and input patient information. The integrated software generates real-time pressure and flow graphs and allows storage, review, and export of results in various formats.

Q: How do the multi-channel and touch screen features benefit clinical use?

A: The systems support for 2 to 8 channels allows simultaneous measurement of multiple pressures. The touch screen LCD ensures intuitive, rapid operation, reducing training time and facilitating efficient, accurate diagnostic workflows in busy clinics or hospitals.

Q: What maintenance steps are necessary to keep the Advin Urodynamic System functioning reliably?

A: Routine maintenance includes periodic calibration, keeping the system in a cool, dry environment, and replacing accessible parts as needed. Its design ensures straightforward service access, helping minimize downtime and optimizing the systems shelf life of up to 5 years.
