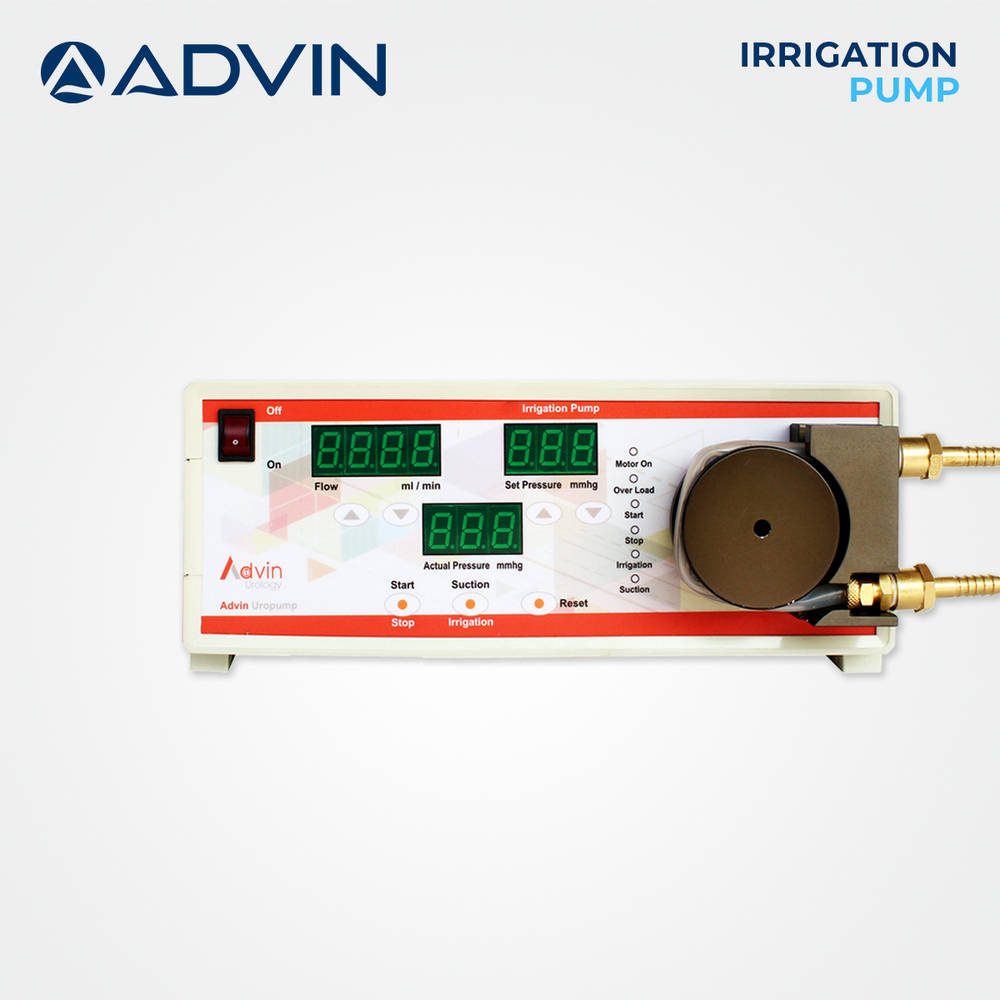

Urological Irrigation Pump

Price 1200 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Urological Irrigation Pump Specification

Features
Adjustable flow rate, digital display, overflow alarm, easy tube installation, stable operation

Function
Urological fluid irrigation

Shelf Life
N/A (Device)

Instruments Type
Urology Surgical Instrument

Frequency
50-60Hz

Storage Instructions
Store in dry, clean environment

Accuracy
High, 5%

Usage Type
Hospital/Clinical

Display Type
Digital LED Display

Measurement Range
Flow rate: 50-1500 ml/min

Equipment Type
Urological Irrigation Pump

Material
High-grade ABS Plastic and Stainless Steel

Condition
New

Technology
Peristaltic Pump Technology

Portable
Yes, with carry handle

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Low (<55dB)

Operating Type
Electric

Use
For continuous irrigation during urological endoscopic procedures

Power Source
AC Electric

Power Consumption
40W

Voltage
220V / 50Hz

Dimension (L*W*H)
Approx. 320 x 330 x 170 mm

Weight
About 6.5 kg

Color
White/Blue

Control Interface
Membrane Keypad

Power Cord Length
2 meters

Alarm System
Overflow and Tube Blockage Alarm

Irrigation Modes
Manual and Automatic

Tube Compatibility
Standard Irrigation Tubing (4-6mm)

Max Flow Pressure
300 mmHg

About Urological Irrigation Pump

The Urological Irrigation Pump is designed to provide controlled irrigation during urological procedures such as TURP, URS, and PCNL. It ensures a continuous fluid supply, which helps in maintaining clear vision for surgeons. This system improves safety, efficiency, and precision throughout the procedure.

Advanced Features

Provides steady and controlled irrigation flow
Adjustable pressure and flow settings
Improves surgical visibility and accuracy
Reduces the risk of post-operative clot formation
Compatible with multiple urological procedures
Easy-to-use and portable design

Advanced and Reliable Irrigation Technology

This Urological Irrigation Pump employs peristaltic pump technology, ensuring stable and uniform fluid delivery during surgical procedures. With high flow accuracy (5%) and a maximum pressure of 300 mmHg, it guarantees optimal irrigation performance for clinical needs. The digital LED display and adjustable flow rates allow for precise monitoring and easy control in real time.

User-Centric Design and Portability

Designed with ease of use in mind, the pump includes both manual and automatic operation modes accessible via a membrane keypad. It is compact and lightweight (approximately 6.5 kg) with a convenient carry handle, making it ideal for a range of clinical settings. The easy-to-install tube system and visually clear controls simplify preparation and use.

Safety Features for Reliable Operation

Patient and operator safety are prioritized through integrated overflow and tube blockage alarms. These features prevent inadvertent over-irrigation or system blockage. The sturdy construction from ABS plastic and stainless steel, low operational noise, and stable functioning contribute to a safe and efficient surgical environment.

FAQ's of Urological Irrigation Pump:

Q: How do I install the irrigation tubing on the Urological Irrigation Pump?

A: The pump is compatible with standard irrigation tubing of 4-6mm diameter. Simply connect the tubing to the designated inlet and outlet ports, following the labeled guides. The tube's easy installation design allows for quick setup and removal between procedures.

Q: What safety features does the pump offer during operation?

A: The system is equipped with overflow and tube blockage alarms. These alarms alert users in case of excessive fluid accumulation or tube obstruction, ensuring the device operates safely throughout the irrigation process.

Q: When should I use the manual versus automatic irrigation mode?

A: Manual mode allows the operator to control fluid flow directly, which may be beneficial for delicate procedures. Automatic mode provides consistent, predefined flow rates, making it ideal for procedures that require steady and continuous irrigation.

Q: Where is the best place to use this irrigation pump?

A: This pump is designed for use in hospital or clinical settings, specifically for urological endoscopic surgical procedures. Its portability and non-wall-mounted design offer flexibility within operating rooms and procedure suites.

Q: What benefits does the digital LED display provide?

A: The digital LED display offers real-time feedback on flow rate and irrigation parameters, allowing precise adjustments and immediate monitoring. This improves operational accuracy and efficiency during procedures.

Q: How should the device be stored when not in use?

A: Store the pump in a dry and clean environment to maintain its condition. The robust ABS and stainless steel materials offer durability, but proper storage ensures longevity and reliable future operation.
