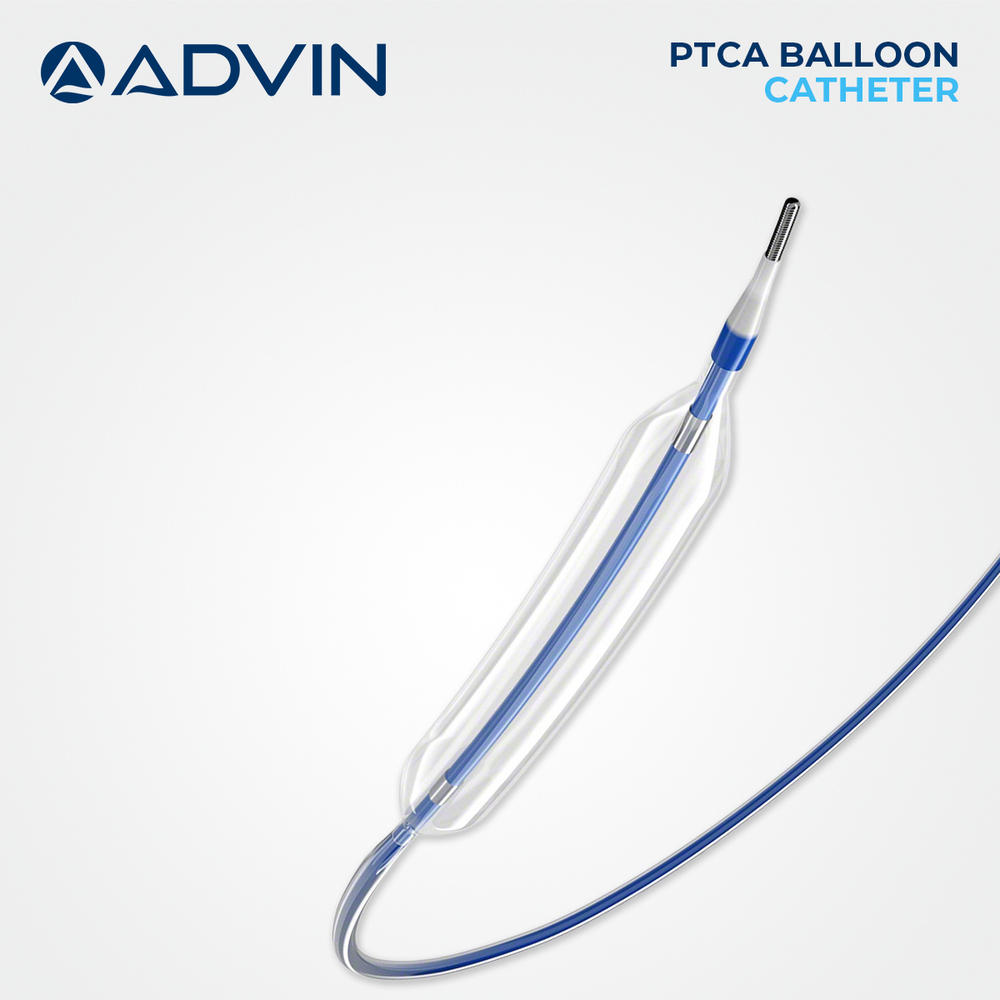

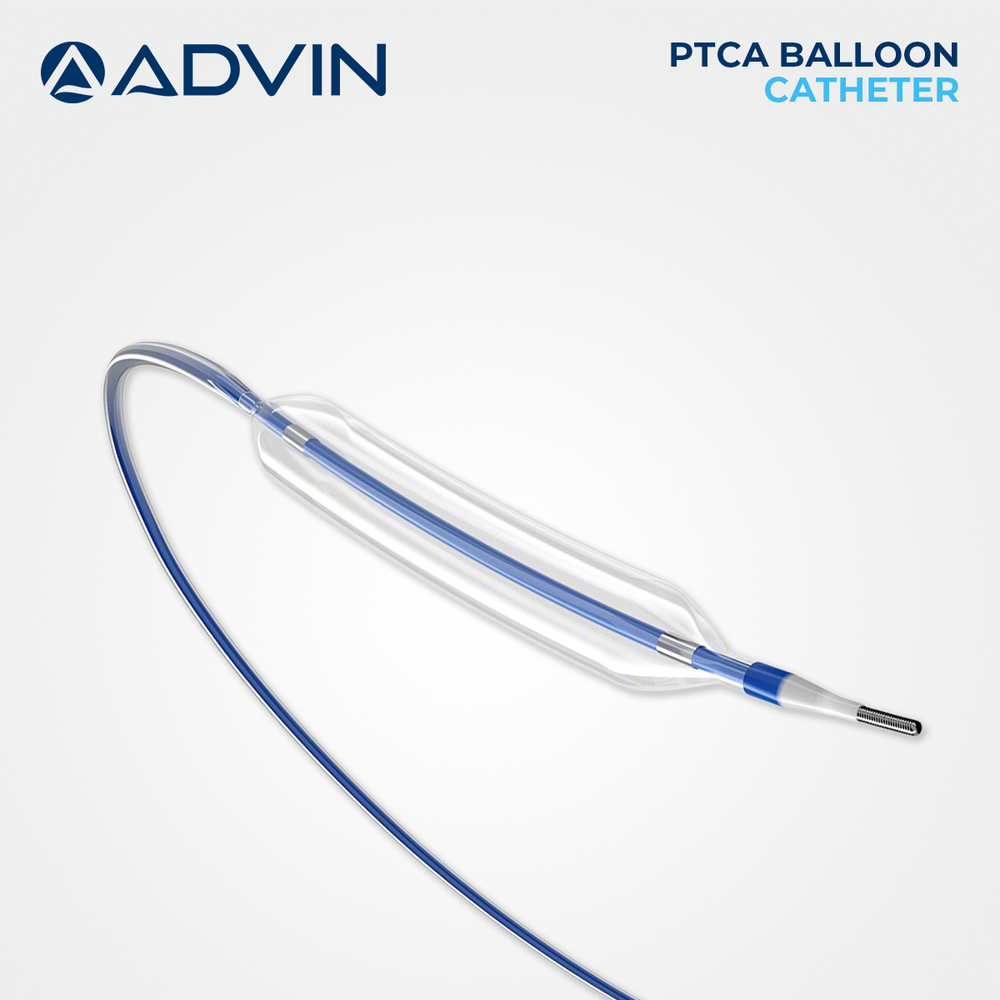

Vascular Dilation Intervention Catheters

Name: Vascular Dilation Intervention Catheters
Brand: Advin Health Care
Price: 55 USD
Availability: InStock

Price 55 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Vascular Dilation Intervention Catheters Specification

Measurement Range
Balloon diameter: 1.25mm to 5mm; balloon length: 6mm to 30mm

Instruments Type
Intervention catheter

Storage Instructions
Store in a cool, dry place

Accuracy
Precise balloon expansion to rated burst pressure

Function
Restores vascular patency by dilating stenosed blood vessels

Usage Type
Single-use, disposable

Shelf Life
Up to 3 years (unopened)

Features
High trackability, radiopaque markers, non-compliant balloon, smooth navigation

Equipment Type
Vascular Dilation Intervention Catheter

Material
Flexible medical-grade polymer

Condition
New

Technology
Balloon dilation (PTCA)

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes, used under fluoroscopic guidance

Noise Level
Silent

Operating Type
Manual

Use
Angioplasty, vascular intervention

Power Source
Not required (manual inflation)

Dimension (L*W*H)
Varies by model (e.g., length 135cm, diameter 1.25mm-5mm)

Weight
Lightweight

Color
Blue/Transparent

Hub Type
Luer lock

Radiopacity
Radiopaque markers for visualization under X-ray

Burst Pressure
Ranges from 12 atm to 20 atm (varies by balloon size/model)

Tip Design
Atraumatic, tapered tip

Balloon Material
Non-compliant PVC/Polyamide

Packaging
Individually packed in sterile pouch

Compliance Type
Non-compliant/ Semi-compliant

Catheter Length
Commonly 135 cm

Application
Percutaneous Transluminal Coronary Angioplasty (PTCA)

Sterilization
Ethylene Oxide sterilized

About Vascular Dilation Intervention Catheters

Advin Health Care is a trusted manufacturer of Vascular Dilation Intervention Catheters designed to meet international quality standards. These catheters are used in interventional cardiology and peripheral vascular procedures to dilate narrowed or obstructed vessels, restoring optimal blood flow and supporting effective treatment during angioplasty interventions.

Key Features

High-performance balloon for controlled and uniform vessel dilation
Excellent trackability for smooth navigation through vascular pathways
Flexible design for accessing complex and tortuous anatomy
Uniform pressure distribution for safe and effective expansion
Radiopaque markers for precise positioning under imaging guidance
Compatible with standard guide wires and angioplasty systems

Certifications

We are certified with CE, ISO 13485, and ISO 9001 standards.

Product Keywords

Vascular Dilation Intervention Catheter, Angioplasty Balloon Catheter, Vascular Balloon Dilatation Device, PTCA Balloon Catheter, Interventional Balloon Device, Peripheral Dilation Catheter

, , , , ,

Catter de intervencin para dilatacin vascular, catter de baln para angioplastia, dispositivo de dilatacin vascular con baln, catter de baln para PTCA, dispositivo de baln intervencionista, catter de dilatacin perifrica

Cathter d'intervention pour dilatation vasculaire, cathter ballonnet d'angioplastie, dispositif de dilatation vasculaire par ballonnet, cathter ballonnet pour angioplastie transluminale percutane (ATP), dispositif ballonnet interventionnel, cathter de dilatation priphrique

Advanced Balloon Design for Targeted Therapy

Equipped with a non-compliant/semi-compliant balloon, this catheter preserves its shape under inflation, delivering reliable dilation for stenosed blood vessels. Available in multiple sizes, the balloon ensures precise expansion and reduces the risk of unwanted vessel stretching, catering to varied clinical needs during angioplasty procedures.

Optimum Trackability and Navigation

Featuring an atraumatic, tapered tip and flexible catheter body, this intervention device offers excellent navigation through challenging vascular anatomy. The design minimizes trauma to vessels, with radiopaque markers enabling accurate placement and real-time monitoring under fluoroscopy for enhanced procedural confidence.

Safety, Sterility, and Practical Usability

Each catheter is ethylene oxide sterilized and supplied in a sealed pouch to maintain strict sterility. Its Luer lock hub ensures secure connection, while its lightweight and portable structure makes it convenient for operators. Single-use design eliminates cross-contamination risks, ensuring patient safety throughout angioplasty operations.

FAQ's of Vascular Dilation Intervention Catheters:

Q: How is the Vascular Dilation Intervention Catheter used during PTCA procedures?

A: During PTCA, the catheter is manually advanced through the vascular system to the site of stenosis under fluoroscopic guidance. Once in position, the balloon is inflated to dilate the narrowed vessel, restoring blood flow. Radiopaque markers help accurately localize the balloon throughout the procedure.

Q: What are the main benefits of using a non-compliant balloon material?

A: Non-compliant balloons maintain a consistent shape and size under high pressure, providing precise, controlled vessel dilation without excessive or uneven stretching. This lowers the risk of vessel trauma or dissection during angioplasty procedures.

Q: Where can these catheters be used, and who typically operates them?

A: These catheters are primarily used in cardiac catheterization labs and interventional radiology suites for angioplasty procedures. Trained healthcare professionals, such as interventional cardiologists or radiologists, perform the operation using manual inflation systems.

Q: When should the Vascular Dilation Intervention Catheter be disposed of?

A: The catheter is designed for single-use only and must be disposed of immediately after the procedure. Reusing the device is not recommended due to sterilization and safety standards.

Q: What is the recommended process for handling and storing the catheter before use?

A: The catheter should be stored in a cool, dry place in its original, unopened sterile pouch. Prior to use, verify the packaging is intact and check the expiration date to ensure sterility and manufacturer warranty.

Q: What is the typical range of balloon sizes and burst pressures available?

A: Balloon diameters typically range from 1.25mm to 5mm, with balloon lengths from 6mm up to 30mm. The burst pressure for these balloons ranges between 12 atm and 20 atm, depending on the specific size and model.

Q: How does radiopacity enhance the usage of this intervention catheter?

A: Radiopaque markers integrated into the balloon or catheter shaft provide clear visibility under X-ray imaging. This feature ensures precise placement and monitoring throughout the angioplasty, enhancing overall safety and procedural success.
